1. MAPK/ERK Pathway
    Apoptosis
  2. Raf
    Apoptosis
  3. GW 5074

GW 5074

Cat. No.: HY-10542 Purity: 99.49%
Handling Instructions

GW 5074 est un inhibiteur de c-Raf qui est puissant et sélectif avec IC50 de 9 nM, et n'a aucun effet sur les activités de JNK1/2/3, MEK1, MKK6/7, CDK1/2, c-Src, p38 MAP, VEGFR2 ou c-Fms.

GW 5074 is a potent and selective c-Raf inhibitor with IC50 of 9 nM, and has no effect on the activities of JNK1/2/3, MEK1, MKK6/7, CDK1/2, c-Src, p38 MAP, VEGFR2 or c-Fms.

For research use only. We do not sell to patients.

GW 5074 Chemical Structure

GW 5074 Chemical Structure

CAS No. : 220904-83-6

Size Price Stock Quantity
Free Sample (0.5-1 mg)   Apply Now
10 mM * 1 mL in DMSO USD 76 In-stock
Estimated Time of Arrival: December 31
5 mg USD 66 In-stock
Estimated Time of Arrival: December 31
10 mg USD 108 In-stock
Estimated Time of Arrival: December 31
50 mg USD 198 In-stock
Estimated Time of Arrival: December 31
100 mg USD 238 In-stock
Estimated Time of Arrival: December 31
200 mg   Get quote
500 mg   Get quote

* Please select Quantity before adding items.

Customer Review

Based on 5 publication(s) in Google Scholar

Other Forms of GW 5074:

Top Publications Citing Use of Products

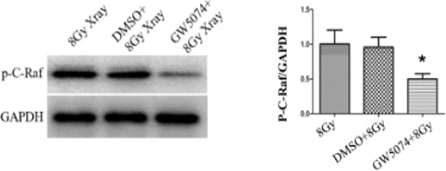

    GW 5074 purchased from MCE. Usage Cited in: Sci Rep. 2020 Jul 7;10(1):11158.

    The inhibitory efficiency of GW5074 is evaluated by Western blots with the p–C-Raf expression level in MLE-12 cells. 100 nM GW5074 dramatically reduces the phosphorylation form of C-Raf.

    View All Raf Isoform Specific Products:

    • Biological Activity

    • Protocol

    • Purity & Documentation

    • References

    • Customer Review

    Description

    GW 5074 is a potent and selective c-Raf inhibitor with IC50 of 9 nM, and has no effect on the activities of JNK1/2/3, MEK1, MKK6/7, CDK1/2, c-Src, p38 MAP, VEGFR2 or c-Fms[1][2].

    IC50 & Target

    c-Raf

    9 nM (IC50)

    In Vitro

    GW5074 is a potent and specific inhibitor of c-Raf with IC50 of 9 nM and has no effect of MKK6, MKK7, p38 MAP kinase and cdks in vitro. However, treatment of neuronal cultures with GW5074 permits accumulation of activating modifications on c-Raf and also B-Raf. The inhibition of LK-induced apoptosis by GW5074 in cerebellar granule neurons is not MEK-ERK-dependent. GW5074 delays down-regulation of Akt activity but inhibits apoptosis by an Akt-independent mechanism. GW5074 affects Ras, nuclear factor-kappa B and c-jun. GW5074 inhibits cell death caused by neurotoxins in granule cells and other neuronal types[1].

    MCE has not independently confirmed the accuracy of these methods. They are for reference only.

    In Vivo

    GW5074 (5 mg/Kg) completely prevents extensive bilateral striatal lesions induced by 3-NP in mice[1]. GW5074 suppresses sidestream smoke-induced airway hyperresponsiveness in mice[2].

    MCE has not independently confirmed the accuracy of these methods. They are for reference only.

    Molecular Weight

    520.94

    Formula

    C₁₅H₈Br₂INO₂

    CAS No.

    220904-83-6

    SMILES

    O=C1NC2=C(/C1=C/C3=CC(Br)=C(C(Br)=C3)O)C=C(C=C2)I

    Shipping

    Room temperature in continental US; may vary elsewhere.

    Storage
    Powder -20°C 3 years
    4°C 2 years
    In solvent -80°C 6 months
    -20°C 1 month
    Solvent & Solubility
    In Vitro:

    DMSO : ≥ 100 mg/mL (191.96 mM)

    *"≥" means soluble, but saturation unknown.

    Preparing
    Stock Solutions
    Concentration Solvent Mass 1 mg 5 mg 10 mg
    1 mM 1.9196 mL 9.5980 mL 19.1961 mL
    5 mM 0.3839 mL 1.9196 mL 3.8392 mL
    10 mM 0.1920 mL 0.9598 mL 1.9196 mL
    *Please refer to the solubility information to select the appropriate solvent.
    In Vivo:
    • 1.

      Add each solvent one by one:  10% DMSO    40% PEG300    5% Tween-80    45% saline

      Solubility: ≥ 2.5 mg/mL (4.80 mM); Clear solution

    *All of the co-solvents are provided by MCE.
    References
    Kinase Assay
    [1]

    Briefly, for each assay 5-10 mU of purified kinase is used. For GSK3β, cdk1, cdk2, cdk3, cdk5, the kinase is incubated with 1 μM GW5074 in a buffer containing 8 mM MOPS, pH 7.2, 0.2 mM EDTA, 10 mM magnesium acetate and [c-33P-ATP] for 40 min at room temperature. Kinase activity is quantified by measuring 33P incorporation by spotting an aliquot on P30 filters, washing in 50 mM phosphoric acid and scintillation counting. The buffer composition for c-Raf, JNK1, JNK2, JNK3, MEK1, MKK6, MKK7 is 50 mM Tris pH 7.5, 0.1 mM EGTA, 10 mM magnesium acetate and [c-33P-ATP]. The peptide substrates used are as follows: For c-Raf, 0.66 mg/mL MBP; for cdks, 0.1 mg/mL histone H1; for JNKs, 3 μM ATF2; for MEK1, 1 μM MAPK2; for MKK6, 1 μM of SAPK2a and for MKK7, 2 μM JNK1α.

    MCE has not independently confirmed the accuracy of these methods. They are for reference only.

    Cell Assay
    [1]

    Befiy, the tetrazolium salt MTT is added to the cultures at a final concentration of 1 mg/mL, and incubation of the culture is continued in the CO2 incubator for a Hirther 30 min at 37°C. The assay is stopped by adding lysis buffer [20% sodium dodecyi sulfate (SDS) in 50% N,N-dimethyl formamide, pH 4.7], The absorbance is measured spectrophotometrically at 570 nm after an ovemight incubation at room temperature. The absorbance of a well without cells is used as background and subtracted. Data are presented as mean±standard deviation. Statistical analysis is perfomied using ANOVA and Student-Neuman-Keuls' test. Besides MTT assays, viability is also quantitied using the tluorescein-diacetate method and by DAPI staining (which reveals apoptotic nuclei as condensed or fragmented). The results using these assays are similar to those obtained with the MTT assay.

    MCE has not independently confirmed the accuracy of these methods. They are for reference only.

    Animal Administration
    [1]

    The Tru-Scan® activity monitoring system is used to assess locomotor activity on mice on the day following the 5 days of injection with saline, 3-NP or a combination of 3-NP and GW5074 (7 animals in each group). The animal is placed in a Perspex arena (25.9×25.9 cm) witb infrared beams spaced at 0.6-inch intervals in the X-Y plane. The arena is also equipped with a second infrared beam system at the Z plane positioned 2.54 cm above the X-Y plane. In this system the movement of the animal is accurately assessed by interruptions in 17×17-grid system created by the infrared beams in both the X-Y and Z planes. The animal is allowed to remain in the arena for 15 min, with data collection performed during this period using the Tru Scan Line interface box and Tm Scan 99 software, operating through a Pentium PC. The following behavioral parameters are selected: (i) Total movements episodes: each movement in the flor plane is a series of coordinate changes with no rest for at least I sample interval; (ii) total movement distance: the sum of all vectored A-Y coordinate changes in the floor plane; (iii) mean velocity: the mean velocity of all X-Y coordinate change defined movements; and (iv) vertical plane entries: the total number of times any part of the animal entered the vertical plane (Z plane).

    MCE has not independently confirmed the accuracy of these methods. They are for reference only.

    References

    Purity: 99.49%

    • No file chosen (Maximum size is: 1024 Kb)
    • If you have published this work, please enter the PubMed ID.
    • Your name will appear on the site.
    • Molarity Calculator

    • Dilution Calculator

    The molarity calculator equation

    Mass (g) = Concentration (mol/L) × Volume (L) × Molecular Weight (g/mol)

    Mass   Concentration   Volume   Molecular Weight *
    = × ×

    The dilution calculator equation

    Concentration (start) × Volume (start) = Concentration (final) × Volume (final)

    This equation is commonly abbreviated as: C1V1 = C2V2

    Concentration (start) × Volume (start) = Concentration (final) × Volume (final)
    × = ×
    C1   V1   C2   V2
