NVP-BKM120 Hydrochloride (Synonyms: BKM120 hydrochloride)

Cat. No.: HY-15180 Purity: 98.01%
Handling Instructions

NVP-BKM120 Hydrochloride is a pan-class I PI3K inhibitor, with IC50 of 52 nM/166 nM/116 nM/262 nM for p110α/p110β/p110δ/p110γ, respectively.

For research use only. We do not sell to patients.
NVP-BKM120 Hydrochloride Chemical Structure

NVP-BKM120 Hydrochloride Chemical Structure

CAS No. : 1312445-63-8

Size Price Stock Quantity
Free Sample (0.5-1 mg)   Apply now
10 mM * 1 mL in DMSO USD 79 In-stock
5 mg USD 72 In-stock
10 mg USD 108 In-stock
50 mg USD 180 In-stock
100 mg USD 300 In-stock
200 mg   Get quote
500 mg   Get quote

* Please select Quantity before adding items.

Other Forms of NVP-BKM120 Hydrochloride:

    NVP-BKM120 Hydrochloride purchased from MCE. Usage Cited in: PLoS One. 2016 Jan 28;11(1):e0147682.

    CHP-212 and SK-N-AS cells are treated with indicated concentrations of AZD6244, MEK162, Everolimus or AZD8055 or combinations thereof as indicated for 1 hour. Then, cells are lysed and analysed by Western blot. Phosphorylation levels of AKT, ERK and S6 are detected by specific anti-phospho antibodies. Loading is verified by specific antibodies to total AKT, ERK and anti-tubulin.

    NVP-BKM120 Hydrochloride purchased from MCE. Usage Cited in: Oncogene. 2016 Jul 7;35(27):3607-12.

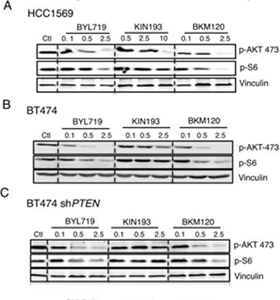

    (A) Immunoblot analyses in HCC1569 cells treated with BYL719, KIN193 (MedChemexpress) or BKM120 (μM). (B, C) Immunoblot analyses in BT474 and BT474-shPTEN cells treated as indicated in (A).

    NVP-BKM120 Hydrochloride purchased from MCE. Usage Cited in: Nat Med. 2016 Jul;22(7):723-6.

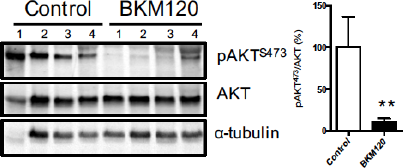

    Selective response of HER2-positive PDX DF-BM355 to the combination of BKM120/RAD001. Western blot analysis of lysates from vehicle-treated or BKM120-treated DF-BM355 in vivo.
    • Biological Activity

    • Protocol

    • Technical Information

    • Purity & Documentation

    • References


    NVP-BKM120 Hydrochloride is a pan-class I PI3K inhibitor, with IC50 of 52 nM/166 nM/116 nM/262 nM for p110α/p110β/p110δ/p110γ, respectively.

    IC50 & Target[1]


    52 nM (IC50)


    58 nM (IC50)


    99 nM (IC50)


    116 nM (IC50)


    166 nM (IC50)


    262 nM (IC50)


    2.4 μM (IC50)


    4.6 μM (IC50)

    In Vitro

    NVP-BKM120 (BKM120) exhibits 50-300 nM activity for class I PI3K’s, including the most common p110α mutants. Additionally, NVP-BKM120 exhibits lower potency against class III and class IV PI3K's, where 2, 5, >5, and >25 μM biochemical activity is observed for inhibition of VPS34, mTOR, DNAPK, and PI4K, respectively[1]. NVP-BKM120 induces multiple myeloma (MM) cell apoptosis in both dose- and time-dependent manners. NVP-BKM120 at concentrations ≥10 μM induces significant apoptosis in all tested MM cell lines at 24 h (P<0.05, compares with control). Therefore, 10 μM NVP-BKM120 and 24-h treatment are chose in in the following experiments if not stated otherwise. NVP-BKM120 treatment results in a dose-dependent growth inhibition in all tested MM cell lines. NVP-BKM120 IC50 varies among tested MM cells. At 24 h treatment, IC50 for ARP-1, ARK, and MM.1R is between 1 and 10 μM, while IC50 for MM.1S is <1 μM, and IC50 for U266 is between 10 and 100 μM. In summary, NVP-BKM120 treatment results in MM cell growth inhibition and apoptosis in dose- and time-dependent manners[2].

    In Vivo

    In A2780 xenograft tumors, oral dosing of NVP-BKM120 (BKM120) at 3, 10, 30, 60, and 100 mg/kg results in a dose dependent modulation of pAKTSer473. Partial inhibition of pAKTSer473 is observed at 3 and 10 mg/kg, and near complete inhibition is observed at doses of 30, 60, or 100 mg/kg, respectively. Inhibition of pAKT (normalized to total AKT) tracked well with both plasma and tumor drug exposure[1]. Mice receiving NVP-BKM120 (5 μM per kg per day for 15 days) treatment has significantly smaller tumor burdens as compare with control mice, which are measured as tumor volume (P<0.05) and level of circulating human kappa chain (P<0.05). In addition, NVP-BKM120 treatment significantly prolongs the survival of tumor-bearing mice (P<0.05)[2].

    Clinical Trial
    Preparing Stock Solutions
    Concentration Volume Mass 1 mg 5 mg 10 mg
    1 mM 2.2379 mL 11.1894 mL 22.3789 mL
    5 mM 0.4476 mL 2.2379 mL 4.4758 mL
    10 mM 0.2238 mL 1.1189 mL 2.2379 mL
    Please refer to the solubility information to select the appropriate solvent.
    Kinase Assay

    NVP-BKM120 to be tested is dissolved in DMSO and directly distributed into a black 384-well plate at 1.25 μL per well. To start the reaction, 25 μL of 10 nM PI3 kinase and 5 μg/mL 1-alpha-phosphatidylinositol (PI) in assay buffer (10 mM Tris pH 7.5, 5 mM MgCl2, 20 mM NaCl, 1 mM DTT and 0.05% CHAPS) are added into each well followed by 25 μL of 2 μM ATP in assay buffer. The reaction is performed until approx 50% of the ATP is depleted, and then stopped by the addition of 25 μL of KinaseGlo solution. The stopped reaction is incubated for 5 minutes and the remaining ATP is then detected via luminescence[1].
    MCE has not independently confirmed the accuracy of these methods. They are for reference only.

    Cell Assay

    NVP-BKM120 is dissolved in DMSO and stored, and then diluted with appropriate media before use[1].

    A2780 cells are cultured in DMEM supplemented with 10% FBS. L-glutamine, sodium pyruvate, and antibiotics. Cells are plated in the same medium at a density of 1000 cells per well, 100 uL per well into black-walled-clear-bottom plates and incubated for 3-5 hours. NVP-BKM120 supplied in DMSO (20 mM) are diluted further into DMSO (7.5 uL of 20 mM NVP-BKM120 in 22.5 uL DMSO. Mix well, transfer 10 uL to 20 uL DMSO, repeat until 9 concentrations have been made). The diluted NVP-BKM120 solution (2 uL), is then added to cell medium (500 uL) cell medium. Equal volumes of this solution (100 uL) are added to the cells in 96 well plates and incubated at 37ºC for 3 days and developed using Cell Titer Glo. Inhibition of cell proliferation is determined by luminescence read using Trilux[1].
    MCE has not independently confirmed the accuracy of these methods. They are for reference only.

    Animal Administration

    NVP-BKM120 is dissolved in DMSO/PBS (Mice)[2].

    Six- to eight-week-old female severe combined immunodeficiency (SCID) mice are used. SCID mice are subcutaneously inoculated in the right flank with 1 million ARP-1 or MM.1S cells suspended in 50 μL phosphate-buffered saline (PBS). After palpable tumor developed (tumor diameter ≥5 mm), mice are treated with intraperitoneal injection of DMSO/PBS or NVP-BKM120 (5 μM per kg per day) for 15 days. Tumor sizes are measured every 5 days, and blood samples are collected at the same period. Tumor burdens are evaluated by measuring tumor size and detecting circulating human kappa chain or lambda chain.
    MCE has not independently confirmed the accuracy of these methods. They are for reference only.

    Molecular Weight




    CAS No.




    Powder -20°C 3 years
      4°C 2 years
    In solvent -80°C 6 months
      -20°C 1 month

    Room temperature in continental US; may vary elsewhere

    Solvent & Solubility

    10 mM in DMSO

    * "<1 mg/mL" means slightly soluble or insoluble. "≥" means soluble, but saturation unknown.
