  3. Monomethyl auristatin E

Monomethyl auristatin E  (Synonyms: MMAE; SGD-1010; Vedotin)

Cat. No.: HY-15162 Purity: 99.97%
COA Handling Instructions

Monomethyl auristatin E (MMAE; SGD-1010) is a synthetic derivative of dolastatin 10 and functions as a potent mitotic inhibitor by inhibiting tubulin polymerization. MMAE is widely used as a cytotoxic component of antibody-drug conjugates (ADCs) to treat several different cancer types.

For research use only. We do not sell to patients.

Monomethyl auristatin E Chemical Structure

Monomethyl auristatin E Chemical Structure

CAS No. : 474645-27-7

Size Price Stock Quantity
Free Sample (0.1 - 0.5 mg)   Apply Now
5 mg USD 32 In-stock
10 mg USD 50 In-stock
50 mg USD 110 In-stock
100 mg USD 170 In-stock
250 mg USD 255 In-stock
500 mg USD 380 In-stock
1 g   Get quote
5 g   Get quote

* Please select Quantity before adding items.

This product is a controlled substance and not for sale in your territory.

Customer Review

Based on 38 publication(s) in Google Scholar

Other Forms of Monomethyl auristatin E:

Top Publications Citing Use of Products

37 Publications Citing Use of MCE Monomethyl auristatin E

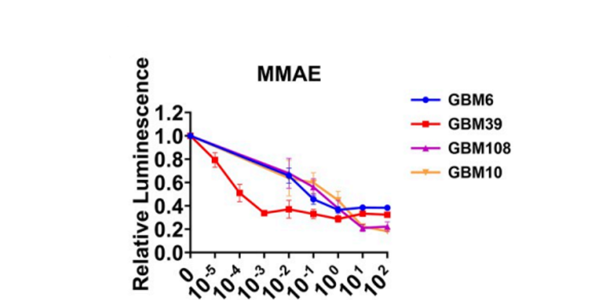

Proliferation Assay

    Monomethyl auristatin E purchased from MedChemExpress. Usage Cited in: Sci Rep. 2016 Apr 21;6:24954.  [Abstract]

    LC-MS/MS analysis quantified the MMAE concentration in the tumors 3, 24, and 72 h after the administration of MMAE alone. The contents of MMAE in the tumor tissues 3, 24, and 72 h after administration are 1155 ± 609, 736 ± 319, and 413 ± 88 fmol/g (mean ± SD, N = 5 for each group), respectively.
    • Biological Activity

    • Protocol

    • Purity & Documentation

    • References

    • Customer Review

    Description

    Monomethyl auristatin E (MMAE; SGD-1010) is a synthetic derivative of dolastatin 10 and functions as a potent mitotic inhibitor by inhibiting tubulin polymerization. MMAE is widely used as a cytotoxic component of antibody-drug conjugates (ADCs) to treat several different cancer types.

    IC50 & Target

    Auristatin



    In Vitro

    Monomethyl auristatin E (MMAE) is efficiently released from SGN-35 within CD30+ cancer cells and, due to its membrane permeability, is able to exert cytotoxic activity on bystander cells[1].
    MMAE sensitizes colorectal and pancreatic cancer cells to IR in a schedule and dose dependent manner correlating with mitotic arrest. Radiosensitization is evidenced by decreased clonogenic survival and increased DNA double strand breaks in irradiated cells[2].

    MedChemExpress (MCE) has not independently confirmed the accuracy of these methods. They are for reference only.

    In Vivo

    Monomethyl auristatin E (MMAE) in combination with IR results in tumor growth delay, tumor-targeted ACPP-cRGD-MMAE with IR produces a more robust and significantly prolongs tumor regression in xenograft models[2].

    MedChemExpress (MCE) has not independently confirmed the accuracy of these methods. They are for reference only.

    Clinical Trial
    Molecular Weight

    717.98

    Formula

    C39H67N5O7

    CAS No.
    Appearance

    Solid

    Color

    White to yellow

    SMILES

    CC(C)[C@H](NC)C(N[C@H](C(N([C@@H]([C@@H](C)CC)[C@@H](CC(N1CCC[C@@]1([H])[C@H](OC)[C@@H](C)C(N[C@H](C)[C@H](C2=CC=CC=C2)O)=O)=O)OC)C)=O)C(C)C)=O

    Shipping

    Room temperature in continental US; may vary elsewhere.

    Storage

    -20°C, sealed storage, away from moisture and light

    *The compound is unstable in solutions, freshly prepared is recommended.

    Solvent & Solubility
    In Vitro:

    Ethanol : 50 mg/mL (69.64 mM; Need ultrasonic)

    DMSO : ≥ 48 mg/mL (66.85 mM; Hygroscopic DMSO has a significant impact on the solubility of product, please use newly opened DMSO)

    H2O : < 0.1 mg/mL (insoluble)

    *"≥" means soluble, but saturation unknown.

    Preparing
    Stock Solutions
    Concentration Solvent Mass 1 mg 5 mg 10 mg
    1 mM 1.3928 mL 6.9640 mL 13.9280 mL
    5 mM 0.2786 mL 1.3928 mL 2.7856 mL
    View the Complete Stock Solution Preparation Table

    * Please refer to the solubility information to select the appropriate solvent. The compound is unstable in solutions, freshly prepared is recommended.

    • Molarity Calculator

    • Dilution Calculator

    Mass (g) = Concentration (mol/L) × Volume (L) × Molecular Weight (g/mol)

    Mass
    =
    Concentration
    ×
    Volume
    ×
    Molecular Weight *

    Concentration (start) × Volume (start) = Concentration (final) × Volume (final)

    This equation is commonly abbreviated as: C1V1 = C2V2

    Concentration (start)

    C1

    ×
    Volume (start)

    V1

    =
    Concentration (final)

    C2

    ×
    Volume (final)

    V2

    In Vivo:

    Select the appropriate dissolution method based on your experimental animal and administration route.

    For the following dissolution methods, please ensure to first prepare a clear stock solution using an In Vitro approach and then sequentially add co-solvents:
    To ensure reliable experimental results, the clarified stock solution can be appropriately stored based on storage conditions. As for the working solution for in vivo experiments, it is recommended to prepare freshly and use it on the same day.
    The percentages shown for the solvents indicate their volumetric ratio in the final prepared solution. If precipitation or phase separation occurs during preparation, heat and/or sonication can be used to aid dissolution.

    • Protocol 1

      Add each solvent one by one:  5% DMSO    40% PEG300    5% Tween-80    50% Saline

      Solubility: 2.62 mg/mL (3.65 mM); Clear solution; Need ultrasonic

    • Protocol 2

      Add each solvent one by one:  5% DMSO    95% (20% SBE-β-CD in Saline)

      Solubility: ≥ 2.62 mg/mL (3.65 mM); Clear solution

    In Vivo Dissolution Calculator
    Please enter the basic information of animal experiments:

    Dosage

    mg/kg

    Animal weight
    (per animal)

    g

    Dosing volume
    (per animal)

    μL

    Number of animals

    Recommended: Prepare an additional quantity of animals to account for potential losses during experiments.
    Please enter your animal formula composition:
    %
    DMSO +
    +
    %
    Tween-80 +
    %
    Saline
    Recommended: Keep the proportion of DMSO in working solution below 2% if your animal is weak.
    The co-solvents required include: DMSO, . All of co-solvents are available by MedChemExpress (MCE). , Tween 80. All of co-solvents are available by MedChemExpress (MCE).
    Calculation results:
    Working solution concentration: mg/mL
    Method for preparing stock solution: mg drug dissolved in μL  DMSO (Stock solution concentration: mg/mL).

    *The compound is unstable in solutions, freshly prepared is recommended.

    The concentration of the stock solution you require exceeds the measured solubility. The following solution is for reference only. If necessary, please contact MedChemExpress (MCE).
    Method for preparing in vivo working solution for animal experiments: Take μL DMSO stock solution, add μL . μL , mix evenly, next add μL Tween 80, mix evenly, then add μL Saline.
     If the continuous dosing period exceeds half a month, please choose this protocol carefully.
    Please ensure that the stock solution in the first step is dissolved to a clear state, and add co-solvents in sequence. You can use ultrasonic heating (ultrasonic cleaner, recommended frequency 20-40 kHz), vortexing, etc. to assist dissolution.
    Purity & Documentation

    Purity: 99.97%

    References
    Cell Assay
    [2]

    Monomethyl auristatin E (MMAE, 5 nM) and ionizing radiation (IR) treated cells are harvested and lysed in RIPA buffer with protease and phosphatase inhibitors. Thirty μg of lysate undergo electrophoresis using 4-12% Bis-Tris gels, transferred to PVDF membranes and incubated with indicated primary antibodies. Blots are developed by ECL.

    MCE has not independently confirmed the accuracy of these methods. They are for reference only.

    Animal Administration
    [2]

    Mice[2]
    6-8 week old female athymic nu/nu mice are injected subcutaneously into thighs with 5×106 HCT-116 or PANC-1 cells in a 1:1 Matrigel and PBS solution. Mice are treated with IR or intravenous (IV) injection of ACPP-cRGD-MMAE (6 nmoles/day, 18 nmoles total, i.v.), tumor tissue is harvested, formalin fixed and paraffin embedded followed by staining with indicated antibodies. The primary antibody is used at a 1:250 dilution and is visualized using DAB as a chromagen with the UltraMap system.

    MCE has not independently confirmed the accuracy of these methods. They are for reference only.

    References

    Complete Stock Solution Preparation Table

    * Please refer to the solubility information to select the appropriate solvent. The compound is unstable in solutions, freshly prepared is recommended.

    Optional Solvent Concentration Solvent Mass 1 mg 5 mg 10 mg 25 mg
    DMSO / Ethanol 1 mM 1.3928 mL 6.9640 mL 13.9280 mL 34.8199 mL
    5 mM 0.2786 mL 1.3928 mL 2.7856 mL 6.9640 mL
    10 mM 0.1393 mL 0.6964 mL 1.3928 mL 3.4820 mL
    15 mM 0.0929 mL 0.4643 mL 0.9285 mL 2.3213 mL
    20 mM 0.0696 mL 0.3482 mL 0.6964 mL 1.7410 mL
    25 mM 0.0557 mL 0.2786 mL 0.5571 mL 1.3928 mL
    30 mM 0.0464 mL 0.2321 mL 0.4643 mL 1.1607 mL
    40 mM 0.0348 mL 0.1741 mL 0.3482 mL 0.8705 mL
    50 mM 0.0279 mL 0.1393 mL 0.2786 mL 0.6964 mL
    60 mM 0.0232 mL 0.1161 mL 0.2321 mL 0.5803 mL
