  6. 4-1BB/TNFRSF9 Protein, Mouse (HEK293, Fc, solution)

4-1BB/TNFRSF9 Protein, Mouse (HEK293, Fc, solution)

Cat. No.: HY-P7447
COA Handling Instructions

4-1BB (CD137; TNFRSF9), a receptor of TNFSF9/4-1BBL, belongs to the tumor necrosis factor (TNF) receptor superfamily. 4-1BB is helpful for T cell activation and development, and also induces peripheral mononuclear cell proliferation and migration to the tumor microenvironment. 4-1BB is also involved in enhancing Nrf2 and NF-κB pathway mediated apoptosis of endothelial cells. Mouse 4-1BB protein is a surface glycoprotein with a transmembrane domain (188-208 a.a.). 4-1BB/TNFRSF9 Protein, Mouse (HEK293, Fc, solution) is the extracellular part (V24-L187) of 4-1BB protein, produced by HEK293 cells with C-terminal Fc-tag.

For research use only. We do not sell to patients.

Protein Expression Service

Size Price Stock Quantity
10 μg $90 In-stock
50 μg $250 In-stock
100 μg   Get quote

* Please select Quantity before adding items.

Top Publications Citing Use of Products

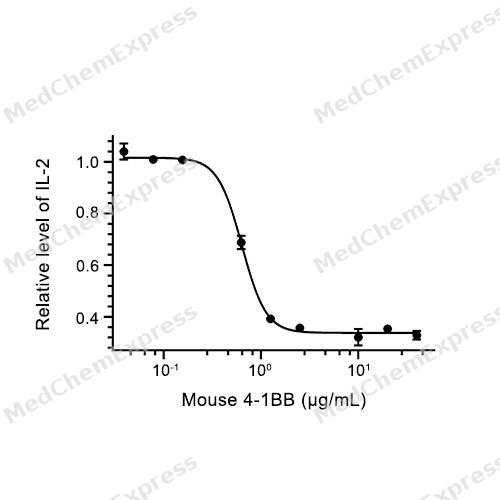

  • Biological Activity

  • Technical Parameters

  • Properties

  • Documentation

  • References

Description

4-1BB (CD137; TNFRSF9), a receptor of TNFSF9/4-1BBL, belongs to the tumor necrosis factor (TNF) receptor superfamily[1]. 4-1BB is helpful for T cell activation and development, and also induces peripheral mononuclear cell proliferation and migration to the tumor microenvironment[2]. 4-1BB is also involved in enhancing Nrf2 and NF-κB pathway mediated apoptosis of endothelial cells[3]. Mouse 4-1BB protein is a surface glycoprotein with a transmembrane domain (188-208 a.a.). 4-1BB/TNFRSF9 Protein, Mouse (HEK293, Fc, solution) is the extracellular part (V24-L187) of 4-1BB protein, produced by HEK293 cells with C-terminal Fc-tag.

Background

4-1BB, is encoded by TNFRSF9 (CD137, ILA), belongs to tumor necrosis factor (TNF) receptor superfamily. 4-1BB is a surface glycoprotein, expressed in a variety of cells, for example, T cells, B cells, natural killer (NK) cells, dendritic (DCs), eosinophils, and mast cells; even a variety of tumor cells such as human leukemia cells. It is widely spread in vascular smooth muscles, tumor vessel walls, and liver tissue of hepatocellular carcinoma. 4-1BB has a preference on CD8+ cells rather than CD4+ cells. It provides co-stimulatory signals and activates cytotoxic effects of CD8+ T cells and helps to form memory T cells. Finally, it promotes the immune system fighting against tumors. Moreover, CD137 binds CD137L to signal monocytes, increase their survival, proliferation and stimulate their migration and extravasation. In addition, it induces the release of various proinflammatory factors, leads to the influx of inflammatory monocytes into tissues and form an inflammatory environment[1]. Specifically, CD137 promotes the migration of monocytes/macrophages to tumor microenvironment by upregulating the expression of Fra1. It also promoted the differentiation of monocytes/macrophages into osteoclasts at the same time, thus providing a favorable microenvironment for the colonization and growth of breast cancer cells in bone. It provides a promising therapeutic strategy for metastasis of breast cancer[2]. Furthermore, CD137 signaling promotes endothelial cells (ECs) apoptosis through prooxidative and proinflammatory mechanisms, mediated by Nrf2 and NF-κB pathways, respectively[3]. The homology of 4-1BB protein in human and mouse was low, and the sequence similarity was 56.75%.

In Vitro

4-1BB (hamster ovary; 5 μg/mL; 16 h) costimulates B lymphocyte proliferation[4].

Species

Mouse

Source

HEK293

Tag

C-Fc

Accession

P20334 (V24-L187)

Gene ID

21942  [NCBI]

Molecular Construction
N-term
4-1BB (V24-L187)
Accession # P20334
Fc
C-term
Synonyms
rMu4-1BB/TNFRSF9, C-Fc; CD137; 4-1 BB; TNFRSF-9
AA Sequence

VQNSCDNCQPGTFCRKYNPVCKSCPPSTFSSIGGQPNCNICRVCAGYFRFKKFCSSTHNAECECIEGFHCLGPQCTRCEKDCRPGQELTKQGCKTCSLGTFNDQNGTGVCRPWTNCSLDGRSVLKTGTTEKDVVCGPPVVSFSPSTTISVTPEGGPGGHSLQVL

Molecular Weight

60-70 kDa

Purity

Greater than 90% as determined by reducing SDS-PAGE.

Appearance

Solution.

Formulation

Supplied as a 0.2 μm filter solution of 20 mM PB, 150 mM NaCl, pH 7.4.

Endotoxin Level

<1 EU/μg, determined by LAL method.

Storage & Stability

Stored at -80°C for 1 year. It is stable at -20°C for 3 months after opening. It is recommended to freeze aliquots at -80°C for extended storage. Avoid repeated freeze-thaw cycles.

Shipping

Shipping with dry ice.

Documentation
References
Help & FAQs
  • Do most proteins show cross-species activity?

    Species cross-reactivity must be investigated individually for each product. Many human cytokines will produce a nice response in mouse cell lines, and many mouse proteins will show activity on human cells. Other proteins may have a lower specific activity when used in the opposite species.

  • Reconstitution Calculator

  • Dilution Calculator

  • Specific Activity Calculator

The reconstitution calculator equation

Volume (to add to vial) = Mass (in vial) ÷ Desired Reconstitution Concentration

Volume (to add to vial) = Mass (in vial) ÷ Desired Reconstitution Concentration
= ÷

The dilution calculator equation

Concentration (start) × Volume (start) = Concentration (final) × Volume (final)

This equation is commonly abbreviated as: C1V1 = C2V2

Concentration (start) × Volume (start) = Concentration (final) × Volume (final)
× = ×
C1   V1   C2   V2

The specific activity calculator equation

Specific Activity (Unit/mg) = 106 ÷ Biological Activity (ED50)

Specific Activity (Unit/mg) = 106 ÷ Biological Activity (ED50)
Unit/mg = 106 ÷ ng/mL
