1. Immunology/Inflammation
  2. NOD-like Receptor (NLR)
  3. CY-09


Cat. No.: HY-103666 Purity: >98.0%
Handling Instructions

CY-09 is an NLRP3 inhibitor.

For research use only. We do not sell to patients.

CY-09 Chemical Structure

CY-09 Chemical Structure

CAS No. : 1073612-91-5

Size Price Stock Quantity
10 mM * 1 mL in DMSO USD 112 In-stock
Estimated Time of Arrival: December 31
1 mg USD 60 In-stock
Estimated Time of Arrival: December 31
5 mg USD 120 In-stock
Estimated Time of Arrival: December 31
10 mg USD 190 In-stock
Estimated Time of Arrival: December 31
50 mg USD 760 In-stock
Estimated Time of Arrival: December 31
100 mg USD 1300 In-stock
Estimated Time of Arrival: December 31
200 mg   Get quote
500 mg   Get quote

* Please select Quantity before adding items.

Customer Review

Based on 1 publication(s) in Google Scholar

Top Publications Citing Use of Products
  • Biological Activity

  • Protocol

  • Purity & Documentation

  • References

  • Customer Review


CY-09 is an NLRP3 inhibitor.

IC50 & Target


In Vitro

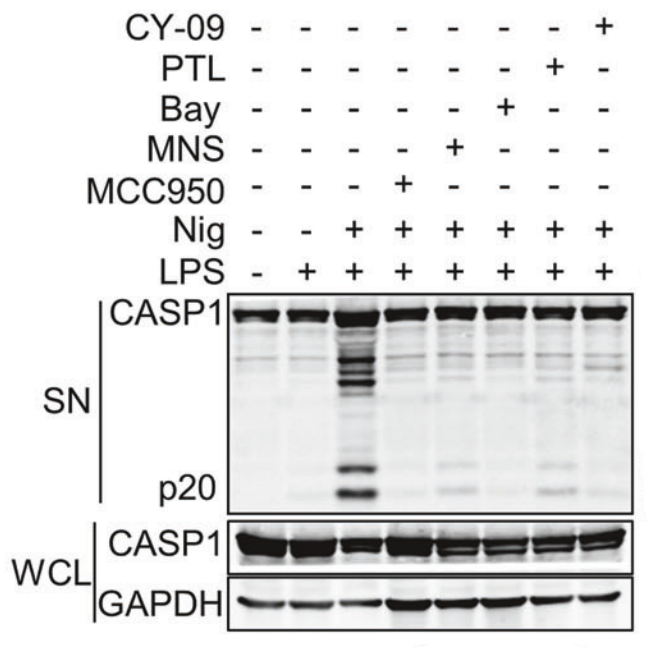

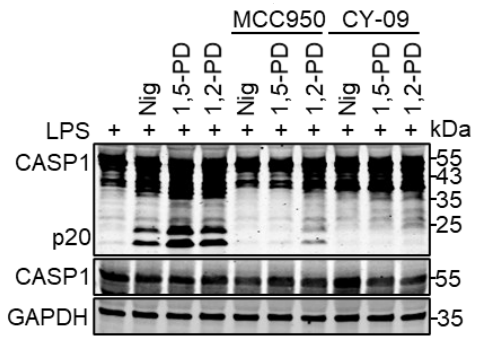

CY-09 exhibits a dose-dependent inhibitory effect on monosodium urate (MSU), nigericin, ATP-induced caspase-1 activation and IL-1β secretion at the doses of 1 to10 µM in LPS-primed bone marrow-derived macrophages (BMDMs). Cytosolic LPS-induced noncanonical NLRP3 activation in BMDMs can also be blocked by CY-09 treatment. CY-09 specifically inhibits NLRP3 inflammasome activation and has no effect on LPS-induced priming effects. CY-09 treatment remarkably suppresses nigericin-induced ASC oligomerization. It is found that CY-09 treatment inhibits the interaction of Flag-NLRP3 and mCherry-NLRP3 in HEK-293T cells, suggesting that CY-09 blocks NLRP3 oligomerization[1].

In Vivo

CY-09 treatment in vivo efficiently suppresses monosodium urate (MSU) injection-induced IL-1β production and neutrophil influx, suggesting that CY-09 can block MSU-induced NLRP3 inflammasome activation in vivo. CY-09 treatment also increases the survival of NLRP3 mutant mice up to days 30 to 48 even after treatment is stopped at day 25. The caspase-1 cleavage observed in adipose tissue of high-fat diet (HFD)-treated mice is also suppressed by CY-09[1].

Molecular Weight









Room temperature in continental US; may vary elsewhere

Powder -20°C 3 years
  4°C 2 years
In solvent -80°C 6 months
  -20°C 1 month
Solvent & Solubility
In Vitro:

DMSO : ≥ 150 mg/mL (354.25 mM)

*"≥" means soluble, but saturation unknown.

Stock Solutions
Concentration Solvent Mass 1 mg 5 mg 10 mg
1 mM 2.3617 mL 11.8083 mL 23.6167 mL
5 mM 0.4723 mL 2.3617 mL 4.7233 mL
10 mM 0.2362 mL 1.1808 mL 2.3617 mL
*Please refer to the solubility information to select the appropriate solvent.
In Vivo:
  • 1.

    Add each solvent one by one:  10% DMSO    40% PEG300    5% Tween-80    45% saline

    Solubility: ≥ 2.5 mg/mL (5.90 mM); Clear solution

  • 2.

    Add each solvent one by one:  10% DMSO    90% corn oil

    Solubility: ≥ 2.5 mg/mL (5.90 mM); Clear solution

*All of the co-solvents are provided by MCE.
Kinase Assay

For ATPase activity assay, purified recombinant human proteins are incubated at 37°C with indicated concentrations of CY-09 for 15 min in the reaction buffer. ATP (25 µm) is then added, and the mixture is further incubated at 37°C for another 40 min. The amount of ATP converted into adenosine diphosphate (ADP) is determined by luminescent ADP detection with ADP-Glo Kinase Assay kit according to the manufacturer’s protocol. The results are expressed as percentage of residual enzyme activity to the vehicle-treated enzyme. For ATP binding assay, purified NLRP3 proteins are incubated with ATP binding agarose for 1 h and then different concentrations of CY-09 are added and incubated for 2 h with motion at 4°C. Beads are washed and boiled in loading buffer. Samples are subjected to immunoblotting analysis[1].

MCE has not independently confirmed the accuracy of these methods. They are for reference only.

Cell Assay

To induce NLRP3 inflammasome activation, 5×105/mL BMDMs and 6×106/mL PBMCs are plated in 12-well plates. The following morning, the medium is replaced, and cells are stimulated with 50 ng/mL LPS or 400 ng/mL Pam3CSK4 (for noncanonical inflammasome activation) for 3 h. After that, CY-09 or other inhibitors are added into the culture for another 30 min, and then the cells are stimulated for 4 h with monosodium urate (MSU) (150 µg/mL), Salmonella typhimurium (multiplicity of infection) or for 30 min with ATP (2.5 mM) or nigericin (10 µM). Cells are transfected with poly(dA:dT) (0.5 µg/mL) for 4 h or LPS (500 ng/mL) overnight. Cell extracts and precipitated supernatants are analyzed by immunoblot[1].

MCE has not independently confirmed the accuracy of these methods. They are for reference only.

Animal Administration

WT or Nlrp3−/− mice at the age of 6 wk, with similar plasma glucose levels and body weights are randomized into different groups. For generation of high-fat diet (HFD)-induced diabetic mice, mice are fed with HFD for 14 wk. The diabetic mice are treated with CY-09 (i.p.) at a dose of 2.5 mg/kg once a day for 6 wk. The mice are maintained with HFD when used for CY-09 treatment and the subsequent experiments[1].

MCE has not independently confirmed the accuracy of these methods. They are for reference only.

  • No file chosen (Maximum size is: 1024 Kb)
  • If you have published this work, please enter the PubMed ID.
  • Your name will appear on the site.
  • Molarity Calculator

  • Dilution Calculator

The molarity calculator equation

Mass (g) = Concentration (mol/L) × Volume (L) × Molecular Weight (g/mol)

Mass   Concentration   Volume   Molecular Weight *
= × ×

The dilution calculator equation

Concentration (start) × Volume (start) = Concentration (final) × Volume (final)

This equation is commonly abbreviated as: C1V1 = C2V2

Concentration (start) × Volume (start) = Concentration (final) × Volume (final)
× = ×
C1   V1   C2   V2
