1. Metabolic Enzyme/Protease
  2. RAR/RXR
  3. AM580

AM580 (Synonyms: CD336; NSC608001; Ro 40-6055)

Cat. No.: HY-10475 Purity: 99.41%
Handling Instructions

AM580 is a selective RARα agonist with IC50 and EC50 of 8 nM and 0.36 nM, respectively.

For research use only. We do not sell to patients.

AM580 Chemical Structure

AM580 Chemical Structure

CAS No. : 102121-60-8

Size Price Stock Quantity
Free Sample (0.5-1 mg)   Apply now
10 mM * 1 mL in DMSO USD 92 In-stock
Estimated Time of Arrival: December 31
5 mg USD 84 In-stock
Estimated Time of Arrival: December 31
10 mg USD 114 In-stock
Estimated Time of Arrival: December 31
50 mg USD 456 In-stock
Estimated Time of Arrival: December 31
100 mg   Get quote
200 mg   Get quote

* Please select Quantity before adding items.

Customer Review

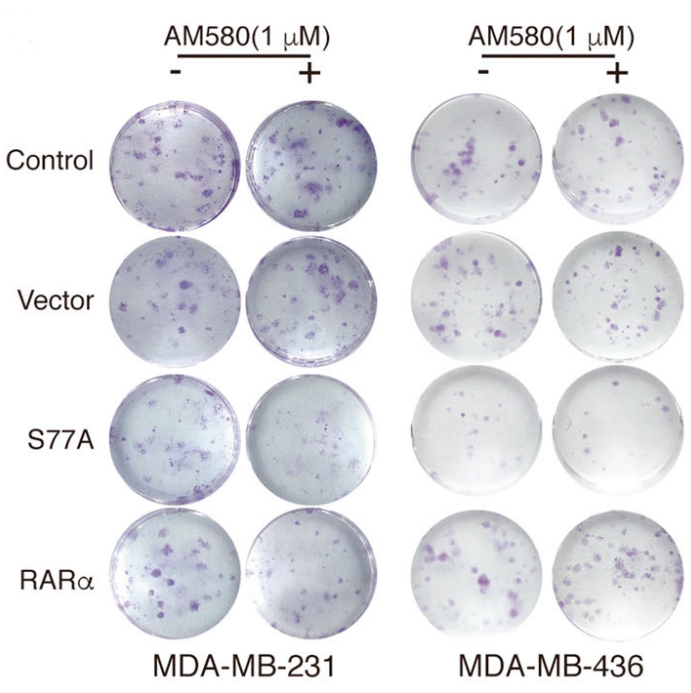

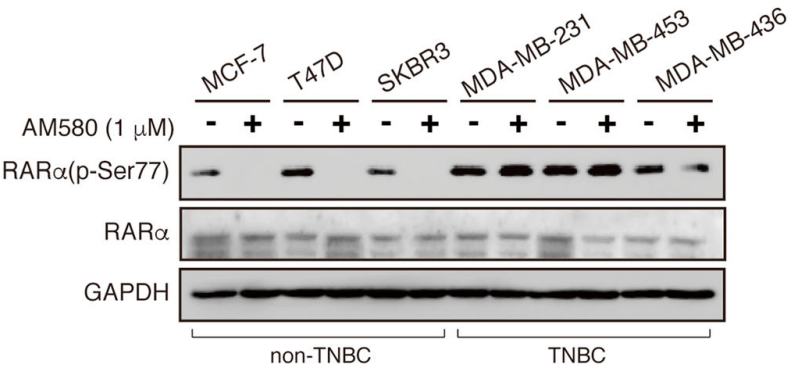

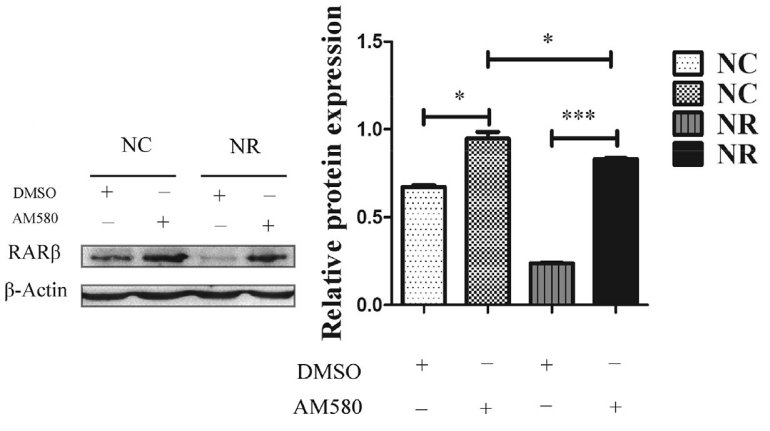

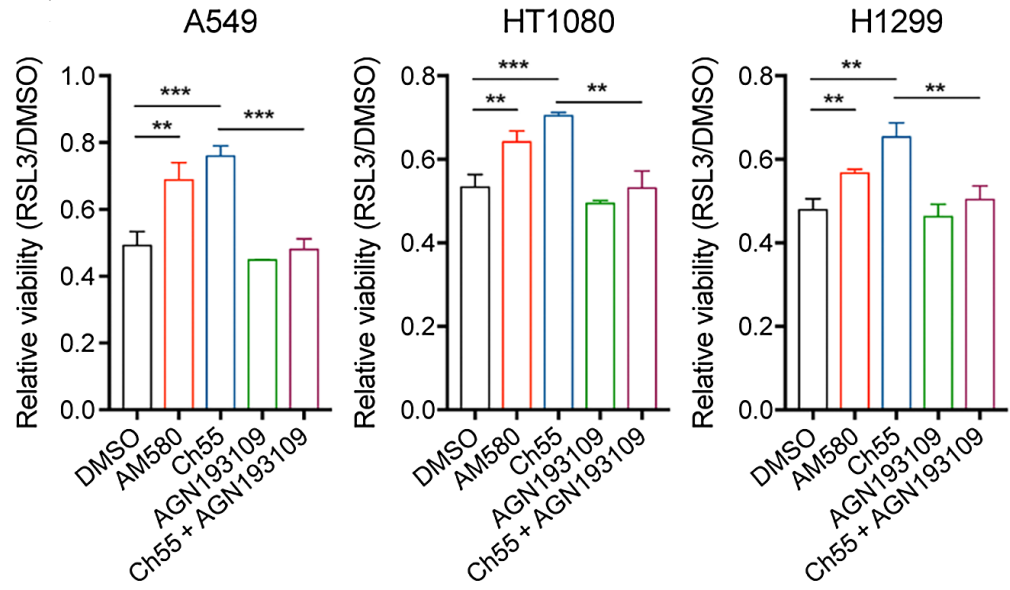

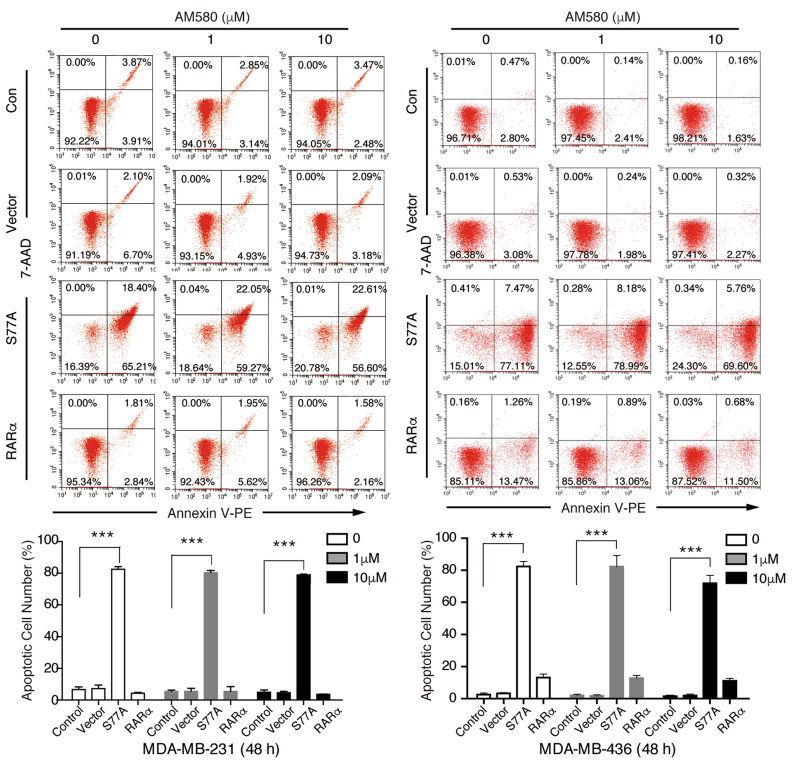

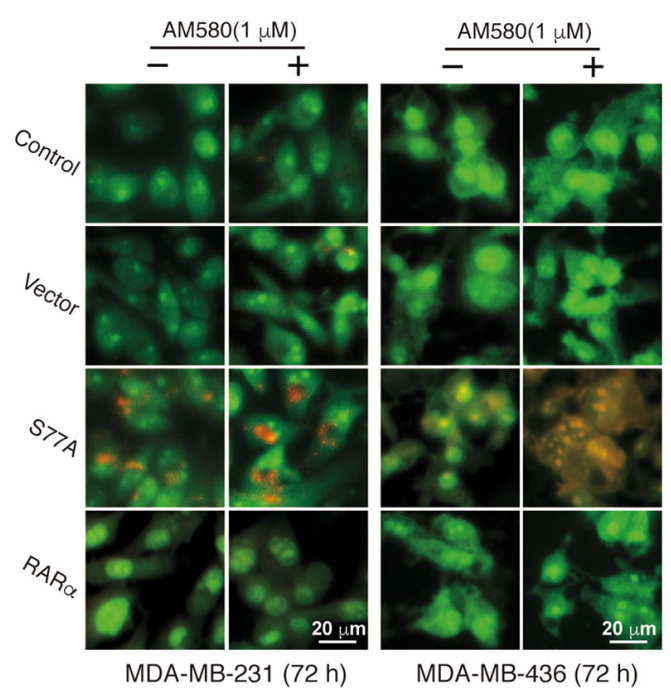

Based on 1 publication(s) in Google Scholar

Top Publications Citing Use of Products
  • Biological Activity

  • Protocol

  • Purity & Documentation

  • References

  • Customer Review


AM580 is a selective RARα agonist with IC50 and EC50 of 8 nM and 0.36 nM, respectively.

In Vitro

In the presence of G-CSF, AM580 (at 10-8 M) produces a remarkable induction in LAP mRNA of NB4 cells. At a concentration of 10-5 M, AM580 and ATRA, in combination with G-CSF, induce almost the same level of LAP transcript. AM580 (at 10-8 M) leads to an approximately sixfold increase in the steady-state levels of the transcript coding for the G-CSF receptor in NB4 cells[1]. AM580 (50 nM) increases caspase-3 expression in all of the colonies, and in 30% of the colonies induce acinar-like cavitation[2]. Knockdown of RARγ1 in primary Myc cells using shRARγ1 followed by Am580 treatment results in an even higher level of CRBP1 expression, showing that in these cells RARγ has a repressive effect on the RARα target gene CRBP1. Am580 (200 nM) enhances the anti-proliferative effect exhibited by RARγ knockdown in the MCF-10A and MCF-7 cell lines but not in the MDA-MB-231 cells[3].

In Vivo

Am580 (0.3 mg/kg/day) treatment has a more profound effect on tumor-free survival of MMTV-wnt1 mice, the effect being noticeable even in early appearing tumors, and no overt toxicity is found in liver, lungs, kidney, and spleen. Am580 treatment reduces substantially and equally the level of hyperplasia in both transgenic glands[2]. Treatment of MMTV-Myc mice with the RARα-selective agonist Am580 leads to significant inhibition of mammary tumor growth, lung metastasis and extends tumor latency in 63% of mice[3].

Molecular Weight









Room temperature in continental US; may vary elsewhere

Powder -20°C 3 years
  4°C 2 years
In solvent -80°C 6 months
  -20°C 1 month
Solvent & Solubility
In Vitro:

DMSO : ≥ 45 mg/mL (128.04 mM)

H2O : < 0.1 mg/mL (insoluble)

*"≥" means soluble, but saturation unknown.

Stock Solutions
Concentration Solvent Mass 1 mg 5 mg 10 mg
1 mM 2.8454 mL 14.2272 mL 28.4544 mL
5 mM 0.5691 mL 2.8454 mL 5.6909 mL
10 mM 0.2845 mL 1.4227 mL 2.8454 mL
*Please refer to the solubility information to select the appropriate solvent.
In Vivo:
  • 1.

    Add each solvent one by one:  10% DMSO    40% PEG300    5% Tween-80    45% saline

    Solubility: ≥ 2.5 mg/mL (7.11 mM); Clear solution

  • 2.

    Add each solvent one by one:  10% DMSO    90% corn oil

    Solubility: ≥ 2.5 mg/mL (7.11 mM); Clear solution

*All of the co-solvents are provided by MCE.
Kinase Assay

Approximately 1×106 NB4, HL-60, and APL fresh leukemic cells or CML neutrophils are harvested, pelletted by centrifugation at 400 g for 10 minutes, washed once with 0.9% NaCl, and centrifuged again. The washed cell pellet is resuspended in homogenization buffer (1 mM MgCl2, 1 mM CaCl2, 20 mM ZnCl2, 0.1 mM NaCl, 0.1% [vol/vol] Triton X-100, 50 mM Tris/HCl, pH 7.4) and disrupted by vigorous pipetting. The homogenate is used for the LAP assay, which is performed with p-nitrophenol phosphate as substrate according to the instructions of the manufacturer. LAP activity is normalized for the content of protein in the sample. Proteins are measured according to the Bradford method using BSA fraction V as a standard. One unit of LAP activity is defined as the amount of enzyme capable of transforming 1 nmol of substrate in 1 minute at 25°C. Enzyme assays are performed in conditions of linearity relative to the substrate and to the concentration of proteins.

MCE has not independently confirmed the accuracy of these methods. They are for reference only.

Cell Assay

MCF-10A (2×104) control cells or overexpressing RARγ are seeded in triplicates in 6-well culture dishes. After 24 hrs, cells are washed with PBS, incubated in 2 mL of DMEM-F12 culture medium, detached and counted every 24 hrs. Statistical significance is determined by t-test. pRB and p27 expression is tested by immunofluorescence analysis of control MCF-10A monolayers and monolayers stably transfected with pSG5-RARγ expression vector, using the same antibodies described for the IHC analysis.

MCE has not independently confirmed the accuracy of these methods. They are for reference only.

Animal Administration

Four months old uniparous (1 pregnancy/lactation cycle) MMTV-neu and 6 weeks old nulliparous MMTV-wnt1 female mice (50 mice/group) are treated with the RARα agonist AM580 (0.3 mg/kg body weight per mouse per day) in the diet (Purina 5053) by adding 1.5 mg AM580 per kg of Purina 5053 diet. Mice that develop tumors within the first month of treatment are removed from the study. Mice are palpated twice a week and tumor appearance is recorded. Once palpable, the size of the tumors is measured weekly. Tumor-free survival is calculated from Kaplan-Meier curves and statistical significance is determined by the Log-rank test for the survival studies and t-test for the tumor growth studies. Metastasis is evaluated by removing the lungs of all the anesthetized mice, selecting randomLy 20 mice per group and inspecting the lung surface for lesions using a stereoscope.

MCE has not independently confirmed the accuracy of these methods. They are for reference only.

  • No file chosen (Maximum size is: 1024 Kb)
  • If you have published this work, please enter the PubMed ID.
  • Your name will appear on the site.
  • Molarity Calculator

  • Dilution Calculator

The molarity calculator equation

Mass (g) = Concentration (mol/L) × Volume (L) × Molecular Weight (g/mol)

Mass   Concentration   Volume   Molecular Weight *
= × ×

The dilution calculator equation

Concentration (start) × Volume (start) = Concentration (final) × Volume (final)

This equation is commonly abbreviated as: C1V1 = C2V2

Concentration (start) × Volume (start) = Concentration (final) × Volume (final)
× = ×
C1   V1   C2   V2
