CD3D Protein, Canine (HEK293, Fc)
Based on 1 Customer Validation
CD3D protein is a component of the TCR-CD3 complex on T lymphocytes and plays a key role in adaptive immunity. It transmits signals through the CD3D, CD3E, CD3G, and CD3Z chains upon TCR engagement. CD3D Protein, Canine (HEK293, Fc) is the recombinant canine-derived CD3D protein, expressed by HEK293 , with C-hFc labeled tag.
- Species: Canine
- Source: HEK293
-
Storage:Stored at -20°C for 2 years from date of receipt. After reconstitution, it is stable at 4°C for 1 week or -20°C for longer (with carrier protein). It is recommended to freeze aliquots at -20°C or -80°C for extended storage.
Biological Activity
Description
CD3D protein is a component of the TCR-CD3 complex on T lymphocytes and plays a key role in adaptive immunity. It transmits signals through the CD3D, CD3E, CD3G, and CD3Z chains upon TCR engagement. CD3D Protein, Canine (HEK293, Fc) is the recombinant canine-derived CD3D protein, expressed by HEK293 , with C-hFc labeled tag.
Background
CD3D Protein, an integral part of the TCR-CD3 complex on the surface of T-lymphocytes, plays a pivotal role in the adaptive immune response. Activated by antigen-presenting cells (APCs), the T-cell receptor (TCR) transmits signals through the CD3 chains CD3D, CD3E, CD3G, and CD3Z, which harbor immunoreceptor tyrosine-based activation motifs (ITAMs) in their cytoplasmic domain. Upon TCR engagement, these ITAMs are phosphorylated by Src family protein tyrosine kinases LCK and FYN, activating downstream signaling pathways. Beyond its role in signal transduction for T-cell activation, CD3D is indispensable for thymocyte differentiation, contributing to the correct intracellular assembly and surface expression of the TCR-CD3 complex. Thymocytes lacking a functional TCR-CD3 complex face impaired differentiation. CD3D also interacts with coreceptors CD4 and CD8, establishing a functional link between the TCR and coreceptors crucial for the activation and positive selection of CD4 or CD8 T-cells. The TCR-CD3 complex comprises CD3D/CD3E and CD3G/CD3E heterodimers, forming TCRalpha/CD3E/CD3G and TCRbeta/CD3G/CD3E trimers that, in turn, interact with CD3Z homodimers to complete the hexameric TCR-CD3 complex. Alternatively, TCRalpha and TCRbeta can be substituted by TCRgamma and TCRdelta. These intricate interactions highlight CD3D's multifaceted role in orchestrating T-cell responses.
Verified Bioactivity

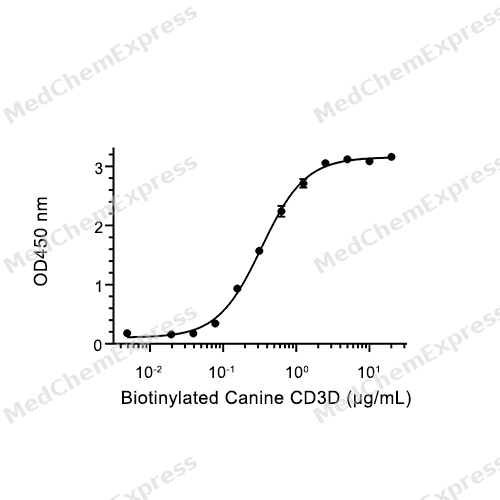

Immobilized Recombinant Canine CD3 epsilon Protein at 10 µg/mL (100 µL/well) can bind Biotinylated Canine CD3D protein. The ED50 for this effect is 0.3359 μg/mL.
MCE Validation Data
-
Purity - SDS-PAGE
Purity - SDS-PAGE
-
Bioactivity - ELISA
Bioactivity - ELISA
Technical Parameters
-
Species Canine
-
Source HEK293
-
Tag C-hFc
-
Accession
A0A8C0PNZ1/XP_536556 (F22-T103)
-
Molecular Construction
-
N-term
-
CD3D (F22-T103)
Accession # A0A8C0PNZ1/XP_536556 -
hFc
-
C-term
-
-
Protein Length
Partial
-
Synonyms
CD3D; CD3d Molecule, Delta (CD3-TCR Complex); Prev. T3D; CD3 Antigen, Delta Subunit; T-Cell Surface Glycoprotein CD3 Delta Chain; OKT3, Delta Chain; T-Cell Receptor T3 Delta Chain; CD3d Molecule; CD3-DELTA; CD3d Antigen; CD3DELTA; IMD19; CD3d Antigen, Del
-
AA Sequence
FKVSVEELEDRVFLSCNTSVLRIEGTMGIQLPHSRTLDLGKRILDPRGIYRCNATEEQSDKAPYMQVYYRMCQNCVELNSAT
-
Molecular Weight
Approximately 43-50 kDa, based on SDS-PAGE under reducing conditions, due to the glycosylation.
-
Glycosylation
Yes
-
Purity
≥ 95%, as determined by reducing SDS-PAGE.
Product Properties
Lyophilized powder.
Lyophilized from a 0.22 μm filtered solution of PBS, pH 7.4.
<1 EU/μg, determined by LAL method.
It is not recommended to reconstitute to a concentration less than 100 μg/mL in ddH2O. For long term storage it is recommended to add a carrier protein (0.1% BSA, 5% HSA, 10% FBS or 5% Trehalose).
Stored at -20°C for 2 years from date of receipt. After reconstitution, it is stable at 4°C for 1 week or -20°C for longer (with carrier protein). It is recommended to freeze aliquots at -20°C or -80°C for extended storage.
Room temperature in continental US; may vary elsewhere.
Documentation
-
Data Sheet (236 KB)
-
SDS (251 KB)
- English - EN (251 KB)
- Français - FR (251 KB)
- Deutsch - DE (251 KB)
- Norwegian - NO (251 KB)
- Español - ES (251 KB)
- Swedish - SV (251 KB)
- Italian - IT (251 KB)
- Korean - KR (251 KB)
- Portuguese - PT (251 KB)
-
Handling Instructions (2659 KB)
Calculators
Concentration (start) × Volume (start) = Concentration (final) × Volume (final)
