WEHI-345 is a potent and selective RIPK2 kinase inhibitor with an IC50 of 0.13 μM, which delays RIPK2 ubiquitylation and NF-κB activation on oligomerization domain (NOD) stimulation.

For research use only. We do not sell to patients.

WEHI-345 Chemical Structure

WEHI-345 Chemical Structure

CAS No. : 1354825-58-3

Size Price Stock Quantity
Free Sample (0.1 - 0.5 mg)   Apply Now
Solid + Solvent
10 mM * 1 mL in DMSO
ready for reconstitution
USD 145 In-stock
Solution
10 mM * 1 mL in DMSO USD 145 In-stock
Solid
5 mg USD 132 In-stock
10 mg USD 209 In-stock
50 mg USD 650 In-stock
100 mg USD 950 In-stock
200 mg   Get quote
500 mg   Get quote

* Please select Quantity before adding items.

This product is a controlled substance and not for sale in your territory.

Customer Review

Based on 4 publication(s) in Google Scholar

Top Publications Citing Use of Products

    WEHI-345 purchased from MedChemExpress. Usage Cited in: Mol Cell. 2018 Feb 15;69(4):551-565.e7.  [Abstract]

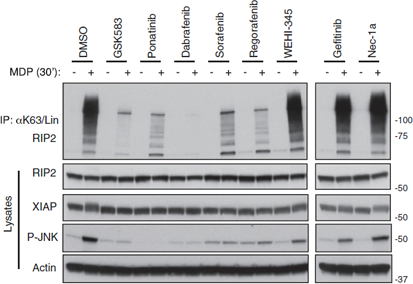

    THP1 cells are treated with muramyl dipeptide (MDP) for 30 min in the presence or absence of indicated kinase inhibitors (1 mM; added 1 hr prior) followed by lysis in 6 M urea buffer. Lysates are immunoprecipitated with K63 and linear ubiquitin chain antibodies, and precipitates and lysates are examined by western blotting using indicated antibodies.

    WEHI-345 purchased from MedChemExpress. Usage Cited in: J Immunol. 2017 May 1;198(9):3729-3736.  [Abstract]

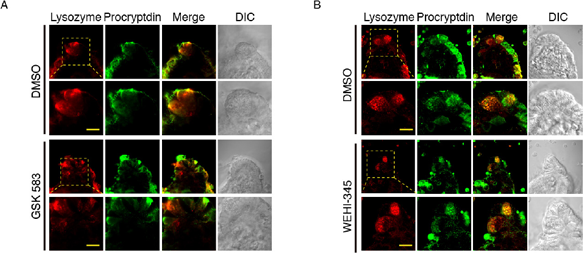

    Confocal images of lysozyme and procryptdin in cultured WT crypt organoids treated with GSK583 (5 μM) or mock-treated (A), or WEHI-345 (2.5 μM) or mock-treated (B) for 16 hours.
    • Biological Activity

    • Purity & Documentation

    • References

    • Customer Review

    Description

    WEHI-345 is a potent and selective RIPK2 kinase inhibitor with an IC50 of 0.13 μM, which delays RIPK2 ubiquitylation and NF-κB activation on oligomerization domain (NOD) stimulation[1].

    IC50 & Target

    IC50: 0.13 μM (RIPK2 kinase)[1]

    In Vitro

    WEHI-345 (500 nM; Raw 267.4 cells) is able to inhibit MDP-induced autophosphorylation activity of RIPK2 in cells[1].
    WEHI-345 (500 nM; 0 hour, 2 hours, 4 hours, 8 hours; BMDMs or THP-1 cells) potently blocks MDP-induced transcription of the inflammatory mediators TNF and interleukin-6 (IL-6) in bone marrow-derived macrophages (BMDMs). In THP-1 cells, WEHI-345 reduces mRNA levels of NF-kB targets such as TNF, IL-8, IL-1b and A20[1].

    MedChemExpress (MCE) has not independently confirmed the accuracy of these methods. They are for reference only.

    Western Blot Analysis[1]

    Cell Line: Raw 267.4 cells
    Concentration: 500 nM
    Incubation Time:
    Result: Inhibited MDP-induced autophosphorylation activity of RIPK2 in cells.

    RT-PCR[1]

    Cell Line: BMDMs or THP-1 cells
    Concentration: 500 nM
    Incubation Time: 0 hour, 2 hours, 4 hours, 8 hours
    Result: Blocked MDP-induced transcription of the inflammatory mediators TNF and interleukin-6 (IL-6) in BMDMs. And reduced mRNA levels of NF-kB targets in THP-1 cells.
    In Vivo

    WEHI-345 (20 mg/kg; intraperitoneal injection; twice daily; for 6 days; C57BL/6 male mice) treatment reduces disease score, inflammatory infiltrate, histological score and recruitment of dendritic cells to the site of inflammation. And improves body weight and reduces cytokine and chemokine levels, indicating an overall improvement of the condition in experimental autoimmune encephalomyelitis (EAE)-induced wild-type C57Bl/6 mice[1].

    MedChemExpress (MCE) has not independently confirmed the accuracy of these methods. They are for reference only.

    Animal Model: C57BL/6 male mice (8-week-old)[1]
    Dosage: 20 mg/kg
    Administration: Intraperitoneal injection; twice daily; for 6 days
    Result: Reduced disease score, inflammatory infiltrate, histological score and recruitment of dendritic cells to the site of inflammation. And improved body weight and reduced cytokine and chemokine levels.
    Molecular Weight

    401.46

    Formula

    C22H23N7O

    CAS No.
    Appearance

    Solid

    Color

    White to off-white

    SMILES

    O=C(C1=CC=NC=C1)NCC(C)(N2N=C(C3=CC=C(C)C=C3)C4=C(N)N=CN=C42)C

    Shipping

    Room temperature in continental US; may vary elsewhere.

    Storage
    Powder -20°C 3 years
    4°C 2 years
    In solvent -80°C 2 years
    -20°C 1 year
    Solvent & Solubility
    In Vitro:

    DMSO : 25 mg/mL (62.27 mM; Need ultrasonic; Hygroscopic DMSO has a significant impact on the solubility of product, please use newly opened DMSO)

    Preparing
    Stock Solutions
    Concentration Solvent Mass 1 mg 5 mg 10 mg
    1 mM 2.4909 mL 12.4545 mL 24.9091 mL
    5 mM 0.4982 mL 2.4909 mL 4.9818 mL
    View the Complete Stock Solution Preparation Table

    * Please refer to the solubility information to select the appropriate solvent. Once prepared, please aliquot and store the solution to prevent product inactivation from repeated freeze-thaw cycles.
    Storage method and period of stock solution: -80°C, 2 years; -20°C, 1 year. When stored at -80°C, please use it within 2 years. When stored at -20°C, please use it within 1 year.

    • Molarity Calculator

    • Dilution Calculator

    Mass (g) = Concentration (mol/L) × Volume (L) × Molecular Weight (g/mol)

    Mass
    =
    Concentration
    ×
    Volume
    ×
    Molecular Weight *

    Concentration (start) × Volume (start) = Concentration (final) × Volume (final)

    This equation is commonly abbreviated as: C1V1 = C2V2

    Concentration (start)

    C1

    ×
    Volume (start)

    V1

    =
    Concentration (final)

    C2

    ×
    Volume (final)

    V2

    In Vivo:

    Select the appropriate dissolution method based on your experimental animal and administration route.

    For the following dissolution methods, please ensure to first prepare a clear stock solution using an In Vitro approach and then sequentially add co-solvents:
    To ensure reliable experimental results, the clarified stock solution can be appropriately stored based on storage conditions. As for the working solution for in vivo experiments, it is recommended to prepare freshly and use it on the same day.
    The percentages shown for the solvents indicate their volumetric ratio in the final prepared solution. If precipitation or phase separation occurs during preparation, heat and/or sonication can be used to aid dissolution.

    • Protocol 1

      Add each solvent one by one:  10% DMSO    90% (20% SBE-β-CD in Saline)

      Solubility: ≥ 2.5 mg/mL (6.23 mM); Clear solution

      This protocol yields a clear solution of ≥ 2.5 mg/mL (saturation unknown).

      Taking 1 mL working solution as an example, add 100 μL DMSO stock solution (25.0 mg/mL) to 900 μL 20% SBE-β-CD in Saline, and mix evenly.

      Preparation of 20% SBE-β-CD in Saline (4°C, storage for one week): 2 g SBE-β-CD powder is dissolved in 10 mL Saline, completely dissolve until clear.
    • Protocol 2

      Add each solvent one by one:  10% DMSO    90% Corn Oil

      Solubility: ≥ 2.5 mg/mL (6.23 mM); Clear solution

      This protocol yields a clear solution of ≥ 2.5 mg/mL (saturation unknown). If the continuous dosing period exceeds half a month, please choose this protocol carefully.

      Taking 1 mL working solution as an example, add 100 μL DMSO stock solution (25.0 mg/mL) to 900 μL Corn oil, and mix evenly.

    In Vivo Dissolution Calculator
    Please enter the basic information of animal experiments:

    Dosage

    mg/kg

    Animal weight
    (per animal)

    g

    Dosing volume
    (per animal)

    μL

    Number of animals

    Recommended: Prepare an additional quantity of animals to account for potential losses during experiments.
    Please enter your animal formula composition:
    %
    DMSO +
    +
    %
    Tween-80 +
    %
    Saline
    Recommended: Keep the proportion of DMSO in working solution below 2% if your animal is weak.
    The co-solvents required include: DMSO, . All of co-solvents are available by MedChemExpress (MCE). , Tween 80. All of co-solvents are available by MedChemExpress (MCE).
    Calculation results:
    Working solution concentration: mg/mL
    Method for preparing stock solution: mg drug dissolved in μL  DMSO (Stock solution concentration: mg/mL).
    The concentration of the stock solution you require exceeds the measured solubility. The following solution is for reference only. If necessary, please contact MedChemExpress (MCE).
    Method for preparing in vivo working solution for animal experiments: Take μL DMSO stock solution, add μL . μL , mix evenly, next add μL Tween 80, mix evenly, then add μL Saline.
     If the continuous dosing period exceeds half a month, please choose this protocol carefully.
    Please ensure that the stock solution in the first step is dissolved to a clear state, and add co-solvents in sequence. You can use ultrasonic heating (ultrasonic cleaner, recommended frequency 20-40 kHz), vortexing, etc. to assist dissolution.
    Purity & Documentation
    References

    Complete Stock Solution Preparation Table

    * Please refer to the solubility information to select the appropriate solvent. Once prepared, please aliquot and store the solution to prevent product inactivation from repeated freeze-thaw cycles.
    Storage method and period of stock solution: -80°C, 2 years; -20°C, 1 year. When stored at -80°C, please use it within 2 years. When stored at -20°C, please use it within 1 year.

    Optional Solvent Concentration Solvent Mass 1 mg 5 mg 10 mg 25 mg
    DMSO 1 mM 2.4909 mL 12.4545 mL 24.9091 mL 62.2727 mL
    5 mM 0.4982 mL 2.4909 mL 4.9818 mL 12.4545 mL
    10 mM 0.2491 mL 1.2455 mL 2.4909 mL 6.2273 mL
    15 mM 0.1661 mL 0.8303 mL 1.6606 mL 4.1515 mL
    20 mM 0.1245 mL 0.6227 mL 1.2455 mL 3.1136 mL
    25 mM 0.0996 mL 0.4982 mL 0.9964 mL 2.4909 mL
    30 mM 0.0830 mL 0.4152 mL 0.8303 mL 2.0758 mL
    40 mM 0.0623 mL 0.3114 mL 0.6227 mL 1.5568 mL
    50 mM 0.0498 mL 0.2491 mL 0.4982 mL 1.2455 mL
    60 mM 0.0415 mL 0.2076 mL 0.4152 mL 1.0379 mL
