4-1BBL/TNFSF9 Protein, Cynomolgus (HEK293, Fc)

4-1BBL (4-1BB ligand) is a type II membrane protein of the TNF superfamily, is expressed on antigen-presenting cells. 4-1BB with 4-1BBL can induce T-cell expansion, cytokine induction, differentiation, and upregulation of anti-apoptotic genes as well as protect T cells from activation-induced cell death (AICD)^[1]. 4-1BBL stimulates T cell proliferation and induces effective anti-tumor immune responses^[3]. 4-1BBL is an immunostimulant molecule that interacts with the 4-1BB high-affinity receptor during the antigen presentation, providing costimulatory signals to both CD4+ and CD8+ T cells through the activation of NF-kB, c-Jun, and p38 downstream pathways, triggering pleiotropic effects on the immune system^[4]. 4-1BBL/TNFSF9 Protein, Cynomolgus (HEK293, Fc) is a recombinant protein with a N-Terminal Fc label, It consists of 184 amino acids (R68-E251) and is produced in HEK293 cells.

4-1BBL is expressed on a variety of antigen presenting cells (APCs), including activated B cells, dendritic cells, macrophages, and myeloid cells^[1].
The amino acid sequence of human 4-1BBL protein has low homology for mouse and rat 4-1BBL protein.
4-1BBL binds to high-affinity 4-1BB, resulting in the recruitment of intracellular TRAF adaptor molecules (TRAF1 and TRAF2), and then activate of NF-jB and the extracellular signal regulated kinase (ERK), c-Jun N-terminal kinase (JNK) and p38 mitogen-associated protein (MAP) kinase signaling cascades. The binding of 4-1BBL to 4-1BB generates strong co-stimulatory signals in T-cells that lead to up-regulation of anti-apoptotic molecules, cytokine secretion, and enhanced effector function^[2].
4-1BBL is a member of the TNF family of proteins. 4-1BBL is an immunostimulant molecule that interacts with the 4-1BB high-affinity receptor during the antigen presentation, providing costimulatory signals to both CD4+ and CD8+ T cells through the activation of NF-kB, c-Jun, and p38 downstream pathways, triggering pleiotropic effects on the immune system^[4]. 4-1BBL significantly induces T cell proliferation and increases the stimulation of both IL-2 and IFN-γ^[5].

4-1BB (Cynomolgus monkey) binds to STA551, and Uto-hIgG2 with K_d value of 25.1 nM and 130 nM, respectively^[4].

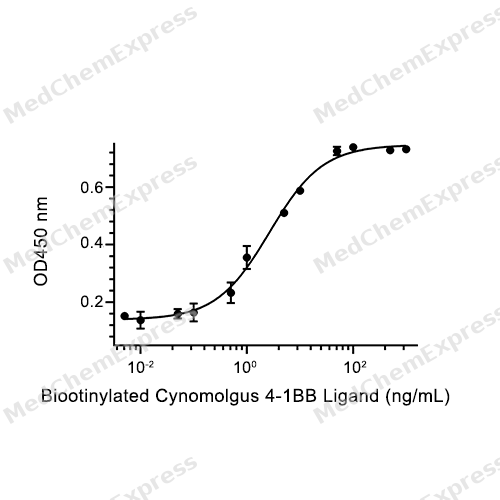

Measured by its binding ability in a functional ELISA. When Recombinant Rat 4-1BB/TNFRSF9 is Immobilized at 100 ng/mL (100 µL/well), can bind Cynomolgus 4-1BB Ligand/TNFSF9. The ED₅₀ for this effect is 2.665 ng/mL.

•
  Measured by its binding ability in a functional ELISA. When Recombinant Rat 4-1BB/TNFRSF9 is Immobilized at 100 ng/mL (100 µL/well), can bind Cynomolgus 4-1BB Ligand/TNFSF9 .The ED₅₀ for this effect is 2.665 ng/mL.

Cynomolgus

HEK293

N-hFc

XP_015296398 (R68-E251)

102129676  [NCBI]

Partial

REGPELSPDNPAGLLDLRQGMFAQLVAQNVLLTDGPLSWYSDPGLAGVSLAEGLSYKEDTKELVVAKAGVYYVFLQLELQRVVAGEGSGSVSLALHLQPLRSAAGAAALALTVDLPSASSEARNSAFGFQGRLLHLGAGQRLGVHLHTEARACHAWQLTQGATVLGLFRVTPEVPAGLPSPRSE

Approximately 48 kDa, based on SDS-PAGE under reducing conditions.

•
  ≥ 95%, as determined by reducing SDS-PAGE.

Lyophilized powder.

Lyophilized from a 0.2 μm filtered solution of PBS, pH 7.4. Normally 5 % - 8 % trehalose, mannitol and 0.01% Tween 80 are added as protectants before lyophilization.

<1 EU/μg, determined by LAL method.

It is not recommended to reconstitute to a concentration less than 100 μg/mL in ddH₂O.

Stored at -20°C for 2 years from date of receipt. After reconstitution, it is stable at 4°C for 1 week or -20°C for longer (with carrier protein). It is recommended to freeze aliquots at -20°C or -80°C for extended storage.

Room temperature in continental US; may vary elsewhere.

• [1]. /biology-dictionary/mrc5-cell.html

  [2]. Li Y, et al. Limited Cross-Linking of 4-1BB by 4-1BB Ligand and the Agonist Monoclonal Antibody Utomilumab. Cell Rep. 2018 Oct 23;25(4):909-920.e4.  [Content Brief]

  [3]. Bitra A, et al. Crystal structure of the m4-1BB/4-1BBL complex reveals an unusual dimeric ligand that undergoes structural changes upon 4-1BB receptor binding. J Biol Chem. 2019 Feb 8;294(6):1831-1845.  [Content Brief]

  [4]. Meseck M, et al. A functional recombinant human 4-1BB ligand for immune costimulatory therapy of cancer. J Immunother. 2011 Mar;34(2):175-82.

  [5]. Martinez-Perez AG, et al. 4-1BBL as a Mediator of Cross-Talk between Innate, Adaptive, and Regulatory Immunity against Cancer. Int J Mol Sci. 2021 Jun 9;22(12):6210.  [Content Brief]

  [6]. Salih HR, et al. Soluble CD137 (4-1BB) ligand is released following leukocyte activation and is found in sera of patients with hematological malignancies. J Immunol. 2001 Oct 1;167(7):4059-66.  [Content Brief]
