PDGF R beta Protein, Rhesus Macaque (HEK293, His)

Cat. No.: HY-P77129
COA Handling Instructions

PDGF R beta, a tyrosine-protein kinase receptor, crucially regulates embryonic development, overseeing cell processes like proliferation, survival, differentiation, chemotaxis, and migration. Especially vital in blood vessel development, it facilitates pericyte and smooth muscle cell proliferation, migration, and recruitment to endothelial cells, playing a significant role in blood vessel formation and maintenance. PDGF R beta Protein, Rhesus Macaque (HEK293, His) is the recombinant Rhesus Macaque-derived PDGF R beta protein, expressed by HEK293 , with C-His labeled tag. The total length of PDGF R beta Protein, Rhesus Macaque (HEK293, His) is 498 a.a., with molecular weight of ~80-96 KDa.

For research use only. We do not sell to patients.

Protein Expression Service

Size Price Stock Quantity
Free Sample   Apply now
2 μg $35 In-stock
10 μg $60 In-stock
50 μg $150 In-stock
100 μg $240 In-stock
500 μg $670 In-stock
1 mg $1140 In-stock
> 100 μg   Get quote

* Please select Quantity before adding items.

Top Publications Citing Use of Products
  • Biological Activity

  • Technical Parameters

  • Properties

  • Documentation

Description

PDGF R beta, a tyrosine-protein kinase receptor, crucially regulates embryonic development, overseeing cell processes like proliferation, survival, differentiation, chemotaxis, and migration. Especially vital in blood vessel development, it facilitates pericyte and smooth muscle cell proliferation, migration, and recruitment to endothelial cells, playing a significant role in blood vessel formation and maintenance. PDGF R beta Protein, Rhesus Macaque (HEK293, His) is the recombinant Rhesus Macaque-derived PDGF R beta protein, expressed by HEK293 , with C-His labeled tag. The total length of PDGF R beta Protein, Rhesus Macaque (HEK293, His) is 498 a.a., with molecular weight of ~80-96 KDa.

Background

PDGF R beta, a tyrosine-protein kinase, serves as a cell-surface receptor for homodimeric PDGFB and PDGFD, as well as heterodimers formed by PDGFA and PDGFB. This receptor plays a crucial role in the intricate regulation of embryonic development, overseeing processes such as cell proliferation, survival, differentiation, chemotaxis, and migration. Particularly vital in blood vessel development, PDGF R beta facilitates the proliferation, migration, and recruitment of pericytes and smooth muscle cells to endothelial cells, contributing significantly to the formation and maintenance of blood vessels.

Biological Activity

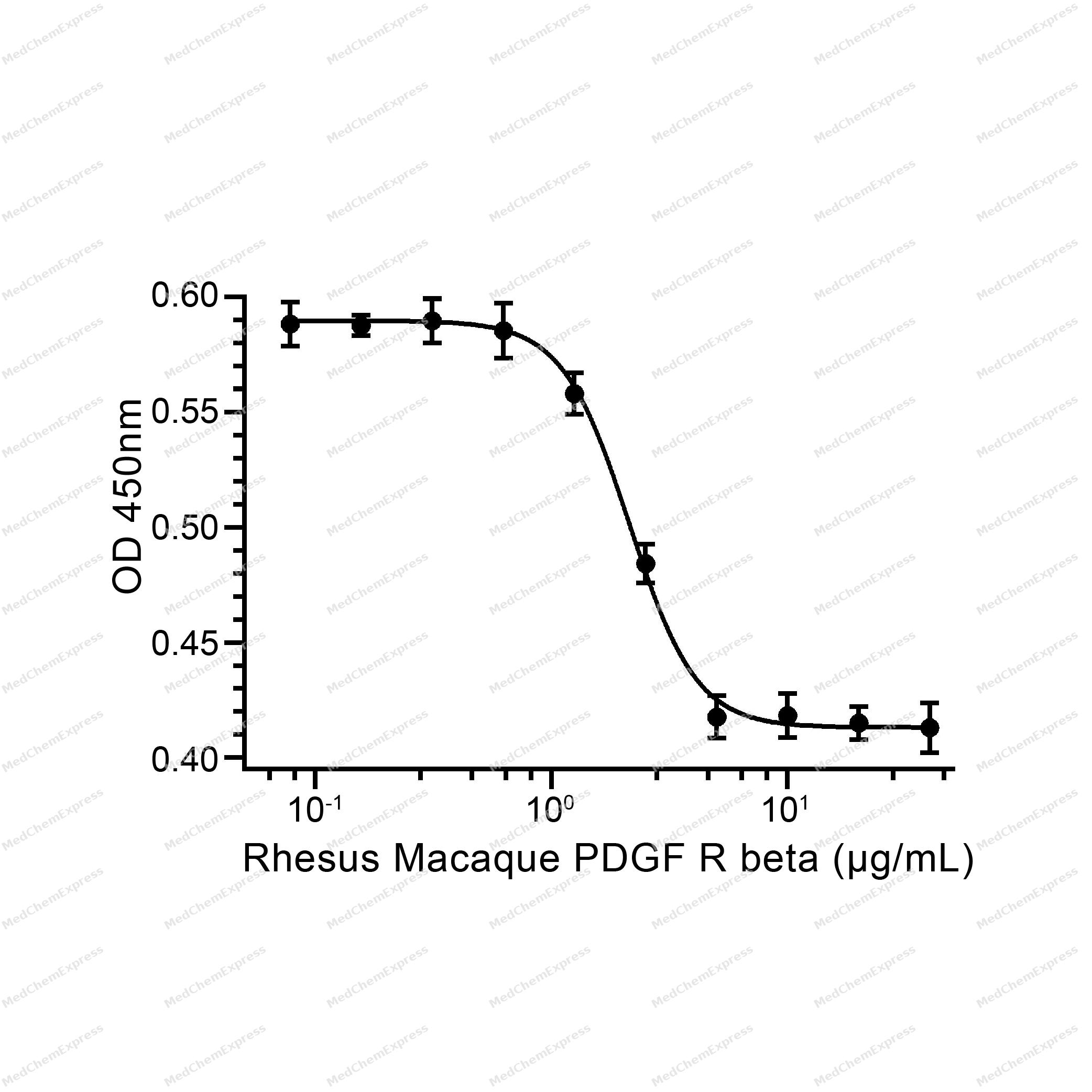

Measured by its ability to inhibit the biological activity of PDGF-BB using NIH-3T3 mouse fibroblast cells. The ED50 for this effect is 2.236 µg/mL in the presence of 50 ng/mL Recombinant Human PDGF-BB, corresponding to a specific activity is 447.22 Unit/mg.

  • Measured by its ability to inhibit the biological activity of PDGF-BB using NIH-3T3 mouse fibroblast cells. The ED50 for this effect is 2.236µg/mL in the presence of 50 ng/mL Recombinant Human PDGF-BB, corresponding to a specific activity is 447.22 Unit/mg.
Species

Rhesus Macaque

Source

HEK293

Tag

C-His

Accession

F7BTH1 (L33-F530)

Gene ID
Molecular Construction
N-term
PDGF R beta (L33-F530)
Accession # F7BTH1
His
C-term
Synonyms
Platelet-derived growth factor receptor beta; PDGF-R-beta; PDGFR-1; CD140b; PDGFRB
AA Sequence

LVITPPGPELILNVSSTFVLTCSGSAPVVWERMSQELPQEMAKAQDNTFSSVLTLTNLTGLDTGEYFCTYNDSRGLEPDERKRLYIFVPDPTMGFLPNDAEELFIFLTEITEITIPCRVTDPQLVVTLHEKKGDIALPVPYDHQRGFSGIFEDRSYICKTTIGDREVDSDAYYVYRLQVSSINVSVNAVQTVVRQGENITLMCIVIGNEVVNFEWMYPRKESGRLVEPVTDFLLDMPYHIRSILHIPSAELEDSGTYTCNVTESVNDHQDEKAINITVVESGYVRLLGEVGALQFAELHRSRTLQVVFEAYPPPTVLWFKDNRTLGDSSAGEIALSTRNVSETRYVSELTLVRVKVAEAGHYTMRAFHEDAEVQLSFQLQINVPVRVLELSESHPDSGEQTVRCRGRGMPQPNIIWSACRDLKRCPRELPPMLLGNSSEEESQLETNVTYWEEEQEFEVVSTLRLQHVDRPLSVRCTLRNAVGQDMQEVIVVPHSLPF

Molecular Weight

Approximately 80-96 kDa.

Purity
  • Greater than 95% as determined by reducing SDS-PAGE.
Appearance

Lyophilized powder

Formulation

Lyophilized from a 0.2 μm filtered solution of PBS, pH 7.4.

Endotoxin Level

<1 EU/μg, determined by LAL method.

Reconstitution

It is not recommended to reconstitute to a concentration less than 100 μg/mL in ddH2O. For long term storage it is recommended to add a carrier protein (0.1% BSA, 5% HSA, 10% FBS or 5% Trehalose).

Storage & Stability

Stored at -20°C for 2 years. After reconstitution, it is stable at 4°C for 1 week or -20°C for longer (with carrier protein). It is recommended to freeze aliquots at -20°C or -80°C for extended storage.

Shipping

Room temperature in continental US; may vary elsewhere.

Documentation
Help & FAQs
  • Do most proteins show cross-species activity?

    Species cross-reactivity must be investigated individually for each product. Many human cytokines will produce a nice response in mouse cell lines, and many mouse proteins will show activity on human cells. Other proteins may have a lower specific activity when used in the opposite species.

  • Reconstitution Calculator

  • Dilution Calculator

  • Specific Activity Calculator

The reconstitution calculator equation

Volume (to add to vial) = Mass (in vial) ÷ Desired Reconstitution Concentration

Volume (to add to vial) = Mass (in vial) ÷ Desired Reconstitution Concentration
= ÷

The dilution calculator equation

Concentration (start) × Volume (start) = Concentration (final) × Volume (final)

This equation is commonly abbreviated as: C1V1 = C2V2

Concentration (start) × Volume (start) = Concentration (final) × Volume (final)
× = ×
C1   V1   C2   V2

The specific activity calculator equation

Specific Activity (Unit/mg) = 106 ÷ Biological Activity (ED50)

Specific Activity (Unit/mg) = 106 ÷ Biological Activity (ED50)
Unit/mg = 106 ÷ ng/mL
