1. Dye Reagents
  2. TMRM


Cat. No.: HY-D0984
Handling Instructions

TMRM is a cell-permeant cationic lipophilic red fluorescent dye (λex=530 nm, λem=592 nm).

For research use only. We do not sell to patients.

TMRM Chemical Structure

TMRM Chemical Structure

CAS No. : 115532-49-5

Size Price Stock
5 mg USD 216 Get quote

* Please select Quantity before adding items.

Other In-stock Forms of TMRM:

Other Forms of TMRM:

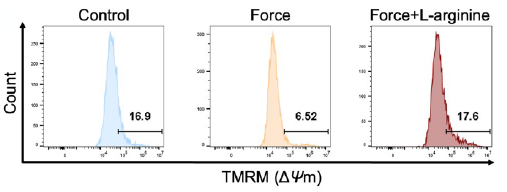

Top Publications Citing Use of Products
  • Biological Activity

  • Protocol

  • Technical Information

  • Purity & Documentation

  • References


TMRM is a cell-permeant cationic lipophilic red fluorescent dye (λex=530 nm, λem=592 nm).

In Vitro

TMRM is a fluorescent probe (excitation, 530±21 nm; emission, 592±22 nm). The fluorescence signal in the presence of safranin or TMRM shows a slight decrease after the addition of glutamate, indicative of increased polarization of the mitochondrial inner membrane. In the presence of TMRM (2 μM) the coupled respiration with Complex I substrates or upon the addition of Complex II substrate is decreased by 27%[1]. Exposure of hippocampal cultures to low concentrations of TMRM (50 to 500 nM) for 1 to 3 hours results in selective staining of mitochondria in both neurons and the underlying glial cells. Exposure of hippocampal cultures to high concentrations of TMRM (1 to 25 µM) stains mitochondria selectively and quickly, reaching a plateau after 5 to 10 min. Low concentrations of TMRM (50 to 200 nM) do not induce apoptosis, whereas higher concentrations (0.5 and 2.5 µM) enhance apoptosis (KD = 500 nM)[2].


Please store the product under the recommended conditions in the Certificate of Analysis.

Cell Assay

Cultures are exposed to Millipore-filtered solutions (0.22 µm) containing TMRM and/or drugs for 1 hr at 37°C (except the experiment involving different durations of exposure to TMRM). After treatment, solutions are removed and growth media reapplied under sterile conditions, and cultures are post-incubated for 18 hours at 37°C (except for the experiment involving analysis at different time points after exposure). Cells are then stained with 2 mg/mL bisbenzimide for 20 min at room temperature. Coverslips are subsequently washed in saline and imaged using 2P microscopy. Apoptotic cells are identified as brightly fluorescent nuclei under UV excitation indicating DNA fragmentation. Cell survivability is calculated as the percentage of live, unstained cells (±SD) in five microscopic fields per treatment[1].

MCE has not independently confirmed the accuracy of these methods. They are for reference only.

Molecular Weight









Room temperature in continental US; may vary elsewhere

  • Molarity Calculator

  • Dilution Calculator

The molarity calculator equation

Mass (g) = Concentration (mol/L) × Volume (L) × Molecular Weight (g/mol)

Mass   Concentration   Volume   Molecular Weight *
= × ×

The dilution calculator equation

Concentration (start) × Volume (start) = Concentration (final) × Volume (final)

This equation is commonly abbreviated as: C1V1 = C2V2

Concentration (start) × Volume (start) = Concentration (final) × Volume (final)
× = ×
C1   V1   C2   V2
