  4. SD-208

SD-208 is a selective TGF-βRI (ALK5) inhibitor with IC50 of 48 nM, and > 100-fold selectivity over TGF-βRII.

For research use only. We do not sell to patients.

CAS No. : 627536-09-8

Size Price Stock Quantity
Free Sample (0.1 - 0.2 mg)   Apply Now
Solid + Solvent (Highly Recommended)
10 mM * 1 mL in DMSO
ready for reconstitution
 In-stock
Solution
10 mM * 1 mL in DMSO In-stock
Solid
5 mg In-stock
10 mg In-stock
25 mg In-stock
50 mg In-stock
100 mg In-stock
200 mg   Get quote
500 mg   Get quote

* Please select Quantity before adding items.

This product is a controlled substance and not for sale in your territory.

Customer Review

Based on 10 publication(s) in Google Scholar

Other Forms of SD-208:

SD-208 Related Antibodies

Top Publications Citing Use of Products

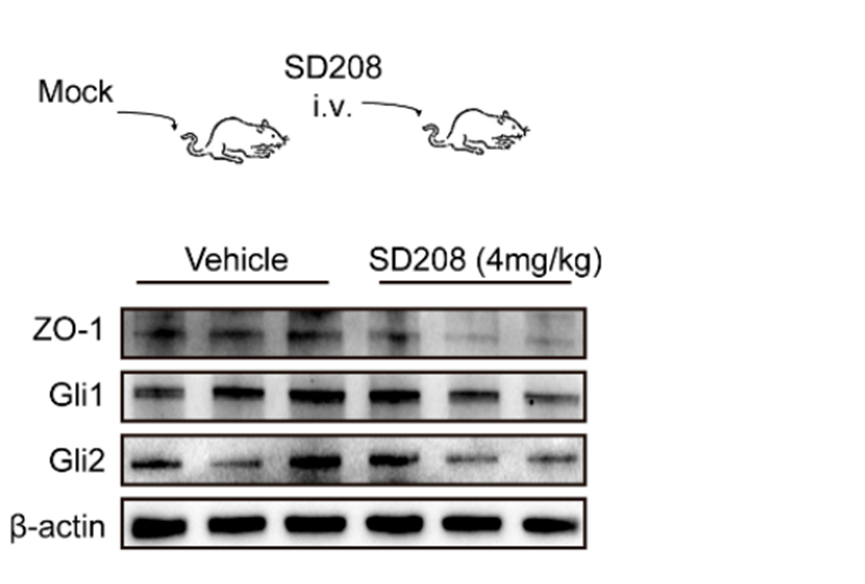

    SD-208 purchased from MedChemExpress. Usage Cited in: Brain Sci. 2021 Jan 8;11(1):77.  [Abstract]

    The effects of SD208 injection (4 mg/kg i.v.) on the expression of ZO-1, Gli1 and Gli2 in mouse brains.

    View All TGF-β Receptor Isoform Specific Products:

    View All Isoforms
    ALK1 ALK2 ALK3 ALK4 ALK5 ALK6 ALK7 TGFβR2 ACVR2A ACVR2B BMP

    • Biological Activity

    • Protocol

    • Purity & Documentation

    • References

    • Customer Review

    Description

    SD-208 is a selective TGF-βRI (ALK5) inhibitor with IC50 of 48 nM, and > 100-fold selectivity over TGF-βRII.

    IC50 & Target

    IC50: 48 nM (TGF-βRI)
    Cellular Effect
    Cell Line Type Value Description References
    Huh-7 CC50
    > 25 μM
    Compound: 1, SCI-208
    Cytotoxicity against Huh7 cells by luciferase assay
    Cytotoxicity against Huh7 cells by luciferase assay
    		[PMID: 17289388]
    MT4 CC50
    > 25 μM
    Compound: 1, SCI-208
    Cytotoxicity against MT4 cells by luciferase assay
    Cytotoxicity against MT4 cells by luciferase assay
    		[PMID: 17289388]
    In Vitro

    SD-208 inhibits the cell growth and constitutive and TGF-beta-evoked migration and invasion, and enhances immunogenicity in murine SMA-560 and human LN-308 glioma cells[1]. SD-208 blocks TGF-beta-induced phosphorylation of the receptor-associated Smads, Smad2 and Smad3, and stimulates epithelial-to-mesenchymal transdifferentiation, migration, and invasiveness into Matrigel in vitro[2]. SD-208 also abolishes the promoting effect of TGF-β on neointimal smooth muscle-like cell (SMLC) proliferation and migration in vitro[3].

    MedChemExpress (MCE) has not independently confirmed the accuracy of these methods. They are for reference only.

    SD-208 Related Antibodies
    In Vivo

    SD-208 (1 mg/mL, p.o.) significantly prolongs the median survival of SMA-560 glioma-bearing mice[1]. In syngeneic 129S1 mice, SD-208 (60 mg/kg/d, p.o.) inhibits primary R3T tumor growth, and reduces the number and the size of lung metastases[2]. In the murine aortic allograft model, SD-208 effectively reduces the formation of intimal hyperplasia of transplant arteriosclerosis (TA)[3].

    MedChemExpress (MCE) has not independently confirmed the accuracy of these methods. They are for reference only.
    Molecular Weight

    352.75

    Formula

    C17H10ClFN6
    CAS No.
    Appearance

    Solid

    Color

    Light yellow to yellow

    SMILES

    FC1=CC=C(Cl)C=C1C2=NC3=NC=CN=C3C(NC4=CC=NC=C4)=N2
    Shipping

    Room temperature in continental US; may vary elsewhere.
    Storage
    Powder -20°C 3 years
    4°C 2 years
    In solvent -80°C 2 years
    -20°C 1 year
    Solvent & Solubility
    In Vitro:

    DMSO : 9.09 mg/mL (25.77 mM; Need ultrasonic; Hygroscopic DMSO has a significant impact on the solubility of product, please use newly opened DMSO)

    Preparing
    Stock Solutions
    Concentration Solvent Mass 1 mg 5 mg 10 mg
    1 mM 2.8349 mL 14.1743 mL 28.3487 mL
    5 mM 0.5670 mL 2.8349 mL 5.6697 mL
    View the Complete Stock Solution Preparation Table

    * Please refer to the solubility information to select the appropriate solvent. Once prepared, please aliquot and store the solution to prevent product inactivation from repeated freeze-thaw cycles.
    Storage method and period of stock solution: -80°C, 2 years; -20°C, 1 year. When stored at -80°C, please use it within 2 years. When stored at -20°C, please use it within 1 year.

    • Molarity Calculator

    • Dilution Calculator

    Mass (g) = Concentration (mol/L) × Volume (L) × Molecular Weight (g/mol)

    Mass
    =
    Concentration
    ×
    Volume
    ×
    Molecular Weight *

    Concentration (start) × Volume (start) = Concentration (final) × Volume (final)

    This equation is commonly abbreviated as: C1V1 = C2V2

    Concentration (start)

    C1

    ×
    Volume (start)

    V1

    =
    Concentration (final)

    C2

    ×
    Volume (final)

    V2

    In Vivo:

    Select the appropriate dissolution method based on your experimental animal and administration route.

    For the following dissolution methods, please ensure to first prepare a clear stock solution using an In Vitro approach and then sequentially add co-solvents:
    To ensure reliable experimental results, the clarified stock solution can be appropriately stored based on storage conditions. As for the working solution for in vivo experiments, it is recommended to prepare freshly and use it on the same day.
    The percentages shown for the solvents indicate their volumetric ratio in the final prepared solution. If precipitation or phase separation occurs during preparation, heat and/or sonication can be used to aid dissolution.

    • Protocol 1

      Add each solvent one by one:  10% DMSO    40% PEG300    5% Tween-80    45% Saline

      Solubility: 0.91 mg/mL (2.58 mM); Suspended solution; Need ultrasonic

      This protocol yields a suspended solution of 0.91 mg/mL. Suspended solution can be used for oral and intraperitoneal injection.

      Taking 1 mL working solution as an example, add 100 μL DMSO stock solution (9.1 mg/mL) to 400 μL PEG300, and mix evenly; then add 50 μL Tween-80 and mix evenly; then add 450 μL Saline to adjust the volume to 1 mL.

      Preparation of Saline: Dissolve 0.9 g sodium chloride in ddH₂O and dilute to 100 mL to obtain a clear Saline solution.
    • Protocol 2

      Add each solvent one by one:  10% DMSO    90% (20% SBE-β-CD in Saline)

      Solubility: 0.91 mg/mL (2.58 mM); Suspended solution; Need ultrasonic

      This protocol yields a suspended solution of 0.91 mg/mL. Suspended solution can be used for oral and intraperitoneal injection.

      Taking 1 mL working solution as an example, add 100 μL DMSO stock solution (9.1 mg/mL) to 900 μL 20% SBE-β-CD in Saline, and mix evenly.

      Preparation of 20% SBE-β-CD in Saline (4°C, storage for one week): 2 g SBE-β-CD powder is dissolved in 10 mL Saline, completely dissolve until clear.

    For the following dissolution methods, please prepare the working solution directly. It is recommended to prepare fresh solutions and use them promptly within a short period of time.
    The percentages shown for the solvents indicate their volumetric ratio in the final prepared solution. If precipitation or phase separation occurs during preparation, heat and/or sonication can be used to aid dissolution.

    • Protocol 1

      Add each solvent one by one:  50% PEG300    50% Saline

      Solubility: 5 mg/mL (14.17 mM); Suspended solution; Need ultrasonic

    In Vivo Dissolution Calculator
    Please enter the basic information of animal experiments:

    Dosage

    mg/kg

    Animal weight
    (per animal)

    g

    Dosing volume
    (per animal)

    μL

    Number of animals

    Recommended: Prepare an additional quantity of animals to account for potential losses during experiments.
    Please enter your animal formula composition:
    %
    DMSO +
    %
    +
    %
    Tween-80 +
    %
    Saline
    Recommended: Keep the proportion of DMSO in working solution below 2% if your animal is weak.
    The co-solvents required include: DMSO, . All of co-solvents are available by MedChemExpress (MCE). , Tween 80. All of co-solvents are available by MedChemExpress (MCE).
    Calculation results:
    Working solution concentration: mg/mL
    Method for preparing stock solution: mg drug dissolved in μL  DMSO (Stock solution concentration: mg/mL).
    The concentration of the stock solution you require exceeds the measured solubility. The following solution is for reference only. If necessary, please contact MedChemExpress (MCE).
    Method for preparing in vivo working solution for animal experiments: Take μL DMSO stock solution, add μL . μL , mix evenly, next add μL Tween 80, mix evenly, then add μL Saline.
     If the continuous dosing period exceeds half a month, please choose this protocol carefully.
    Please ensure that the stock solution in the first step is dissolved to a clear state, and add co-solvents in sequence. You can use ultrasonic heating (ultrasonic cleaner, recommended frequency 20-40 kHz), vortexing, etc. to assist dissolution.
    Purity & Documentation

    Purity: 99.87%

    SDS (393 KB)

    COA (254 KB) LCMS (122 KB)

    Handling Instructions (2659 KB)
    References
    Kinase Assay
    [1]

    Various kinase activities are assayed by measuring the incorporation of radiolabeled ATP into a peptide or protein substrate. The reactions are performed in 96-well plates and included the relevant kinase, substrate, ATP, and appropriate cofactors. The reactions are incubated and then stopped by the addition of phosphoric acid. Substrate is captured onto a phosphocellulose filter, which is washed free of unreacted ATP. The counts incorporated are determined by counting on a microplate scintillation counter. The ability of SD-208 to inhibit the respective kinase is determined by comparing counts incorporated in the presence of compound with those incorporated in the absence of compound.

    MCE has not independently confirmed the accuracy of these methods. They are for reference only.
    Cell Assay
    [1]

    Glioma cells are cultured in the absence or presence of SD-208 (1 μM) for 48 hours. The cells are pulsed for the last 24 hours with [methyl-3H]thymidine (0.5 μCi) and harvested, and incorporated radioactivity is determined in a liquid scintillation counter.

    MCE has not independently confirmed the accuracy of these methods. They are for reference only.
    Animal Administration
    [1]

    VM/Dk mice are purchased from the TSE Resource Center. Mice of 6 to 12 weeks of age are used for the survival experiments. Groups of eight mice are anesthesized before all intracranial procedures and placed in a stereotaxic fixation device. A burr hole is drilled in the skull 2 mm lateral to the bregma. The needle of a Hamilton syringe is introduced to a depth of 3 mm. SMA-560 cells [5×103cells] resuspended in a volume of 2 μL of PBS are injected into the right striatum. Three days later, the mice are allowed to drink SD-208 at 1 mg/mL in deionized water. The mice are observed daily and, in the survival experiments, sacrificed on development of neurologic symptoms.

    MCE has not independently confirmed the accuracy of these methods. They are for reference only.
    References

    Complete Stock Solution Preparation Table

    * Please refer to the solubility information to select the appropriate solvent. Once prepared, please aliquot and store the solution to prevent product inactivation from repeated freeze-thaw cycles.
    Storage method and period of stock solution: -80°C, 2 years; -20°C, 1 year. When stored at -80°C, please use it within 2 years. When stored at -20°C, please use it within 1 year.

    Optional Solvent Concentration Solvent Mass 1 mg 5 mg 10 mg 25 mg
    DMSO 1 mM 2.8349 mL 14.1743 mL 28.3487 mL 70.8717 mL
    5 mM 0.5670 mL 2.8349 mL 5.6697 mL 14.1743 mL
    10 mM 0.2835 mL 1.4174 mL 2.8349 mL 7.0872 mL
    15 mM 0.1890 mL 0.9450 mL 1.8899 mL 4.7248 mL
    20 mM 0.1417 mL 0.7087 mL 1.4174 mL 3.5436 mL
    25 mM 0.1134 mL 0.5670 mL 1.1339 mL 2.8349 mL
