1. MAPK/ERK Pathway
    Stem Cell/Wnt
  2. ERK
  3. XMD8-92


Cat. No.: HY-14443 Purity: 99.72%
Handling Instructions

XMD8-92 is a highly selective ERK5/BMK1 inhibitor with dissociation constant (Kd) value of 80 nM.

For research use only. We do not sell to patients.

XMD8-92 Chemical Structure

XMD8-92 Chemical Structure

CAS No. : 1234480-50-2

Size Price Stock Quantity
10 mM * 1  mL in DMSO USD 110 In-stock
Estimated Time of Arrival: December 31
10 mg USD 100 In-stock
Estimated Time of Arrival: December 31
50 mg USD 350 In-stock
Estimated Time of Arrival: December 31
100 mg USD 590 In-stock
Estimated Time of Arrival: December 31
200 mg   Get quote
500 mg   Get quote

* Please select Quantity before adding items.

Customer Review

Based on 9 publication(s) in Google Scholar

Top Publications Citing Use of Products

    XMD8-92 purchased from MCE. Usage Cited in: Sci Signal. 2014 Oct 28;7(349):ra102.

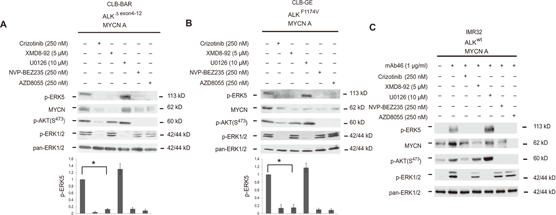

    Activation of ERK5 in neuroblastoma cell lines expressing activated ALK. (A to C) Immunoblotting for the indicated proteins in neuroblastoma cells CLB-BAR (A), CLB-GE (B), and IMR32 (C) cultured on six-well plates in complete growth medium and treated with inhibitors as indicated for 6 hours alone (A and B) or before (C) stimulation with mAb46 for 30 min.

    XMD8-92 purchased from MCE. Usage Cited in: PLoS One. 2015 Apr 17;10(4):e0125054.

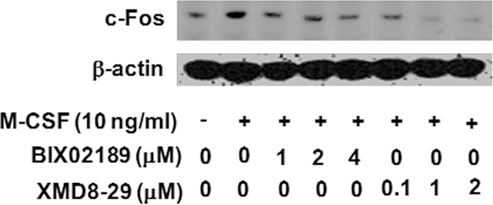

    The induction of c-Fos is blocked by inhibition of the ERK5 pathway. 4B12 cells (2.5 × 104) are pretreated with or without BIX02189 or XMD8-92 for 6 hrs and then cultured in the presence of M-CSF (10 ng/mL) for 24 hrs. The expression of c-Fos is measured by Western blot analysis.

    XMD8-92 purchased from MCE. Usage Cited in: Stem Cell Reports. 2018 Oct 9;11(4):929-943.

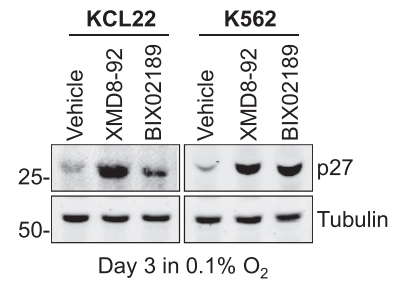

    Immunoblotting of total cell lysates of CML cell lines; tubulin is a loading control; representative images from four independent experiments.

    View All ERK Isoform Specific Products:

    • Biological Activity

    • Protocol

    • Purity & Documentation

    • References

    • Customer Review


    XMD8-92 is a highly selective ERK5/BMK1 inhibitor with dissociation constant (Kd) value of 80 nM.

    IC50 & Target[1]


    80 nM (Kd)

    In Vitro

    XMD8-92 exhibits the greatest affinity towards BMK1 with a measured dissociation constant (Kd) of 80 nM, while DCAMKL2, TNK1 and PLK4 exhibit Kd’s of 190, 890 and 600 nM, respectively. XMD8-92 is profiled against all detectable kinases in HeLa cell lysates using the KiNativ method and is found to be about 10-fold more selective for BMK1 with a IC50 of 1.5 μM than the most potent off-targets, TNK1 (IC50=10 μM) and ACK1 (aka TNK2, IC50=18 μM). Other weak off-targets include the kinase domain 2 of RSK1 and RSK2, PIK4A and PIK4B, and FAK. Notably, MEK5 is not significantly inhibited by XMD8-92 at up to 50 μM[1]. XMD8-92 shows high selectivity to BMK1 in an in vitro ATP-site competition binding assay against 402 kinases as well as in the KiNativ method against all detectable kinases in HeLa cell lysates. XMD8-92 blocks EGF-induced activation of BMK1 with IC50 of 240 nM and, with concentration as high as 5 μM, XMD8-92 has no inhibitory effect on ERK1/2 activation by EGF[2].

    In Vivo

    XMD8-92 significantly inhibits tumor growth in vivo by 95%. The pharmacokinetics of XMD8-92 is evaluated in Sprague-Dawley rats given a single intravenous or oral dose. XMD8-92 is found to have a 2.0 hr half life clearance of 26 mL/min/kg. XMD8-92 has moderate tissue distribution with a calculated volume of distribution of 3.4 L/kg. XMD8-92 has high oral bioavailability with 69% of the dose absorbed. After a single oral dose of 2 mg/kg, maximal plasma concentrations of approximately 500 nM are observed by 30 minutes, with 34 nM remaining 8 hr post dose. In tolerability experiments, high plasma concentrations of drug (approximately 10 μM following IP dosing of 50 mg/kg) are maintained throughout the 14 days. XMD8-92 appeares to be well tolerated and the mice appeared healthy with no sign of distress. No vasculature instability is observed in the XMD8-92-treated mice[1]. XMD8-92 treatment in both immunocompetent and immunodeficient mice blocked the growth of lung and cervical xenograft tumors, respectively, by 95%. This remarkable anti-tumor effect of XMD8-92 in lung and cervical xenograft tumor models is due to XMD8-92’s capacity to inhibit tumor cell proliferation through the PML suppression-inducted p21 checkpoint protein, and by blocking of BMK1’s contribution in tumor-associated angiogenesis. Besides, BMK1 knockout (KO) in mice leads to complete and irreversible removal of the BMK1 protein, while XMD8-92 treatment in mice only suppresses the activity of BMK1, which is reversible. Second, the vasculature instability observed in BMK1 KO mice may be due to lack of the C-terminal non-kinase domain of BMK1, which is still present during XMD8-92 treatment of animals[2].

    Molecular Weight




    CAS No.





    Room temperature in continental US; may vary elsewhere.

    Powder -20°C 3 years
      4°C 2 years
    In solvent -80°C 6 months
      -20°C 1 month
    Solvent & Solubility
    In Vitro:

    DMSO : 50 mg/mL (105.36 mM; Need ultrasonic)

    Stock Solutions
    Concentration Solvent Mass 1 mg 5 mg 10 mg
    1 mM 2.1073 mL 10.5363 mL 21.0726 mL
    5 mM 0.4215 mL 2.1073 mL 4.2145 mL
    10 mM 0.2107 mL 1.0536 mL 2.1073 mL
    *Please refer to the solubility information to select the appropriate solvent.
    In Vivo:
    • 1.

      Add each solvent one by one:  10% DMSO    40% PEG300    5% Tween-80    45% saline

      Solubility: ≥ 2.5 mg/mL (5.27 mM); Clear solution

    • 2.

      Add each solvent one by one:  10% DMSO    90% (20% SBE-β-CD in saline)

      Solubility: ≥ 2.5 mg/mL (5.27 mM); Clear solution

    *All of the co-solvents are provided by MCE.
    Kinase Assay

    KiNativ profiling of XMD8-92 is carried out with both an ATP and ADP acylphosphate-desthiobiotin with the following modifications. HeLa cell lysates (5 mg/mL total protein) are incubated in the presence of XMD8-92 at 50 μM, 10 μM, 2 μM, 0.8 μM, and 0 μM for 15 minutes prior to addition of the ATP or ADP acylphosphate probe (5 μM final probe concentration). All reactions are performed in duplicate. Probe reactions proceeded for 10 minutes and the reaction stopped by the addition of urea and processed for MS analysis. Samples are analyzed by LC-MS/MS on a linear ion trap mass spectrometer using a time segmented “target list” designed to collect MS/MS spectra from all kinase peptide-probe conjugates that can be detected in HeLa cell lysates. This target list is generated and validated by prior exhaustive analysis of HeLa lysates. Up to four characteristic fragment ions for each kinase peptide-probe conjugate are used to extract signals for each kinase, and a comparison of inhibitor treated to control (untreated) lysates allow for precise determination of % inhibition at each point. A manuscript describing the details of this targeted mass spectrometry approach is in preparation[1].

    MCE has not independently confirmed the accuracy of these methods. They are for reference only.

    Animal Administration

    5×105 HeLa cells are resuspended in DMEM and injected subcutaneously into the right flank of 6-week-old Nod/Scid mice (day 0). On the second day (day 1) after tumor cell injection, mice are randomized into 2 groups (6 animals, XMD8-92, 1-28 day, and 18 animals, control). The XMD8-92 (1-28 day) group is treated with XMD8-92 at the dose of 50 mg/kg twice a day intraperitoneally. The control group receive daily injections of the carrier solution as control. On the day 7, the control group is randomized into 2 groups (6 animals, XMD8-92, 7-28 day, and 12 animals, control). And on the day 14, the remaining control group is randomized into 2 groups (6 animals, XMD8-92, 14-28 day, and 6 animals, control). Treatment with XMD8-92 in XMD8-92 (7-28 day) and XMD8-92 (14-28 day) groups is initiated on day 7 and day 14, respectively. Tumor size is measured using a caliper, and tumor volume is determined[1].

    MCE has not independently confirmed the accuracy of these methods. They are for reference only.

    • No file chosen (Maximum size is: 1024 Kb)
    • If you have published this work, please enter the PubMed ID.
    • Your name will appear on the site.
    • Molarity Calculator

    • Dilution Calculator

    The molarity calculator equation

    Mass (g) = Concentration (mol/L) × Volume (L) × Molecular Weight (g/mol)

    Mass   Concentration   Volume   Molecular Weight *
    = × ×

    The dilution calculator equation

    Concentration (start) × Volume (start) = Concentration (final) × Volume (final)

    This equation is commonly abbreviated as: C1V1 = C2V2

    Concentration (start) × Volume (start) = Concentration (final) × Volume (final)
    × = ×
    C1   V1   C2   V2
