1. MAPK/ERK Pathway
    Stem Cell/Wnt
  2. ERK


Cat. No.: HY-15665 Purity: 99.44%
Handling Instructions

XMD17-109 is a novel, specific ERK-5 inhibitor, with an IC50 of 162 nM.

For research use only. We do not sell to patients.

XMD17-109 Chemical Structure

XMD17-109 Chemical Structure

CAS No. : 1435488-37-1

Size Price Stock Quantity
Free Sample (0.5-1 mg)   Apply now
10 mM * 1 mL in DMSO USD 236 In-stock
Estimated Time of Arrival: December 31
5 mg USD 168 In-stock
Estimated Time of Arrival: December 31
10 mg USD 264 In-stock
Estimated Time of Arrival: December 31
50 mg USD 744 In-stock
Estimated Time of Arrival: December 31
100 mg   Get quote
200 mg   Get quote

* Please select Quantity before adding items.

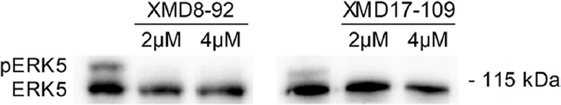

    XMD17-109 purchased from MCE. Usage Cited in: Oncotarget. 2016 Jun 7;7(23):34322-40.

    HCT116 parental cells are treated for up to 48 h with increasing doses of 5-FU in combination with 4 μM XMD8-92 or 2 μM XMD17-109, two highly-selective ERK5 pharmacological inhibitors.

    View All ERK Isoform Specific Products:

    • Biological Activity

    • Protocol

    • Technical Information

    • Purity & Documentation

    • References


    XMD17-109 is a novel, specific ERK-5 inhibitor, with an IC50 of 162 nM.

    IC50 & Target[1]


    162 nM (IC50)


    339 nM (IC50)

    In Vitro

    XMD17-109 (Compound 26) inhibits ERK5 biochemically with an IC50 of 0.162 ± 0.006 μM, and blocks pidermal growth factor induced ERK5 autophosphorylation with an EC50 of 0.09 ± 0.03 μM in cells. XMD17-109 also inhibits LRRK2[G2019S] with an IC50 of 339 nM[1]. XMD17-109 demonstrats low nanomolar cellular activity judged by the significant dose-dependent reduction of mobility shifted phosphorylated ERK5 bands from sorbitol stimulated cells. XMD17-109 completely inhibits the ERK5-mediated AP1 transcriptional activity at 30 μM and has an EC50 of 4.2 μM[2].

    Solvent & Solubility
    In Vitro:

    10 mM in DMSO

    Stock Solutions
    Concentration Solvent Mass 1 mg 5 mg 10 mg
    1 mM 1.5654 mL 7.8272 mL 15.6544 mL
    5 mM 0.3131 mL 1.5654 mL 3.1309 mL
    10 mM 0.1565 mL 0.7827 mL 1.5654 mL
    *Please refer to the solubility information to select the appropriate solvent.
    In Vivo:
    • 1.

      XMD17-109 is dissolved in 30% (2-hydroxypropyl)-β-cyclodextrin[2].

    Cell Assay

    HeLa cells are maintained in DMEM supplemented with 10% FBS, 2 mM l-glutamine, 50 U/mL penicillin G, and 50 μg/mL streptomycin. Before use HeLa cells are serum starved for 16 h in DMEM supplemented with 2 mM l-glutamine, 50 U/mL penicillin G, and 50 μg/mL streptomycin. HeLa cells are then incubated with ERK5-IN-1 at the indicated concentrations for 1 h prior to stimulation with 0.5mol/Lsorbitol for 30 min. Cells are lysed in Triton lysis buffer (50 mM Tris-HCl, pH 7.5, 1 mM EGTA, 1 mM EDTA, 1 mM sodium orthovanadate, 50 mM sodium fluoride, 1 mM sodium pyrophosphate, 0.27mol/Lsucrose, 1 μM microcystin-LR, 1% (v/v) Triton X-100, 0.1% (v/v) 2-mercaptoethanol) and 20 μg of protein loaded per well. Samples are run on 8% polyacrylamide gels using standard methods. Proteins are transferred onto nitrocellulose membranes and specific proteins detected by immunoblotting.

    MCE has not independently confirmed the accuracy of these methods. They are for reference only.

    Molecular Weight




    CAS No.




    Powder -20°C 3 years
      4°C 2 years
    In solvent -80°C 6 months
      -20°C 1 month

    Room temperature in continental US; may vary elsewhere

    • Molarity Calculator

    • Dilution Calculator

    The molarity calculator equation

    Mass (g) = Concentration (mol/L) × Volume (L) × Molecular Weight (g/mol)

    Mass   Concentration   Volume   Molecular Weight *
    = × ×

    The dilution calculator equation

    Concentration (start) × Volume (start) = Concentration (final) × Volume (final)

    This equation is commonly abbreviated as: C1V1 = C2V2

    Concentration (start) × Volume (start) = Concentration (final) × Volume (final)
    × = ×
    C1   V1   C2   V2
