Cat. No.: HY-14581

Copy Link Print Information

Palomid 529

(Synonyms: P529)

4 Cited Publications

Customer Review

Based on 4 publication(s) in Google Scholar

Palomid 529 is a potent inhibitor of mTORC1 and mTORC2 complexes.

For research use only. We do not sell to patients.

Purity: 99.37%
CAS No.: 914913-88-5
Formula: C₂₄H₂₂O₆
Molecular Weight:406.43

Storage:

Powder -20°C, 3 years , 4°C, 2 years ; In solvent -80°C, 2 years , -20°C, 1 year

Palomid 529 Chemical Structure

CAS No.: 914913-88-5

Size

Price

Stock

Quantity

Amount: USD 0.00

* Please select Quantity before adding items.

Top Publications Citing

Use of MCE Products

Fluorescent Dye

Strong Fluorescence Signal / Multi-Disciplinary Applications / High Fluorescence Specificity

Biological Activity
- Description
- IC₅₀ & Target
- In Vitro
- In Vivo
- Clinical Trial
Chemical Information
Publications (4)
Solvent & Solubility
- In Vitro
- In Vivo
Protocol
Purity & Documentation
References
Help & FAQs
Classifications
Bioz

Biological Activity

Description

Palomid 529 is a potent inhibitor of mTORC1 and mTORC2 complexes.

IC₅₀ & Target^[1]

TORC1

TORC2

All mTOR Isoforms :

In Vitro

Palomid 529 (P529) inhibits both VEGF-driven (IC₅₀, 20 nM) and bFGF-driven (IC₅₀, 30 nM) endothelial cell proliferation and retained the ability to induce endothelial cell apoptosis^[1]. Palomid 529 (RES-529) is a PI3K/AKT/mTOR pathway inhibitor that interferes with the pathway through both mTOR complex 1 (mTORC1) and mTOR complex 2 (mTORC2) dissociation. Palomid 529 inhibits mTORC1/mTORC2 activity in various cancer cell lines, as noted by decreased phosphorylation of substrates including ribosomal protein S6, 4E-BP1, and AKT, leading to cell growth inhibition and death, with activity generally in the range of 5-15 μM. At 10 μM concentrations, Palomid 529 reduces the binding of 0.5 nM [³H]estradiol to estrogen receptor (ER)α and ERβ by 3% or less. Palomid 529 inhibits both VEGF-stimulated and β fibroblast growth factor-stimulated HUVEC cell proliferation with IC₅₀ of ~10 and 30 nM, respectively. Treatment of HUVEC cells with Palomid 529 also results in a four-fold induction of apoptosis on the basis of DNA fragmentation. Growth inhibition is observed with Palomid 529 treatment in various cancer cell lines from the National Cancer Institute-60 (NCI-60) tumor panel, with IC₅₀ ranges of 5-15 μM for central nervous system cancer cells and 5-30 μM for prostate cancer cells^[2]. Palomid 529 (P529) results in a dose- and time-dependent decrease in Akt activity in PC3, LnCaP, and 22rv1 cells as evidenced by a reduced phosphorylation of Akt (Ser⁴⁷³). Similar results are observed in all PCa cells with similar enzymatic IC₅₀s of about 0.2 μM. Palomid 529 inhibits the cell proliferation of neoplastic cells at different extent (IC₅₀s ranged from 5 to 28 μM), whereas very few effects are observed in non-neoplastic BPH1 and EPN cells. Treatment with Palomid 529 results in a concentration-dependent reduction in viable/proliferating tumor cells compared with non-neoplastic BPH1 and EPN cells. IC₅₀s range from 5 to 28 μM^[3].

MedChemExpress (MCE) has not independently confirmed the accuracy of these methods. They are for reference only.

In Vivo

Palomid 529 (200 mg/kg/2d) inhibits C6V10 glioma tumor growth in nude mice following i.p. dosing. Analysis of signaling within the tumor lysates reveals that Palomid 529 (P529) also reduces AktS473 but not AktT308 signaling^[1]. Palomid 529 (RES-529) has shown antitumor activity in a variety of mouse models, including those for glioblastoma, and prostate and breast cancer. In a C6V10 glioblastoma subcutaneous xenograft model, mice pretreated with Palomid 529 (200 mg/kg/2 days, intraperitoneal) 1 week before and for 3 weeks after a tumor cell injection showed an ~70% decrease in tumor volume compared with the control. In another glioblastoma tumor model using human U87 cells, mice treated with micronized Palomid 529 3 days after a tumor cell injection showed a reduction in tumor growth by ~78 and 29% with 50 and 25 mg/kg/2 days, intraperitoneal, Palomid 529, respectively, after 24 days compared with the control^[2]. Palomid 529 (P529) is able to reduce tumor growth in a dose-dependent manner both in PC3 and 22rv1 xenografts. A 10, 47.6, and 59.3% reduction of tumor mass is demonstrated in mice bearing PC3 xenografts receiving 50, 100, and 200 mg/kg Palomid 529 respectively and a 9, 38.7, and 51.5% reduction of tumor mass in mice bearing 22rv1 xenografts receiving 50, 100, and 200 mg/kg Palomid 529 respectively^[3].

MedChemExpress (MCE) has not independently confirmed the accuracy of these methods. They are for reference only.

Clinical Trial

NCT Number	Sponsor	Condition	Start Date	Phase A549
NCT01329991	Plexxikon\|		2011-05	PHASE1

Chemical Information

CAS No. 914913-88-5
Appearance Solid
Molecular Weight 406.43
Formula C₂₄H₂₂O₆
Color White to off-white
SMILES

COC1=C(OCC2=CC=C(C=C2)OC)C=C3C(C4=C(C(O3)=O)C=C(C(C)O)C=C4)=C1
Synonyms

P529
Shipping

Room temperature in continental US; may vary elsewhere.

Storage

Powder	-20°C	3 years
	4°C	2 years
In solvent	-80°C	2 years
	-20°C	1 year

Publications (4)

All WB

Sort by:

Journal Impact Factor

Sci Transl Med

PP2A inhibition is a druggable MEK inhibitor resistance mechanism in KRAS-mutant lung cancer cells. [Abstract]

2018 Jul 18;10(450):eaaq1093. PMID: 30021885
Front Pharmacol

CC-223, NSC781406, and BGT226 Exerts a Cytotoxic Effect Against Pancreatic Cancer Cells via mTOR Signaling. [Abstract]

2020 Nov 11;11:580407. PMID: 33343350
Molecules

In Vitro and in Vivo Activity of mTOR Kinase and PI3K Inhibitors Against Leishmania donovani and Trypanosoma brucei. [Abstract]

2020 Apr 23;25(8):1980. PMID: 32340370
Biochem Biophys Res Commun

The anti-osteosarcoma cell activity by a mTORC1/2 dual inhibitor RES-529. [Abstract]

2018 Mar 4;497(2):499-505. PMID: 29432734

Palomid 529 purchased from MedChemExpress. Usage Cited in: Biochem Biophys Res Commun. 2018 Mar 4;497(2):499-505. [Abstract]

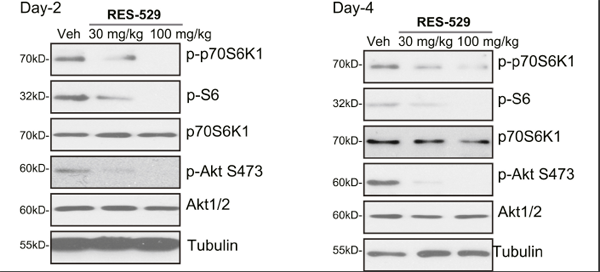

mTOR signaling in RES-529-treated or vehicle–treated tumor tissues is analyzed by a Western blotting assay.

Solvent & Solubility

In Vitro:

DMSO : 100 mg/mL (246.04 mM; Need ultrasonic; Hygroscopic DMSO has a significant impact on the solubility of product, please use newly opened DMSO)

View the Complete Stock Solution Preparation Table

Preparing Stock Solutions

View the Complete Stock Solution Preparation Table

Concentration Solvent Mass

1 mg

5 mg

10 mg

Concentration

Solvent

Mass

1 mM

2.4604 mL

12.3022 mL

24.6045 mL

5 mM

0.4921 mL

2.4604 mL

4.9209 mL

10 mM

0.2460 mL

1.2302 mL

2.4604 mL

Please refer to the solubility information to select the appropriate solvent. Once prepared, please aliquot and store the solution to prevent product inactivation from repeated freeze-thaw cycles.

Storage method and period of stock solution: -80°C, 2 years; -20°C, 1 year. When stored at -80°C, please use it within 2 years. When stored at -20°C, please use it within 1 year.

Molarity Calculator

Mass (g) = Concentration (mol/L) × Volume (L) × Molecular Weight (g/mol)

Mass Mass

Concentration Concentration

Volume Volume

Molecular Weight Molecular Weight

Dilution Calculator

Concentration _(start) × Volume _(start) = Concentration _(final) × Volume _(final)

Concentration _(start) Concentration _(start)

Volume _(start) Volume _(start)

Concentration _(final) Concentration _(final)

Volume _(final) Volume _(final)

In Vivo:

Select the appropriate dissolution method based on your experimental animal and administration route.

Stock Solution Working Solution

For the following dissolution methods, please ensure to first prepare a clear stock solution using an In Vitro approach and then sequentially add co-solvents:
To ensure reliable experimental results, the clarified stock solution can be appropriately stored based on storage conditions. As for the working solution for In Vivo experiments, it is recommended to prepare freshly and use it on the same day.
The percentages shown for the solvents indicate their volumetric ratio in the final prepared solution. If precipitation or phase separation occurs during preparation, heat and/or sonication can be used to aid dissolution.

Protocol 1

Add each solvent one by one: 10% DMSO 90% Corn Oil

Solubility: ≥ 2.5 mg/mL (6.15 mM); Clear solution

This protocol yields a clear solution of ≥ 2.5 mg/mL (saturation unknown). If the continuous dosing period exceeds half a month, please choose this protocol carefully.

Taking 1 mL working solution as an example, add 100 μL DMSO stock solution (25.0 mg/mL) to 900 μL Corn oil, and mix evenly.

In Vivo Dissolution Calculator

Please enter the basic information of animal experiments:

Dosage Dosage
mg/kg
Animal Weight (Per Animal) Animal Weight (Per Animal)
g
Dosing Volume (Per Animal) Dosing Volume (Per Animal)
μL
Number of Animals Number of Animals

Recommended: Prepare an additional quantity of animals to account for potential losses during experiments.

Recommended: Prepare an additional quantity of animals to account for potential losses during experiments.

Please enter your animal formula composition:

%
DMSO +

Recommended: Keep the proportion of DMSO in working solution below 2% if your animal is weak.
%
+
+
%
Tween-80 + +
%
Saline +

The co-solvents required include: DMSO, . All of co-solvents are available by MedChemExpress (MCE). , Tween 80. All of co-solvents are available by MedChemExpress (MCE).

Working solution concentration: 0.22 mg/mL

Protocol

Kinase Assay^[1]

The proteins are produced with rabbit reticulocyte lysates that couples transcription and translation in a single reaction. The amount of template used in each reaction is determined empirically and expression is monitored in parallel reactions where [³⁵S]methionine is incorporated into the receptor followed by gel electrophoresis and exposure to film. Binding reactions of the estrogen receptors (ER) and Palomid 529 (P529) are carried out in 100 mL final volumes in TEG buffer [10 mM Tris (pH 7.5), 1.5 mM EDTA, 10% glycerol]. In vitro transcribed-translated receptor (5 AL) is used in each binding reaction in the presence of 0.5 nM [³H]estradiol (E₂). All compounds are routinely tested from 10−11 to 10−6 M and diluted in ethanol. The reactions are incubated at 4°C overnight and bound E₂ is quantified by adding 200 mL dextran-coated charcoal. After a 15-min rotation at 4°C, the tubes are centrifuged for 10 min and 150 mL of the supernatant are added to 5 mL scintillation mixture for determination of cpm by liquid scintillation counting. The maximum binding is determined by competing bound E₂ with only the ethanol vehicle. Controls for background are included in each experiment using 5 mL unprogrammed rabbit reticulocyte lysate. This value, typically 10% to 15% of the maximal counts, is subtracted from all values. The data are plotted and K_is are calculated using the Prism software. Experiments are conducted at least thrice in duplicate^[1].

MedChemExpress (MCE) has not independently confirmed the accuracy of these methods. They are for reference only.

Cell Assay^[1]

The proliferation assay is carried out by seeding the HUVECs in 96-well plates at a density of 1,000 per well in complete medium. Following a 24-h plating period, the cells are starved for 24 h in 0.5% serum before being treated with Palomid 529 in the presence of 10 ng/mL basic fibroblast growth factor (bFGF) or VEGF in complete medium. After 48 h, cell number is determined using a colorimetric method as described by the supplier. The results are expressed as the percentage of the maximal bFGF or VEGF response in the absence of P529. Nonproliferating endothelial cells are assayed by growing HUVECs to quiescence in 96-well plates and treating with Palomid 529 (0, 100, 200, 300 and 400 nM) for 48 h. Initially, 5,000 cells per well are seeded and confluence is achieved the next day. The plates are incubated for another 24 h to ensure growth arrest before treatment with P529. Cell number is determined as outlined above^[1].

MedChemExpress (MCE) has not independently confirmed the accuracy of these methods. They are for reference only.

Animal Administration^[1]

Mice^[1]
Four- to 6-wk-old female nude mice are pretreated with Palomid 529 (200 mg/kg/2d, i.p.) for 1 wk, and then 1×10⁵ C6V10 rat glioma cells are injected s.c.. Treatment continued while tumors are allowed to grow for 21 d. U87 cells (3×10⁶/100 AL) are injected s.c. into nude mice. From day 3 after injection of tumor cells, mice are treated by micronized Palomid 529 (P529) at doses of 50 mg and 25 mg/kg/2 d i.p., respectively. Mice without drug treatment served as controls. U87 tumors are allowed to grow for 24 d. During drug treatment, tumor volumes are measured with a caliper and estimated as length×width×width×0.53. Animals are euthanized and the tumors are taken for immunohistologic and immunoblotting studies.

MedChemExpress (MCE) has not independently confirmed the accuracy of these methods. They are for reference only.

Purity & Documentation

Select Batch:

Purity: 99.98%

Assay: 99.98%

ee.: 99.98%

Data Sheet (283 KB)
SDS (479 KB)
- English - EN (479 KB)
- Français - FR (479 KB)
- Deutsch - DE (479 KB)
- Norwegian - NO (479 KB)
- Español - ES (479 KB)
- Swedish - SV (479 KB)
- Italian - IT (479 KB)
- Korean - KR (479 KB)
- Portuguese - PT (479 KB)
COA (2659 KB)
Elemental Analysis Report (2659 KB)
HNMR (2659 KB)
CNMR (2659 KB)
RP-HPLC (2659 KB)
NP-HPLC (2659 KB)
MS (2659 KB)
LCMS (2659 KB)
IR (2659 KB)
GC (2659 KB)
OR (2659 KB)
SDS-PAGE (2659 KB)
SEC-HPLC (2659 KB)
Other Report (2659 KB)
Handling Instructions (2659 KB)

References

[1]. Xue Q, et al. Palomid 529, a novel small-molecule drug, is a TORC1/TORC2 inhibitor that reduces tumor growth, tumor angiogenesis, and vascular permeability. Cancer Res, 2008, 68(22), 9551-9557. [Content Brief]

[2]. Weinberg MA, et al. RES-529: a PI3K/AKT/mTOR pathway inhibitor that dissociates the mTORC1 and mTORC2 complexes. Anticancer Drugs. 2016 Jul;27(6):475-87. [Content Brief]

[3]. Gravina GL, et al. The TORC1/TORC2 inhibitor, Palomid 529, reduces tumor growth and sensitizes to docetaxel andcisplatin in aggressive and hormone-refractory prostate cancer cells. Endocr Relat Cancer. 2011 Jul 1;18(4):385-400. [Content Brief]

Help & FAQs

How should lyophilized recombinant proteins be reconstituted and stored?

1. Before opening the cap, centrifuge the vial at 13000 rpm for 20-30 seconds. This step will ensure that any lyophilized powder that may have adhered to the cap or walls is collected at the bottom of the vial, minimizing the risk of product loss.

Complete Stock Solution Preparation Table

Storage method and period of stock solution: -80°C, 2 years; -20°C, 1 year. When stored at -80°C, please use it within 2 years. When stored at -20°C, please use it within 1 year.

Optional Solvent	Concentration Solvent Mass	1 mg	5 mg	10 mg	25 mg
DMSO	1 mM	2.4604 mL	12.3022 mL	24.6045 mL	61.5112 mL
	5 mM	0.4921 mL	2.4604 mL	4.9209 mL	12.3022 mL
	10 mM	0.2460 mL	1.2302 mL	2.4604 mL	6.1511 mL
	15 mM	0.1640 mL	0.8201 mL	1.6403 mL	4.1007 mL
	20 mM	0.1230 mL	0.6151 mL	1.2302 mL	3.0756 mL
	25 mM	0.0984 mL	0.4921 mL	0.9842 mL	2.4604 mL
	30 mM	0.0820 mL	0.4101 mL	0.8201 mL	2.0504 mL
	40 mM	0.0615 mL	0.3076 mL	0.6151 mL	1.5378 mL
	50 mM	0.0492 mL	0.2460 mL	0.4921 mL	1.2302 mL
	60 mM	0.0410 mL	0.2050 mL	0.4101 mL	1.0252 mL
	80 mM	0.0308 mL	0.1538 mL	0.3076 mL	0.7689 mL
	100 mM	0.0246 mL	0.1230 mL	0.2460 mL	0.6151 mL
