CL097 hydrochloride

Name: CL097 hydrochloride
Brand: MedChemExpress
SKU: HY-128799A
Rating: 5.0 (2 reviews)

Cat. No.: HY-128799A Purity: 99.96%: Data Sheet
COA

SDS
Handling Instructions
FAQs
Technical Support

CL097, a potent TLR7 and TLR8 agonist, induces pro-inflammatory cytokines in macrophages. CL097 induces NADPH oxidase priming, resulting in an increase of the fMLF-stimulated ROS production.

For research use only. We do not sell to patients.

CAS No. : 2990770-48-2

Size	Stock	Quantity
Solid + Solvent (Highly Recommended)
10 mM * 1 mL in DMSO ready for reconstitution	In-stock	Estimated Time of Arrival: December 31
Solution
10 mM * 1 mL in DMSO	In-stock	Estimated Time of Arrival: December 31
Solid
5 mg	In-stock	Estimated Time of Arrival: December 31
10 mg	In-stock	Estimated Time of Arrival: December 31
50 mg	Get quote
100 mg	Get quote

or Bulk Inquiry

* Please select Quantity before adding items.

This product is a controlled substance and not for sale in your territory.

Customer Review

Based on 2 publication(s) in Google Scholar

Other Forms of CL097 hydrochloride:

CL097 In-stock

2 Publications Citing Use of MCE CL097 hydrochloride

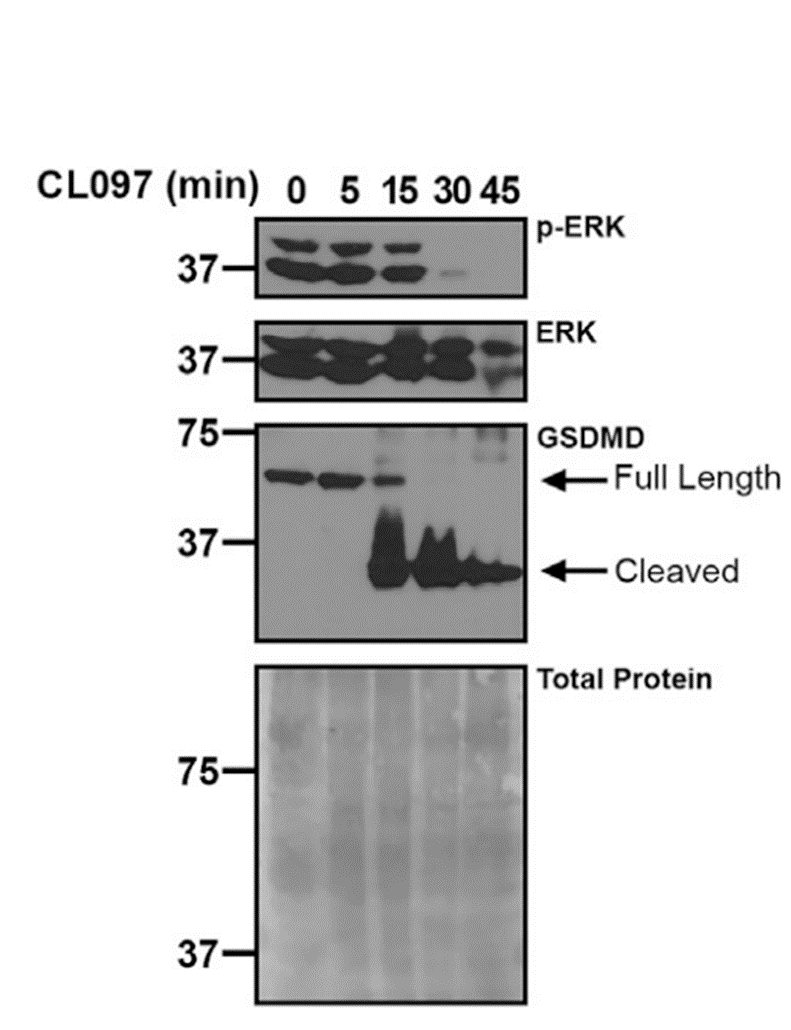

: CL097 hydrochloride purchased from MedChemExpress. Usage Cited in: Cell Rep. 2025 Feb 20;44(3):115340. [Abstract]; iBMDMs were primed with LPS and stimulated with 70 μM CL097 over a time course of 45 min. Cellular lysates were examined by western blot for changes in ERK1/2 phosphorylation and GSDMD cleavage.

Featured Recommendations

•Related Screening Libraries:

•Related Small Molecules:

•Related Proteins:

View All Toll-like Receptor (TLR) Isoform Specific Products:

View All Isoforms

TLR3 TLR8 TLR9 TLR2 TLR4 TLR7 TLR1 TLR6

Biological Activity
Purity & Documentation
References
Customer Review

Description

CL097, a potent TLR7 and TLR8 agonist, induces pro-inflammatory cytokines in macrophages^[1]. CL097 induces NADPH oxidase priming, resulting in an increase of the fMLF-stimulated ROS production^[2].

IC₅₀ & Target

TLR7

TLR8

In Vitro

CL097 induces activation of NF-κB at 0.1 μM in TLR7 transfected HEK293 cells and at 4 μM in TLR8-transfected HEK293 cells^[1].
CL097 induces hyperactivation of the NADPH oxidase by stimulating the phosphorylation of p47phox on selective sites in human neutrophils and suggest that p38 MAPK, ERK1/2, protein kinase C, and Pin1 control this process. CL097 induces the phosphorylation of p47phox on specific sites and enhances fMLF-induced p47phox phosphorylation^[2].

MedChemExpress (MCE) has not independently confirmed the accuracy of these methods. They are for reference only.

Western Blot Analysis^[2]

Cell Line:	Neutrophils
Concentration:	0, 0.5, 2.5, 5, and 10 μg/mL
Incubation Time:	Pretreated for 30 minutes
Result:	Induced phosphorylation of p47phox on specific sites in a concentration-dependent manner.

In Vivo

CL097 and CD40 agonist stimulation induces efficient diabetogenic Cytotoxic T lymphocyte (CTL) function in NOD mice. CL097 (5 mg/kg, s.c.) alone causes a modest specific lysis of the target peptide (∼25%). However, treatment with a combination of CL097 and CD40 agonist (10 mg/kg, i.p.) results in an increase of approximately twofold in the specific lysis of the IGRP-peptide-coated targets compared with CL097 treatment alone^[3].

MedChemExpress (MCE) has not independently confirmed the accuracy of these methods. They are for reference only.

Animal Model:	Female 8.3 NOD mice (5-6 weeks old)^[3]
Dosage:	5 mg/kg
Administration:	Injected s.c.
Result:	Caused a modest specific lysis of the target peptide (∼25%).

Molecular Weight

278.74

Formula

C₁₃H₁₅ClN₄O

CAS No.

2990770-48-2

Appearance

Solid

Color

White to off-white

SMILES

NC1=NC2=CC=CC=C2C3=C1NC(COCC)=N3.[H]Cl

Shipping

Room temperature in continental US; may vary elsewhere.

Storage

4°C, sealed storage, away from moisture

*In solvent : -80°C, 6 months; -20°C, 1 month (sealed storage, away from moisture)

Solvent & Solubility

In Vitro:

DMSO : 100 mg/mL (358.76 mM; Need ultrasonic; Hygroscopic DMSO has a significant impact on the solubility of product, please use newly opened DMSO)

H₂O : 5 mg/mL (17.94 mM; ultrasonic and warming and heat to 60°C)

Preparing
Stock Solutions

Concentration Solvent Mass	1 mg	5 mg	10 mg

1 mM	3.5876 mL	17.9379 mL	35.8757 mL
5 mM	0.7175 mL	3.5876 mL	7.1751 mL
10 mM	0.3588 mL	1.7938 mL	3.5876 mL

View the Complete Stock Solution Preparation Table

* Please refer to the solubility information to select the appropriate solvent. Once prepared, please aliquot and store the solution to prevent product inactivation from repeated freeze-thaw cycles.
Storage method and period of stock solution: -80°C, 6 months; -20°C, 1 month (sealed storage, away from moisture). When stored at -80°C, please use it within 6 months. When stored at -20°C, please use it within 1 month.

* Note: If you choose water as the stock solution, please dilute it to the working solution, then filter and sterilize it with a 0.22 μm filter before use.

Molarity Calculator
Dilution Calculator

Mass (g) = Concentration (mol/L) × Volume (L) × Molecular Weight (g/mol)

Concentration _(start) × Volume _(start) = Concentration _(final) × Volume _(final)

This equation is commonly abbreviated as: C₁V₁ = C₂V₂

Concentration _(start)

Volume _(start)

Concentration _(final)

Volume _(final)

In Vivo:

Select the appropriate dissolution method based on your experimental animal and administration route.

For the following dissolution methods, please ensure to first prepare a clear stock solution using an In Vitro approach and then sequentially add co-solvents:
To ensure reliable experimental results, the clarified stock solution can be appropriately stored based on storage conditions. As for the working solution for in vivo experiments, it is recommended to prepare freshly and use it on the same day.
The percentages shown for the solvents indicate their volumetric ratio in the final prepared solution. If precipitation or phase separation occurs during preparation, heat and/or sonication can be used to aid dissolution.

Protocol 1

Add each solvent one by one: 10% DMSO 40% PEG300 5% Tween-80 45% Saline
Solubility: ≥ 2.5 mg/mL (8.97 mM); Clear solution

This protocol yields a clear solution of ≥ 2.5 mg/mL (saturation unknown).
Taking 1 mL working solution as an example, add 100 μL DMSO stock solution (25.0 mg/mL) to 400 μL PEG300, and mix evenly; then add 50 μL Tween-80 and mix evenly; then add 450 μL Saline to adjust the volume to 1 mL.
Preparation of Saline: Dissolve 0.9 g sodium chloride in ddH₂O and dilute to 100 mL to obtain a clear Saline solution.
Protocol 2

Add each solvent one by one: 10% DMSO 90% (20% SBE-β-CD in Saline)
Solubility: ≥ 2.5 mg/mL (8.97 mM); Clear solution

This protocol yields a clear solution of ≥ 2.5 mg/mL (saturation unknown).
Taking 1 mL working solution as an example, add 100 μL DMSO stock solution (25.0 mg/mL) to 900 μL 20% SBE-β-CD in Saline, and mix evenly.
Preparation of 20% SBE-β-CD in Saline (4°C, storage for one week): 2 g SBE-β-CD powder is dissolved in 10 mL Saline, completely dissolve until clear.
Protocol 3

Add each solvent one by one: 10% DMSO 90% Corn Oil
Solubility: ≥ 2.5 mg/mL (8.97 mM); Clear solution

This protocol yields a clear solution of ≥ 2.5 mg/mL (saturation unknown). If the continuous dosing period exceeds half a month, please choose this protocol carefully.
Taking 1 mL working solution as an example, add 100 μL DMSO stock solution (25.0 mg/mL) to 900 μL Corn oil, and mix evenly.

In Vivo Dissolution Calculator

Please enter the basic information of animal experiments:

Dosage

mg/kg

Animal weight
(per animal)

Dosing volume
(per animal)

μL

Number of animals

Recommended: Prepare an additional quantity of animals to account for potential losses during experiments.

Please enter your animal formula composition:

DMSO +

Tween-80 +

Saline

Recommended: Keep the proportion of DMSO in working solution below 2% if your animal is weak.

The co-solvents required include: DMSO, . All of co-solvents are available by MedChemExpress (MCE). , Tween 80. All of co-solvents are available by MedChemExpress (MCE).

Calculation results:

Working solution concentration: mg/mL

Method for preparing stock solution: mg drug dissolved in μL DMSO (Stock solution concentration: mg/mL).

*In solvent : -80°C, 6 months; -20°C, 1 month (sealed storage, away from moisture)

The concentration of the stock solution you require exceeds the measured solubility. The following solution is for reference only. If necessary, please contact MedChemExpress (MCE).

Method for preparing in vivo working solution for animal experiments: Take μL DMSO stock solution, add μL . μL , mix evenly, next add μL Tween 80, mix evenly, then add μL Saline.

If the continuous dosing period exceeds half a month, please choose this protocol carefully.

Please ensure that the stock solution in the first step is dissolved to a clear state, and add co-solvents in sequence. You can use ultrasonic heating (ultrasonic cleaner, recommended frequency 20-40 kHz), vortexing, etc. to assist dissolution.

Purity & Documentation

Purity: 99.96%

Select Batch:

Data Sheet (279 KB) SDS (252 KB)

COA (253 KB) HNMR (141 KB) RP-HPLC (169 KB) LCMS (100 KB)

Handling Instructions (2659 KB)

References

[1]. Cindy Patinote, et al. Agonist and antagonist ligands of toll-like receptors 7 and 8: Ingenious tools for therapeutic purposes. Eur J Med Chem. 2020 May 1;193:112238. [Content Brief]

[2]. Karama Makni-Maalej, et al. The TLR7/8 agonist CL097 primes N-formyl-methionyl-leucyl-phenylalanine-stimulated NADPH oxidase activation in human neutrophils: critical role of p47phox phosphorylation and the proline isomerase Pin1. J Immunol. 2012 Nov 1;189(9):4657-65. [Content Brief]

[3]. A S Lee, et al. Toll-like receptor 7 stimulation promotes autoimmune diabetes in the NOD mouse. Diabetologia. 2011 Jun;54(6):1407-16. [Content Brief]

Complete Stock Solution Preparation Table

Optional Solvent	Concentration Solvent Mass	1 mg	5 mg	10 mg	25 mg

H₂O / DMSO	1 mM	3.5876 mL	17.9379 mL	35.8757 mL	89.6893 mL
	5 mM	0.7175 mL	3.5876 mL	7.1751 mL	17.9379 mL
	10 mM	0.3588 mL	1.7938 mL	3.5876 mL	8.9689 mL
	15 mM	0.2392 mL	1.1959 mL	2.3917 mL	5.9793 mL
DMSO	20 mM	0.1794 mL	0.8969 mL	1.7938 mL	4.4845 mL
	25 mM	0.1435 mL	0.7175 mL	1.4350 mL	3.5876 mL
	30 mM	0.1196 mL	0.5979 mL	1.1959 mL	2.9896 mL
	40 mM	0.0897 mL	0.4484 mL	0.8969 mL	2.2422 mL
	50 mM	0.0718 mL	0.3588 mL	0.7175 mL	1.7938 mL
	60 mM	0.0598 mL	0.2990 mL	0.5979 mL	1.4948 mL
	80 mM	0.0448 mL	0.2242 mL	0.4484 mL	1.1211 mL
	100 mM	0.0359 mL	0.1794 mL	0.3588 mL	0.8969 mL

* Note: If you choose water as the stock solution, please dilute it to the working solution, then filter and sterilize it with a 0.22 μm filter before use.
