Emodin (Synonyms: Frangula emodin)

Cat. No.: HY-14393 Purity: >98.0%
Handling Instructions

Emodin is a broad-spectrum anticancer agent. Emodin inhibits casein kinase II (CKII) activity with IC50 of 2 μM.

For research use only. We do not sell to patients.

Emodin Chemical Structure

Emodin Chemical Structure

CAS No. : 518-82-1

Size Price Stock Quantity
Free Sample (0.5-1 mg)   Apply now
10 mM * 1 mL in DMSO USD 55 In-stock
Estimated Time of Arrival: December 31
50 mg USD 50 In-stock
Estimated Time of Arrival: December 31
100 mg USD 70 In-stock
Estimated Time of Arrival: December 31
200 mg USD 130 In-stock
Estimated Time of Arrival: December 31
500 mg   Get quote
1 g   Get quote

* Please select Quantity before adding items.

Customer Review

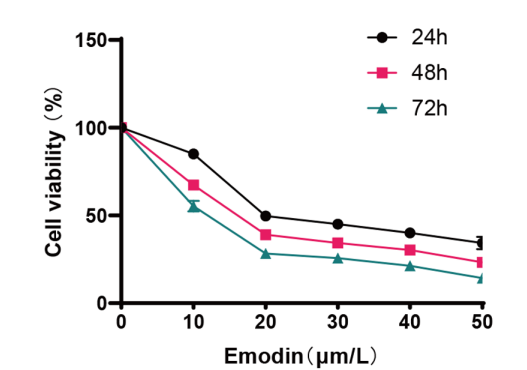

Based on 2 publication(s) in Google Scholar

Top Publications Citing Use of Products

View All Casein Kinase Isoform Specific Products:

  • Biological Activity

  • Protocol

  • Purity & Documentation

  • References

  • Customer Review


Emodin is a broad-spectrum anticancer agent. Emodin inhibits casein kinase II (CKII) activity with IC50 of 2 μM.

IC50 & Target[1]


2 μM (IC50)

In Vitro

Emodin, an anthraquinone derivative, selectively inhibits casein kinase II(CKII), a Ser/Thr kinase, as a competitive inhibitor. Emodin inhibits CKII activity with IC50 of 2 μM, which is two to three orders of magnitude lower than those against the other kinases. Enzyme kinetic assays show that Emodin inhibits CKII activity as acompetitive inhibitor against ATP with Ki of 7.2 μM[1]. Emodin is a broad-spectrum inhibitory agent of cancer cells, including leukemia, lung cancer, human tongue squamous cancer, colon cancer, gallbladder cancer, pancreatic cancer, breast cancer, human cervical cancer and hepatic carcinoma cells. Emodin inhibits A549, HepG2, OVCAR-3, HeLa and Madin-Darby Canine Kidney (MDCK) cells with IC50 of 19.54, 12.79, 25.82, 12.14 and 5.81 μg/mL. The anticancer mechanisms of Emodin are involved in many biological pathways, such as casein kinase II and ERK1/2[2]. Emodin is applied as a Reactive oxygen species (ROS) generator in combination with cisplatin in T24 and J82 human bladder cancer cells. Emodin kills T24 and J82 cells in the dose-dependent and time-dependent manner, and it is less toxic to HCV-29 cells. The concentration of 20 and 15 μM is selected as appropriate doses for investigating chemotherapeutic sensitivity of T24 and J82 cells at 24 h, respectively[3].

In Vivo

Mice treated with Emodin (50 mg/kg) and Cisplatin (1 mg/kg) have significantly smaller tumors than those from the other groups. In addition, no notable differences on the body weight loss are observed among groups and no obvious necrosis and abnormity are observed in the sections of liver, kidney and heart. These results demonstrate that Emodin/cisplatin co-treatment can significantly suppress tumor growth in vivo with no distinct side effects. Consistent with in vitro experiment, TUNEL assay shows that Emodin/cisplatin combination significantly increased cell apoptosis in xenograft tumors. Emodin/Cisplatin co-treatment group also has lower MRP1 expression than the other groups[3].

Clinical Trial
Molecular Weight









Room temperature in continental US; may vary elsewhere.

Powder -20°C 3 years
  4°C 2 years
In solvent -80°C 6 months
  -20°C 1 month
Solvent & Solubility
In Vitro:

DMSO : 9.4 mg/mL (34.78 mM; Need ultrasonic and warming)

H2O : < 0.1 mg/mL (insoluble)

Stock Solutions
Concentration Solvent Mass 1 mg 5 mg 10 mg
1 mM 3.7004 mL 18.5021 mL 37.0041 mL
5 mM 0.7401 mL 3.7004 mL 7.4008 mL
10 mM 0.3700 mL 1.8502 mL 3.7004 mL
*Please refer to the solubility information to select the appropriate solvent.
In Vivo:
  • 1.

    Add each solvent one by one:  10% DMSO    90% (20% SBE-β-CD in saline)

    Solubility: 1.25 mg/mL (4.63 mM); Suspended solution; Need ultrasonic

  • 2.

    Add each solvent one by one:  10% DMSO    90% corn oil

    Solubility: ≥ 1.25 mg/mL (4.63 mM); Clear solution

*All of the co-solvents are provided by MCE.
Cell Assay

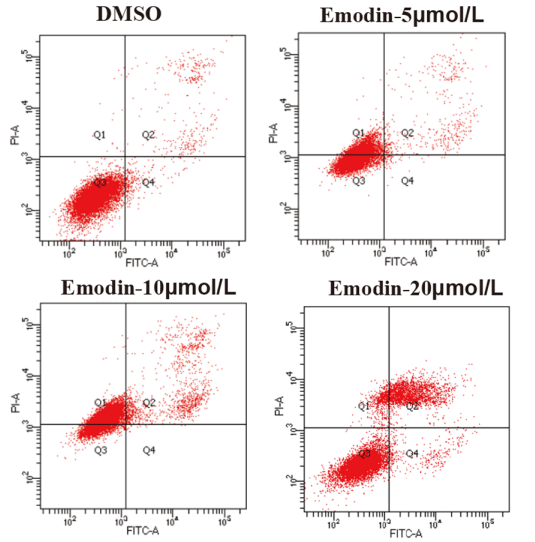

The T24 human bladder cancer cells, the HCV-29 normal bladder epithelial cells and J82 human bladder cancer cells are are cultured in RPMI 1640 medium supplemented with 10 % fetal bovine serum at 37°C in a humidified atmosphere containing 5 % CO2. Cells are seeded in 96-well plates with 2×104 cells per well. The cells are incubated with Emodin for 24 h at different concentrations (0, 5, 10, 20, 30, 40, 50, 60, 70 μM) and chose the critical concentration (20 μM) treated with cells for 0, 6, 12, 24, 48, 72, 96 h. The cells are incubated with cisplatin for 24 h at different concentrations (0, 0.5, 1.0, 1.5, 2.0, 2.5, 3.0 μg/mL). MTT assay is used to analyze the cell viability. Cells are treated with drugs for 24 h and apoptotic rates are assessed with flow cytometry using AnnexinV-fluorescein isothiocyanate (AnnexinV-FITC)/propidium iodide (PI) kit. Samples are prepared according to the manufacturer’s instruction and analyzed by a flow cytometry (FCM) Calibur[3].

MCE has not independently confirmed the accuracy of these methods. They are for reference only.

Animal Administration

3×106 T24 cells are harvested, washed, and resuspended in serum-free optimum medium and then injected subcutaneously into 6-week old BALB/c-nu/nu mice (n=8 mice per group). Three days after inoculation, the mice are intraperitoneally administered with PBS, Emodin (50 mg/kg), Cisplatin (1 mg/kg), or Emodin/cisplatin every two days. On day 18, every mouse is sacrificed. After body weight measurement, tumors are isolated, weighted and fixed in 4 % paraformaldehyde (PFA). Hearts, livers and kidneys are stained with Hematoxylin & Eosin to determine the systemic toxicity. Terminal deoxynucleotidyl transferase(TdT)-mediated dUTP nick end label (TUNEL) assay is performed on paraformaldehyde-fixed and paraffin-embedded tumor sections.

MCE has not independently confirmed the accuracy of these methods. They are for reference only.


Purity: >98.0%

  • No file chosen (Maximum size is: 1024 Kb)
  • If you have published this work, please enter the PubMed ID.
  • Your name will appear on the site.
  • Molarity Calculator

  • Dilution Calculator

The molarity calculator equation

Mass (g) = Concentration (mol/L) × Volume (L) × Molecular Weight (g/mol)

Mass   Concentration   Volume   Molecular Weight *
= × ×

The dilution calculator equation

Concentration (start) × Volume (start) = Concentration (final) × Volume (final)

This equation is commonly abbreviated as: C1V1 = C2V2

Concentration (start) × Volume (start) = Concentration (final) × Volume (final)
× = ×
C1   V1   C2   V2
