2. Immunology/Inflammation
  3. CD73
  4. AB-680

AB-680 is a highly potent, reversible and selective inhibitor of CD73 (an ecto-nucleotidase), with a Ki of 4.9 pM for hCD73, displays >10,000-fold selectivity over related ecto-nucleotidases CD39. Anti-tumor activity.

For research use only. We do not sell to patients.

AB-680 Chemical Structure

AB-680 Chemical Structure

CAS No. : 2105904-82-1

Size Price Stock Quantity
Solid + Solvent (Highly Recommended)
10 mM * 1 mL in DMSO
ready for reconstitution
 In-stock
Solution
10 mM * 1 mL in DMSO In-stock
Solid
1 mg In-stock
5 mg In-stock
10 mg In-stock
25 mg In-stock
50 mg In-stock
100 mg In-stock
200 mg   Get quote
500 mg   Get quote

* Please select Quantity before adding items.

This product is a controlled substance and not for sale in your territory.

Customer Review

Based on 11 publication(s) in Google Scholar

Other Forms of AB-680:

AB-680 Related Antibodies

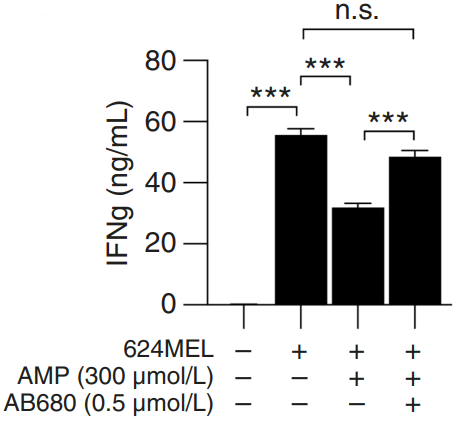

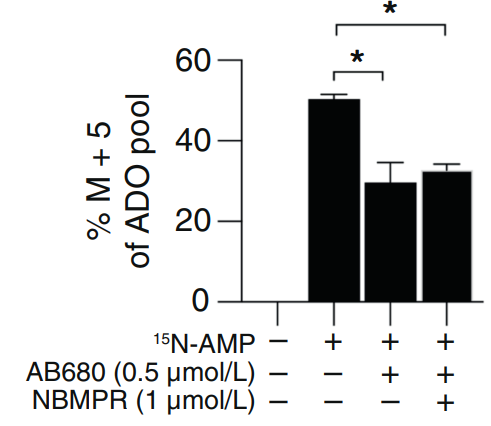

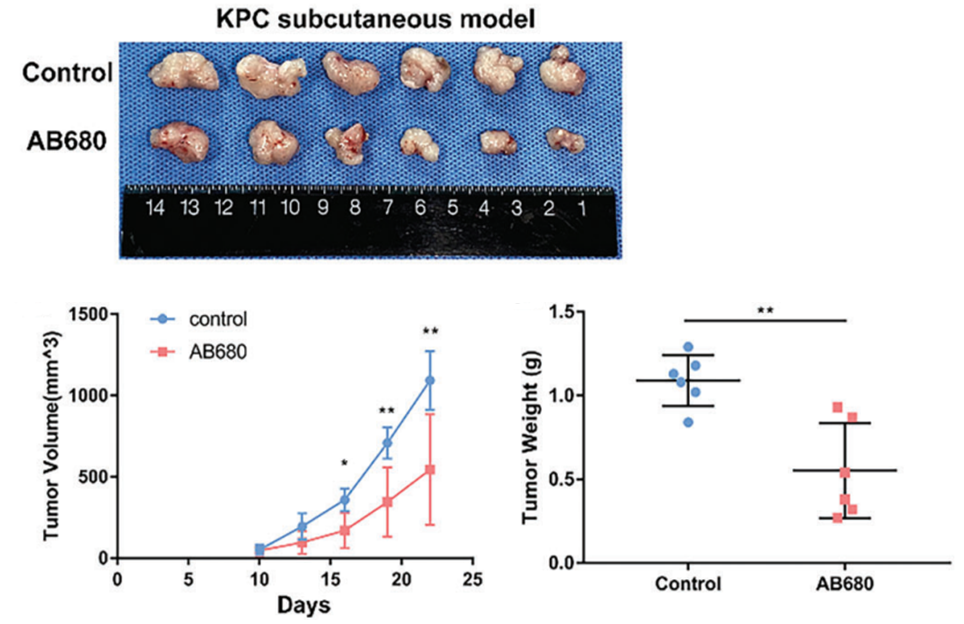

Top Publications Citing Use of Products

  • Biological Activity

  • Purity & Documentation

  • References

  • Customer Review

Description

AB-680 is a highly potent, reversible and selective inhibitor of CD73 (an ecto-nucleotidase), with a Ki of 4.9 pM for hCD73, displays >10,000-fold selectivity over related ecto-nucleotidases CD39. Anti-tumor activity[1].

IC50 & Target

Ki: 4.9 pM (hCD73)[1]
IC50: 43 pM (Soluble hCD73)[1]
In Vitro

AB-680 (AB680) inhibits soluble hCD73 with an IC50 of 0.043 nM, also inhibits hCD73 in CHO cells, suppresses CD73 in human, mouse CD8+ T Cells and hPBMC, with IC50s of 0.070, 0.008, 0.66 and 0.011 nM, respectively[1].

MedChemExpress (MCE) has not independently confirmed the accuracy of these methods. They are for reference only.

AB-680 Related Antibodies
Clinical Trial
Molecular Weight

580.82

Formula

C20H24ClFN4O9P2
CAS No.
Appearance

Solid

Color

White to off-white

SMILES

O=P(CP(O)(O)=O)(O)OC[C@@H]1[C@@H](O)[C@@H](O)[C@H](N2C(N=C(Cl)C=C3N[C@H](C4=CC=CC=C4F)C)=C3C=N2)O1
Shipping

Room temperature in continental US; may vary elsewhere.
Storage

-20°C, stored under nitrogen

*In solvent : -80°C, 1 year; -20°C, 6 months (stored under nitrogen)

Solvent & Solubility
In Vitro:

DMSO : 200 mg/mL (344.34 mM; Need ultrasonic; Hygroscopic DMSO has a significant impact on the solubility of product, please use newly opened DMSO)

H2O : 5 mg/mL (8.61 mM; ultrasonic and warming and heat to 60°C)

Preparing
Stock Solutions
Concentration Solvent Mass 1 mg 5 mg 10 mg
1 mM 1.7217 mL 8.6085 mL 17.2170 mL
5 mM 0.3443 mL 1.7217 mL 3.4434 mL
View the Complete Stock Solution Preparation Table

* Please refer to the solubility information to select the appropriate solvent. Once prepared, please aliquot and store the solution to prevent product inactivation from repeated freeze-thaw cycles.
Storage method and period of stock solution: -80°C, 1 year; -20°C, 6 months (stored under nitrogen). When stored at -80°C, please use it within 1 year. When stored at -20°C, please use it within 6 months.

* Note: If you choose water as the stock solution, please dilute it to the working solution, then filter and sterilize it with a 0.22 μm filter before use.

  • Molarity Calculator

  • Dilution Calculator

Mass (g) = Concentration (mol/L) × Volume (L) × Molecular Weight (g/mol)

Mass
=
Concentration
×
Volume
×
Molecular Weight *

Concentration (start) × Volume (start) = Concentration (final) × Volume (final)

This equation is commonly abbreviated as: C1V1 = C2V2

Concentration (start)

C1

×
Volume (start)

V1

=
Concentration (final)

C2

×
Volume (final)

V2

In Vivo:

Select the appropriate dissolution method based on your experimental animal and administration route.

For the following dissolution methods, please ensure to first prepare a clear stock solution using an In Vitro approach and then sequentially add co-solvents:
To ensure reliable experimental results, the clarified stock solution can be appropriately stored based on storage conditions. As for the working solution for in vivo experiments, it is recommended to prepare freshly and use it on the same day.
The percentages shown for the solvents indicate their volumetric ratio in the final prepared solution. If precipitation or phase separation occurs during preparation, heat and/or sonication can be used to aid dissolution.

  • Protocol 1

    Add each solvent one by one:  10% DMSO    40% PEG300    5% Tween-80    45% Saline

    Solubility: ≥ 7.5 mg/mL (12.91 mM); Clear solution

    This protocol yields a clear solution of ≥ 7.5 mg/mL (saturation unknown).

    Taking 1 mL working solution as an example, add 100 μL DMSO stock solution (75.0 mg/mL) to 400 μL PEG300, and mix evenly; then add 50 μL Tween-80 and mix evenly; then add 450 μL Saline to adjust the volume to 1 mL.

    Preparation of Saline: Dissolve 0.9 g sodium chloride in ddH₂O and dilute to 100 mL to obtain a clear Saline solution.
  • Protocol 2

    Add each solvent one by one:  10% DMSO    90% (20% SBE-β-CD in Saline)

    Solubility: ≥ 7.5 mg/mL (12.91 mM); Clear solution

    This protocol yields a clear solution of ≥ 7.5 mg/mL (saturation unknown).

    Taking 1 mL working solution as an example, add 100 μL DMSO stock solution (75.0 mg/mL) to 900 μL 20% SBE-β-CD in Saline, and mix evenly.

    Preparation of 20% SBE-β-CD in Saline (4°C, storage for one week): 2 g SBE-β-CD powder is dissolved in 10 mL Saline, completely dissolve until clear.
In Vivo Dissolution Calculator
Please enter the basic information of animal experiments:

Dosage

mg/kg

Animal weight
(per animal)

g

Dosing volume
(per animal)

μL

Number of animals

Recommended: Prepare an additional quantity of animals to account for potential losses during experiments.
Please enter your animal formula composition:
%
DMSO +
%
+
%
Tween-80 +
%
Saline
Recommended: Keep the proportion of DMSO in working solution below 2% if your animal is weak.
The co-solvents required include: DMSO, . All of co-solvents are available by MedChemExpress (MCE). , Tween 80. All of co-solvents are available by MedChemExpress (MCE).
Calculation results:
Working solution concentration: mg/mL
Method for preparing stock solution: mg drug dissolved in μL  DMSO (Stock solution concentration: mg/mL).

*In solvent : -80°C, 1 year; -20°C, 6 months (stored under nitrogen)

The concentration of the stock solution you require exceeds the measured solubility. The following solution is for reference only. If necessary, please contact MedChemExpress (MCE).
Method for preparing in vivo working solution for animal experiments: Take μL DMSO stock solution, add μL . μL , mix evenly, next add μL Tween 80, mix evenly, then add μL Saline.
 If the continuous dosing period exceeds half a month, please choose this protocol carefully.
Please ensure that the stock solution in the first step is dissolved to a clear state, and add co-solvents in sequence. You can use ultrasonic heating (ultrasonic cleaner, recommended frequency 20-40 kHz), vortexing, etc. to assist dissolution.
Purity & Documentation

Purity: 99.71% ee.: 99.96%

SDS (252 KB)

COA (251 KB) HNMR (224 KB) RP-HPLC (111 KB) NP-HPLC (140 KB) LCMS (118 KB)

Handling Instructions (2659 KB)
References

Complete Stock Solution Preparation Table

* Please refer to the solubility information to select the appropriate solvent. Once prepared, please aliquot and store the solution to prevent product inactivation from repeated freeze-thaw cycles.
Storage method and period of stock solution: -80°C, 1 year; -20°C, 6 months (stored under nitrogen). When stored at -80°C, please use it within 1 year. When stored at -20°C, please use it within 6 months.

Optional Solvent Concentration Solvent Mass 1 mg 5 mg 10 mg 25 mg
H2O / DMSO 1 mM 1.7217 mL 8.6085 mL 17.2170 mL 43.0426 mL
5 mM 0.3443 mL 1.7217 mL 3.4434 mL 8.6085 mL
DMSO 10 mM 0.1722 mL 0.8609 mL 1.7217 mL 4.3043 mL
15 mM 0.1148 mL 0.5739 mL 1.1478 mL 2.8695 mL
20 mM 0.0861 mL 0.4304 mL 0.8609 mL 2.1521 mL
25 mM 0.0689 mL 0.3443 mL 0.6887 mL 1.7217 mL
30 mM 0.0574 mL 0.2870 mL 0.5739 mL 1.4348 mL
40 mM 0.0430 mL 0.2152 mL 0.4304 mL 1.0761 mL
50 mM 0.0344 mL 0.1722 mL 0.3443 mL 0.8609 mL
60 mM 0.0287 mL 0.1435 mL 0.2870 mL 0.7174 mL
80 mM 0.0215 mL 0.1076 mL 0.2152 mL 0.5380 mL
100 mM 0.0172 mL 0.0861 mL 0.1722 mL 0.4304 mL

* Note: If you choose water as the stock solution, please dilute it to the working solution, then filter and sterilize it with a 0.22 μm filter before use.
