Mitapivat
Based on 3 publication(s) in Google Scholar
Mitapivat (AG-348) is an orally active pyruvate kinase allosteric activator. Mitapivat increases enzymatic activity, protein stability, and ATP levels over a broad range of PKLR genotypes, shows the potential to restore the activity of PK (pyruvate kinase)-deficient glycolytic pathways. Mitapivat can be used in study of PK deficiency.
For research use only. We do not sell to patients.
- Purity: 99.84%
- CAS No.: 1260075-17-9
- Formula: C24H26N4O3S
- Molecular Weight:450.55
-
Storage:Powder -20°C, 3 years , 4°C, 2 years ; In solvent -80°C, 2 years , -20°C, 1 year
-
Biological Activity
-
Chemical Information
-
Solvent & Solubility
- Purity & Documentation
- References
-
Help & FAQs
-
Metabolism/Protease Compound Library
HY-L012
-
FDA-Approved Drug Library
HY-L022
-
Drug Repurposing Compound Library
HY-L035
-
Anti-Cardiovascular Disease Compound Library
HY-L046
-
Glycolysis Compound Library
HY-L058
-
Orally Active Compound Library
HY-L061
-
FDA Approved & Pharmacopeial Drug Library
HY-L066
-
Anti-Cancer Metabolism Compound Library
HY-L083
-
Glucose Metabolism Compound Library
HY-L092
-
Targeted Diversity Library
HY-L099
-
Rare Diseases Drug Library
HY-L102
-
EMA-Approved Drug Library
HY-L116
-
Heterocyclic Compound Library
HY-L138
-
Metabolic Enzyme Compound Library
HY-L146
-
Bioactive Compound Library Max
HY-L181
-
MCE Bioactive Compound Library
HY-L001V
-
Drug Repurposing Compound Library Plus
HY-L035P
-
FDA-Approved Drug Library Plus
HY-L022P
-
FDA-Approved Drug Library Mini
HY-L022M
-
Bioactive Compound Library
HY-L001
-
Lactic Acid Metabolic Compound Library
HY-L204
-
High-Throughput Bioactive Compound Library
HY-L205
-
Lactylation Compound Library
HY-L249
Publications Citing Use of MedChemExpress (MCE) Mitapivat
More
Customer Validation & Images
-
PK/PD Analysis
Biological Activity
Mitapivat (0.1 nM-100 μM; 16 h) activates WT PK-R in RBCs from healthy donors[1].
Mitapivat (0.01 nM-10 μM; 16 h) promotes production of ATP in RBC cells in a dose-dependent manner[1].
MedChemExpress (MCE) has not independently confirmed the accuracy of these methods. They are for reference only.
-
Cell Line:RBC cells
-
Concentration:0.1 nM-100 µM
-
Incubation Time:16 h (incubate overnight)
-
Result:Increased PK-R activity in a dose-dependent manner to ~2.5-fold of DMSO control with an AC50 of 62 nM.
-
Cell Line:RBC cells
-
Concentration:0.01 nM-10 µM
-
Incubation Time:16 h (incubate overnight)
-
Result:Consistently increased ATP levels in a dose-dependent manner by an average of 60% over DMSO control with an AC50 of 10.9 nM.
MedChemExpress (MCE) has not independently confirmed the accuracy of these methods. They are for reference only.
-
Animal Model:WT C57B6 and Hbbth3/+ mice (both are 2-month-old female mice; β-thalassemia model)[2].
-
Dosage:50 mg/kg
-
Administration:In animal feedings; single daily for 3 weeks.
-
Result:Increased the expression of pyruvate kinase isoforms in both red cells and erythroid precursors from Hbbth3/+ mice.
Elevated pyruvate kinase activity in cells from Hbbth3/+ mice, and markedly increased ROS level in erythrocytes.
Increased the expression of PKM2 in polychromatic and orthochromatic erythroblasts of Hbbth3/+ mice.
-
Animal Model:WT C57B6 and Hbbth3/+ mice (both are 2-month-old female mice; β-thalassemia model)[2].
-
Dosage:50 mg/kg
-
Administration:Oral gavage, twice daily for 21 days.
-
Result:Ameliorated ineffective erythropoiesis and anemia in Hbbth3/+ mice and increased ATP, reduced ROS production, as well as reduced markers of mitochondrial dysfunction associated with improved mitochondrial clearance.
| NCT Number | Sponsor | Condition | Start Date |
Phase
|
|---|---|---|---|---|
| NCT01329991 | Plexxikon| | 2011-05 | PHASE1 |
Chemical Information
-
CAS No. 1260075-17-9
-
Appearance Solid
-
Molecular Weight 450.55
-
Formula C24H26N4O3S
-
Color White to off-white
-
SMILES
O=S(C1=C2N=CC=CC2=CC=C1)(NC3=CC=C(C(N4CCN(CC5CC5)CC4)=O)C=C3)=O
-
Synonyms
AG-348
-
Shipping
Room temperature in continental US; may vary elsewhere.
-
Storage
Powder -20°C 3 years 4°C 2 years In solvent -80°C 2 years -20°C 1 year
Publications (3)
-
Journal Impact Factor
-
Most Recent
-
J Sep Sci
Development and validation of stability indicating assay method for mitapivat: Identification of novel hydrolytic, photolytic, and oxidative forced degradation products employing quadrupole-time of flight mass spectrometry. [Abstract]2024 Jul;47(14):e2400173. PMID: 39054589 -
J Mass Spectrom
Identification of Mitapivat's In Vivo Metabolites in the Rat Model by Quadrupole-Time-of-Flight (Q-TOF) Mass Spectrometry. [Abstract]2025 May;60(5):e5126. PMID: 40195624 -
Mitapivat purchased from MedChemExpress. Usage Cited in: Sep Sci Plus. 2025 Jan 07.

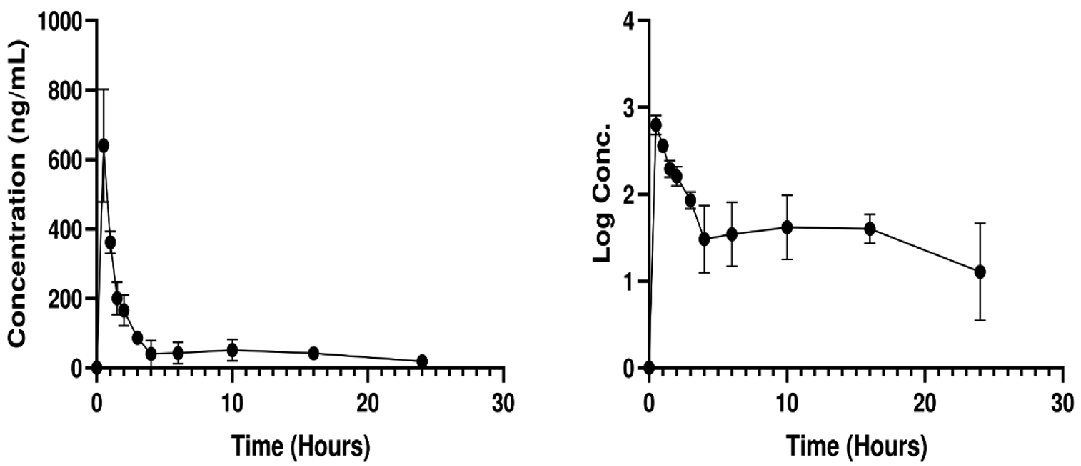

Mean plasma concentration–time profile and log-plasma concentration–time profile of Mitapivat after a single oral dose of 5 mg/kg to SD rats (each data point corresponds to mean ± S.D., n = 4).
Solvent & Solubility
DMSO : 20.83 mg/mL (46.23 mM; ultrasonic and warming and heat to 60°C; Hygroscopic DMSO has a significant impact on the solubility of product, please use newly opened DMSO)
Please refer to the solubility information to select the appropriate solvent. Once prepared, please aliquot and store the solution to prevent product inactivation from repeated freeze-thaw cycles.
Storage method and period of stock solution: -80°C, 2 years; -20°C, 1 year. When stored at -80°C, please use it within 2 years. When stored at -20°C, please use it within 1 year.
Please refer to the solubility information to select the appropriate solvent. Once prepared, please aliquot and store the solution to prevent product inactivation from repeated freeze-thaw cycles.
Storage method and period of stock solution: -80°C, 2 years; -20°C, 1 year. When stored at -80°C, please use it within 2 years. When stored at -20°C, please use it within 1 year.
Concentration (start) × Volume (start) = Concentration (final) × Volume (final)
Select the appropriate dissolution method based on your experimental animal and administration route.
- For the following dissolution methods, please ensure to first prepare a clear stock solution using an In Vitro approach and then sequentially add co-solvents:
- To ensure reliable experimental results, the clarified stock solution can be appropriately stored based on storage conditions. As for the working solution for In Vivo experiments, it is recommended to prepare freshly and use it on the same day.
- The percentages shown for the solvents indicate their volumetric ratio in the final prepared solution. If precipitation or phase separation occurs during preparation, heat and/or sonication can be used to aid dissolution.
Add each solvent one by one: 10% DMSO 40% PEG300 5% Tween-80 45% Saline
Solubility: 2.5 mg/mL (5.55 mM); Suspended solution; Need ultrasonic
This protocol yields a suspended solution of 2.5 mg/mL. Suspended solution can be used for oral and intraperitoneal injection.
Taking 1 mL working solution as an example, add 100 μL DMSO stock solution (25.0 mg/mL) to 400 μL PEG300, and mix evenly; then add 50 μL Tween-80 and mix evenly; then add 450 μL Saline to adjust the volume to 1 mL.
Preparation of Saline: Dissolve 0.9 g sodium chloride in ddH₂O and dilute to 100 mL to obtain a clear Saline solution.
Add each solvent one by one: 10% DMSO 90% (20% SBE-β-CD in Saline)
Solubility: ≥ 2.5 mg/mL (5.55 mM); Clear solution
This protocol yields a clear solution of ≥ 2.5 mg/mL (saturation unknown).
Taking 1 mL working solution as an example, add 100 μL DMSO stock solution (25.0 mg/mL) to 900 μL 20% SBE-β-CD in Saline, and mix evenly.
Preparation of 20% SBE-β-CD in Saline (4°C, storage for one week): 2 g SBE-β-CD powder is dissolved in 10 mL Saline, completely dissolve until clear.
Please enter the basic information of animal experiments:
-
-
-
-
Recommended: Prepare an additional quantity of animals to account for potential losses during experiments.
Please enter your animal formula composition:
-
%DMSO +
Recommended: Keep the proportion of DMSO in working solution below 2% if your animal is weak.
-
%+
-
+%Tween-80 + +
-
%Saline +
The co-solvents required include: DMSO, . All of co-solvents are available by MedChemExpress (MCE). , Tween 80. All of co-solvents are available by MedChemExpress (MCE).
Working solution concentration: 0.22 mg/mL
Method for preparing stock solution: mg drug dissolved in μL DMSO. Stock solution concentration: mg/mL.
1. Take μL DMSO stock solution;
2. Add μL .
μL , mix evenly;
3. Then add μL Tween 80, mix evenly;
4. Then add μL
Please ensure that the stock solution in the first step is dissolved to a clear state, and add co-solvents in sequence. You can use ultrasonic heating (ultrasonic cleaner, recommended frequency 20-40 kHz), vortexing, etc. to assist dissolution.
Purity & Documentation
-
Data Sheet (279 KB)
-
SDS (393 KB)
- English - EN (393 KB)
- Français - FR (393 KB)
- Deutsch - DE (393 KB)
- Norwegian - NO (393 KB)
- Español - ES (393 KB)
- Swedish - SV (393 KB)
- Italian - IT (393 KB)
- Korean - KR (393 KB)
- Portuguese - PT (393 KB)
-
Handling Instructions (2659 KB)
References
[1]. Kung C, et al. AG-348 enhances pyruvate kinase activity in red blood cells from patients with pyruvate kinase deficiency. Blood. 2017 Sep 14;130(11):1347-1356. [Content Brief]
[2]. Matte A, et al. The pyruvate kinase activator mitapivat reduces hemolysis and improves anemia in a β-thalassemia mouse model. J Clin Invest. 2021 May 17;131(10):e144206. [Content Brief]
[3]. Rab MAE, et al. AG-348 (Mitapivat), an allosteric activator of red blood cell pyruvate kinase, increases enzymatic activity, protein stability, and ATP levels over a broad range of PKLR genotypes. Haematologica. 2021 Jan 1;106(1):238-249. [Content Brief]
Complete Stock Solution Preparation Table
Please refer to the solubility information to select the appropriate solvent. Once prepared, please aliquot and store the solution to prevent product inactivation from repeated freeze-thaw cycles.
Storage method and period of stock solution: -80°C, 2 years; -20°C, 1 year. When stored at -80°C, please use it within 2 years. When stored at -20°C, please use it within 1 year.
| Optional Solvent | Concentration Solvent Mass | 1 mg | 5 mg | 10 mg | 25 mg |
|---|---|---|---|---|---|
| DMSO | 1 mM | 2.2195 mL | 11.0975 mL | 22.1951 mL | 55.4877 mL |
| 5 mM | 0.4439 mL | 2.2195 mL | 4.4390 mL | 11.0975 mL | |
| 10 mM | 0.2220 mL | 1.1098 mL | 2.2195 mL | 5.5488 mL | |
| 15 mM | 0.1480 mL | 0.7398 mL | 1.4797 mL | 3.6992 mL | |
| 20 mM | 0.1110 mL | 0.5549 mL | 1.1098 mL | 2.7744 mL | |
| 25 mM | 0.0888 mL | 0.4439 mL | 0.8878 mL | 2.2195 mL | |
| 30 mM | 0.0740 mL | 0.3699 mL | 0.7398 mL | 1.8496 mL | |
| 40 mM | 0.0555 mL | 0.2774 mL | 0.5549 mL | 1.3872 mL |
