1. MAPK/ERK Pathway Autophagy
  2. Raf Autophagy
  3. LY3009120

LY3009120 (DP-4978) is a pan RAF inhibitor which inhibits BRAFV600E, BRAFWT and CRAFWT with IC50s of 5.8, 9.1 and 15 nM, respectively.

For research use only. We do not sell to patients.

LY3009120 Chemical Structure

LY3009120 Chemical Structure

CAS No. : 1454682-72-4

Size Price Stock Quantity
Free Sample (0.1 - 0.5 mg)   Apply Now
Solid + Solvent
10 mM * 1 mL in DMSO
ready for reconstitution
USD 61 In-stock
Solution
10 mM * 1 mL in DMSO USD 61 In-stock
Solid
5 mg USD 55 In-stock
10 mg USD 99 In-stock
25 mg USD 231 In-stock
50 mg USD 440 In-stock
100 mg USD 748 In-stock
200 mg   Get quote
500 mg   Get quote

* Please select Quantity before adding items.

This product is a controlled substance and not for sale in your territory.

Customer Review

Based on 15 publication(s) in Google Scholar

Top Publications Citing Use of Products

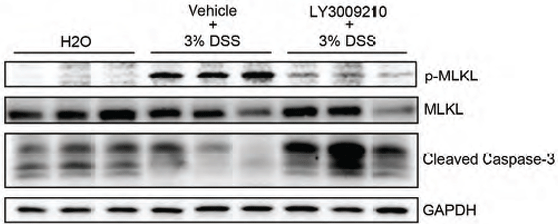

    LY3009120 purchased from MedChemExpress. Usage Cited in: Clin Sci (Lond). 2019 Apr 16;133(8):919-932.  [Abstract]

    Colonic proteins on day 7 are tested by immunoblotting to detect p-MLKL, MLKL and cleaved caspase-3 with corresponding antibodies. GAPDH is used as an internal control. Three individual mice from each group are shown.

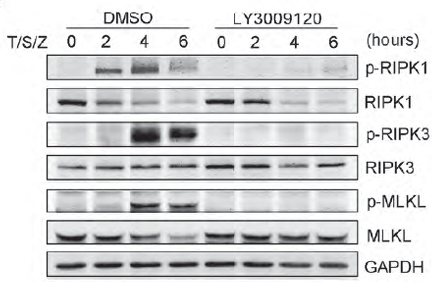

    LY3009120 purchased from MedChemExpress. Usage Cited in: Clin Sci (Lond). 2019 Apr 16;133(8):919-932.  [Abstract]

    LY3009120 decreases phosphorylation of RIPK1, RIPK3 and MLKL in T/S/Z treated HT-29 cells. HT-29 cells are pretreated with DMSO or LY3009120 for 1 hour, then treated with T/S/Z for 0, 2, 4 and 6 hours, respectively.

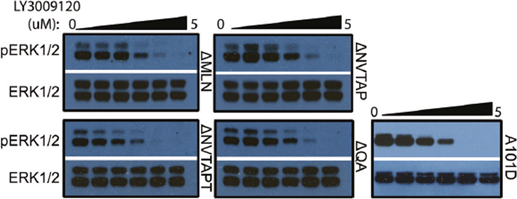

    LY3009120 purchased from MedChemExpress. Usage Cited in: Oncogene. 2018 Oct;37(43):5719-5734.  [Abstract]

    BRAF mutants with in-frame β3-αC loop deletions have approximate sensitivities to RAF dimer inhibitor, LY3009120.

    View All Raf Isoform Specific Products:

    • Biological Activity

    • Protocol

    • Purity & Documentation

    • References

    • Customer Review

    Description

    LY3009120 (DP-4978) is a pan RAF inhibitor which inhibits BRAFV600E, BRAFWT and CRAFWT with IC50s of 5.8, 9.1 and 15 nM, respectively.

    IC50 & Target[1]

    BRafV600E

    5.8 nM (IC50)

    Braf

    9.1 nM (IC50)

    CRAF

    15 nM (IC50)

    In Vitro

    In the whole-cell based KiNativ assay, LY3009120 shows affinity to each RAF isoform with the IC50 of 44, 31-47 and 42 nM for ARAF, BRAF and CRAF respectively. LY3009120 exhibits anti-proliferative effects on cell lines harboring BRAFV600E, KRASG13 and KRASG12 mutations. LY3009120 (1 μM) inhibits the phosphorylation of both MEK1/2 and ERK1/2 in cell lines with high basal levels of pMEK1/2 and pERK1/2 (RKO and HCT 116)[1]. LY3009120 shows inhibitory effect on tumor cells such as BxPC-3, NCI-H2405 and OV-90 cell lines. LY3009120 (0.01 μM) demonstrates potent and dose-dependent inhibition of phospho-MEK and ERK in all three cell lines. LY3009120 demonstrates a concentration-dependent cell growth inhibition with IC50 values of 0.04, 0.087, and 0.007 μM against H2405, BxPC-3, and OV-90 cells, respectively[2]. LY3009120 inhibits BRAFWT, CRAFWT, BRAFV600E, and BRAFV600E+G468A with the IC50 values of 9.1, 15, 5.8, and 17 nM, respectively. LY3009120 induces BRAF-CRAF dimerization but inhibits the phosphorylation of downstream MEK and ERK. LY3009120 also inhibits various forms of RAF dimers including BRAF or CRAF homodimers[3]. LY3009120 gives only very minor activation at very low doses, with near complete inhibition of phospho-ERK at concentrations above 100 nM[4].

    MedChemExpress (MCE) has not independently confirmed the accuracy of these methods. They are for reference only.

    In Vivo

    LY3009120 (20 mg/kg bid) displays significant activity in in vivo BRAFmut and KRASmut CRC xenograft models. In Colo 205 xenografts (BRAFmut), LY3009120 results in statistically significant tumor regression, while treatment of HCT 116 xenografts (KRASmut) results in statistically significant inhibition of tumor growth. LY3009120 treatment reduces pMEK1/2 in all HT-29 xenografts and reduces pERK1/2 in the majority of HT-29 xenografts[1]. LY3009120 (15 or 30 mg/kg) achieves almost complete tumor growth regression, and inhibits downstream phospho-MEK and ERK by approximately 70% and 60%, respectively, in the H2405 model[2].

    MedChemExpress (MCE) has not independently confirmed the accuracy of these methods. They are for reference only.

    Clinical Trial
    Molecular Weight

    424.51

    Formula

    C23H29FN6O

    CAS No.
    Appearance

    Solid

    Color

    Light yellow to khaki

    SMILES

    O=C(NC1=CC(C2=CC3=CN=C(NC)N=C3N=C2C)=C(C)C=C1F)NCCC(C)(C)C

    Shipping

    Room temperature in continental US; may vary elsewhere.

    Storage
    Powder -20°C 3 years
    4°C 2 years
    In solvent -80°C 2 years
    -20°C 1 year
    Solvent & Solubility
    In Vitro:

    DMSO : ≥ 38 mg/mL (89.51 mM; Hygroscopic DMSO has a significant impact on the solubility of product, please use newly opened DMSO)

    *"≥" means soluble, but saturation unknown.

    Preparing
    Stock Solutions
    Concentration Solvent Mass 1 mg 5 mg 10 mg
    1 mM 2.3557 mL 11.7783 mL 23.5566 mL
    5 mM 0.4711 mL 2.3557 mL 4.7113 mL
    View the Complete Stock Solution Preparation Table

    * Please refer to the solubility information to select the appropriate solvent. Once prepared, please aliquot and store the solution to prevent product inactivation from repeated freeze-thaw cycles.
    Storage method and period of stock solution: -80°C, 2 years; -20°C, 1 year. When stored at -80°C, please use it within 2 years. When stored at -20°C, please use it within 1 year.

    • Molarity Calculator

    • Dilution Calculator

    Mass (g) = Concentration (mol/L) × Volume (L) × Molecular Weight (g/mol)

    Mass
    =
    Concentration
    ×
    Volume
    ×
    Molecular Weight *

    Concentration (start) × Volume (start) = Concentration (final) × Volume (final)

    This equation is commonly abbreviated as: C1V1 = C2V2

    Concentration (start)

    C1

    ×
    Volume (start)

    V1

    =
    Concentration (final)

    C2

    ×
    Volume (final)

    V2

    In Vivo:

    Select the appropriate dissolution method based on your experimental animal and administration route.

    For the following dissolution methods, please ensure to first prepare a clear stock solution using an In Vitro approach and then sequentially add co-solvents:
    To ensure reliable experimental results, the clarified stock solution can be appropriately stored based on storage conditions. As for the working solution for in vivo experiments, it is recommended to prepare freshly and use it on the same day.
    The percentages shown for the solvents indicate their volumetric ratio in the final prepared solution. If precipitation or phase separation occurs during preparation, heat and/or sonication can be used to aid dissolution.

    • Protocol 1

      Add each solvent one by one:  5% DMSO    95% (20% SBE-β-CD in Saline)

      Solubility: 2.5 mg/mL (5.89 mM); Suspended solution; Need ultrasonic

    In Vivo Dissolution Calculator
    Please enter the basic information of animal experiments:

    Dosage

    mg/kg

    Animal weight
    (per animal)

    g

    Dosing volume
    (per animal)

    μL

    Number of animals

    Recommended: Prepare an additional quantity of animals to account for potential losses during experiments.
    Please enter your animal formula composition:
    %
    DMSO +
    +
    %
    Tween-80 +
    %
    Saline
    Recommended: Keep the proportion of DMSO in working solution below 2% if your animal is weak.
    The co-solvents required include: DMSO, . All of co-solvents are available by MedChemExpress (MCE). , Tween 80. All of co-solvents are available by MedChemExpress (MCE).
    Calculation results:
    Working solution concentration: mg/mL
    Method for preparing stock solution: mg drug dissolved in μL  DMSO (Stock solution concentration: mg/mL).
    The concentration of the stock solution you require exceeds the measured solubility. The following solution is for reference only. If necessary, please contact MedChemExpress (MCE).
    Method for preparing in vivo working solution for animal experiments: Take μL DMSO stock solution, add μL . μL , mix evenly, next add μL Tween 80, mix evenly, then add μL Saline.
     If the continuous dosing period exceeds half a month, please choose this protocol carefully.
    Please ensure that the stock solution in the first step is dissolved to a clear state, and add co-solvents in sequence. You can use ultrasonic heating (ultrasonic cleaner, recommended frequency 20-40 kHz), vortexing, etc. to assist dissolution.
    Purity & Documentation
    References
    Cell Assay
    [4]

    Briefly, cells are grown in McCoy’s 5A supplemented with 10% characterized fetal bovine serum at 37°C, 5% CO2, and 95% humidity. Cells are allowed to expand until 75-90% confluency at which point they are subcultured or harvested for assay use. A serial dilution of test compound is dispensed into a 384-well black clear bottom plate in triplicate. Six-hundred-twenty-five cells are added per well in 50 μL of complete growth medium in the 384-well plate. Plates are incubated for 67 h at 37°C, 5% CO2, and 95% humidity. At the end of the incubation period, 10 μL of a 440 μM solution of resazurin in PBS is added to each well of the plate and plates are incubated for an additional 5 h at 37°C, 5% CO2, and 95% humidity. Plates are read on a Synergy2 reader using an excitation of 540 nm and an emission of 600 nm. Data are analyzed using Prism softwareto calculate IC50 values.

    MCE has not independently confirmed the accuracy of these methods. They are for reference only.

    Animal Administration
    [2]

    Briefly, 5×106 to 10×106 tumor cells in a 1:1 Matrigel mix (0.2 mL total volume) are injected subcutaneously into the right hind flank of female NIH nude rats. After tumors reach a desired size of approximately 300 mm3, animals are randomized into groups of 8 for efficacy studies. Drugs (LY3009120 or PLX4032) are administered orally (gavage) in 0.6-mL volume of vehicle with the dose schedules. Tumor growth and body weight are monitored over time to evaluate efficacy and signs of toxicity.

    MCE has not independently confirmed the accuracy of these methods. They are for reference only.

    References

    Complete Stock Solution Preparation Table

    * Please refer to the solubility information to select the appropriate solvent. Once prepared, please aliquot and store the solution to prevent product inactivation from repeated freeze-thaw cycles.
    Storage method and period of stock solution: -80°C, 2 years; -20°C, 1 year. When stored at -80°C, please use it within 2 years. When stored at -20°C, please use it within 1 year.

    Optional Solvent Concentration Solvent Mass 1 mg 5 mg 10 mg 25 mg
    DMSO 1 mM 2.3557 mL 11.7783 mL 23.5566 mL 58.8914 mL
    5 mM 0.4711 mL 2.3557 mL 4.7113 mL 11.7783 mL
    10 mM 0.2356 mL 1.1778 mL 2.3557 mL 5.8891 mL
    15 mM 0.1570 mL 0.7852 mL 1.5704 mL 3.9261 mL
    20 mM 0.1178 mL 0.5889 mL 1.1778 mL 2.9446 mL
    25 mM 0.0942 mL 0.4711 mL 0.9423 mL 2.3557 mL
    30 mM 0.0785 mL 0.3926 mL 0.7852 mL 1.9630 mL
    40 mM 0.0589 mL 0.2945 mL 0.5889 mL 1.4723 mL
    50 mM 0.0471 mL 0.2356 mL 0.4711 mL 1.1778 mL
    60 mM 0.0393 mL 0.1963 mL 0.3926 mL 0.9815 mL
    80 mM 0.0294 mL 0.1472 mL 0.2945 mL 0.7361 mL
