1. Cell Cycle/DNA Damage
  2. Deubiquitinase
  3. ML-323

ML-323 is a reversible, potent USP1-UAF1 inhibitor with IC50 of 76 nM in a Ub-Rho assay. The measured inhibition constants of ML-323 for the free enzyme (Ki) is 68 nM.

For research use only. We do not sell to patients.

ML-323 Chemical Structure

ML-323 Chemical Structure

CAS No. : 1572414-83-5

Size Price Stock Quantity
Free Sample (0.1 - 0.5 mg)   Apply Now
Solid + Solvent
10 mM * 1 mL in DMSO
ready for reconstitution
USD 73 In-stock
Solution
10 mM * 1 mL in DMSO USD 73 In-stock
Solid
5 mg USD 66 In-stock
10 mg USD 99 In-stock
50 mg USD 209 In-stock
100 mg USD 319 In-stock
200 mg   Get quote
500 mg   Get quote

* Please select Quantity before adding items.

This product is a controlled substance and not for sale in your territory.

Customer Review

Based on 12 publication(s) in Google Scholar

Top Publications Citing Use of Products

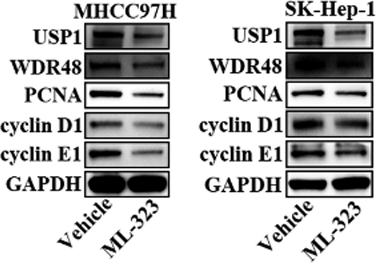

    ML-323 purchased from MedChemExpress. Usage Cited in: Cell Prolif. 2020 Oct;53(10):e12908.  [Abstract]

    ML-323 (50 μM; 24 hours) treatment down-regulates USP1 and WDR48 in MHCC97H and SK-Hep-1 cells. And also decreases the protein expression of PCNA, cyclin D1 and cyclin E1.
    • Biological Activity

    • Protocol

    • Purity & Documentation

    • References

    • Customer Review

    Description

    ML-323 is a reversible, potent USP1-UAF1 inhibitor with IC50 of 76 nM in a Ub-Rho assay. The measured inhibition constants of ML-323 for the free enzyme (Ki) is 68 nM.

    IC50 & Target

    IC50: 76 nM (USP1-UAF1, in Ub-Rho assay)[1]
    Ki: 68 nM (USP1-UAF1)[1]

    In Vitro

    ML-323 (ML323) is a highly potent inhibitor of the USP1-UAF1 deubiquitinase complex with excellent selectivity against human DUBs, deSUMOylase, deneddylase and unrelated proteases. ML-323 is a potent USP1-UAF1 inhibitor with IC50 values of 76 nM in a ubiquitin-rhodamine (Ub-Rho) assay and 174 nM and 820 nM in orthogonal gel-based assays using K63-linked diubiquitin (di-Ub) and monoubiquitinated PCNA (Ub-PCNA) as substrates, respectively. ML-323 probably exerts its inhibitory effect through an allosteric mechanism. The measured inhibition constants of ML-323 for the free enzyme (Ki) and the enzyme-substrate complex (K’i) are 68 nM and 183 nM. Besides, ML-323 potentiates Cisplatin cytotoxicity in non-small cell lung cancer and osteosarcoma cells[1]. ML-323 (ML323), a probe molecule that displays reversible, nanomolar inhibitory activity and excellent selectivity toward USP1/UAF1. In addition, ML-323 potentiates the cytotoxicity of Cisplatin and increases endogenous monoubiquitination levels of both PCNA and FANCD2, two known cellular targets of USP1/UAF1[2].

    MedChemExpress (MCE) has not independently confirmed the accuracy of these methods. They are for reference only.

    Molecular Weight

    384.48

    Formula

    C23H24N6

    CAS No.
    Appearance

    Solid

    Color

    White to off-white

    SMILES

    CC1=CN=C(C2=C(C(C)C)C=CC=C2)N=C1NCC3=CC=C(N4N=NC=C4)C=C3

    Shipping

    Room temperature in continental US; may vary elsewhere.

    Storage
    Powder -20°C 3 years
    4°C 2 years
    In solvent -80°C 1 year
    -20°C 6 months
    Solvent & Solubility
    In Vitro:

    DMSO : ≥ 49 mg/mL (127.44 mM; Hygroscopic DMSO has a significant impact on the solubility of product, please use newly opened DMSO)

    *"≥" means soluble, but saturation unknown.

    Preparing
    Stock Solutions
    Concentration Solvent Mass 1 mg 5 mg 10 mg
    1 mM 2.6009 mL 13.0046 mL 26.0092 mL
    5 mM 0.5202 mL 2.6009 mL 5.2018 mL
    View the Complete Stock Solution Preparation Table

    * Please refer to the solubility information to select the appropriate solvent. Once prepared, please aliquot and store the solution to prevent product inactivation from repeated freeze-thaw cycles.
    Storage method and period of stock solution: -80°C, 1 years; -20°C, 6 months. When stored at -80°C, please use it within 1 years. When stored at -20°C, please use it within 6 months.

    • Molarity Calculator

    • Dilution Calculator

    Mass (g) = Concentration (mol/L) × Volume (L) × Molecular Weight (g/mol)

    Mass
    =
    Concentration
    ×
    Volume
    ×
    Molecular Weight *

    Concentration (start) × Volume (start) = Concentration (final) × Volume (final)

    This equation is commonly abbreviated as: C1V1 = C2V2

    Concentration (start)

    C1

    ×
    Volume (start)

    V1

    =
    Concentration (final)

    C2

    ×
    Volume (final)

    V2

    In Vivo:

    Select the appropriate dissolution method based on your experimental animal and administration route.

    For the following dissolution methods, please ensure to first prepare a clear stock solution using an In Vitro approach and then sequentially add co-solvents:
    To ensure reliable experimental results, the clarified stock solution can be appropriately stored based on storage conditions. As for the working solution for in vivo experiments, it is recommended to prepare freshly and use it on the same day.
    The percentages shown for the solvents indicate their volumetric ratio in the final prepared solution. If precipitation or phase separation occurs during preparation, heat and/or sonication can be used to aid dissolution.

    • Protocol 1

      Add each solvent one by one:  10% DMSO    40% PEG300    5% Tween-80    45% Saline

      Solubility: ≥ 2.5 mg/mL (6.50 mM); Clear solution

      This protocol yields a clear solution of ≥ 2.5 mg/mL (saturation unknown).

      Taking 1 mL working solution as an example, add 100 μL DMSO stock solution (25.0 mg/mL) to 400 μL PEG300, and mix evenly; then add 50 μL Tween-80 and mix evenly; then add 450 μL Saline to adjust the volume to 1 mL.

      Preparation of Saline: Dissolve 0.9 g sodium chloride in ddH₂O and dilute to 100 mL to obtain a clear Saline solution.
    • Protocol 2

      Add each solvent one by one:  10% DMSO    90% (20% SBE-β-CD in Saline)

      Solubility: ≥ 2.5 mg/mL (6.50 mM); Clear solution

      This protocol yields a clear solution of ≥ 2.5 mg/mL (saturation unknown).

      Taking 1 mL working solution as an example, add 100 μL DMSO stock solution (25.0 mg/mL) to 900 μL 20% SBE-β-CD in Saline, and mix evenly.

      Preparation of 20% SBE-β-CD in Saline (4°C, storage for one week): 2 g SBE-β-CD powder is dissolved in 10 mL Saline, completely dissolve until clear.
    In Vivo Dissolution Calculator
    Please enter the basic information of animal experiments:

    Dosage

    mg/kg

    Animal weight
    (per animal)

    g

    Dosing volume
    (per animal)

    μL

    Number of animals

    Recommended: Prepare an additional quantity of animals to account for potential losses during experiments.
    Please enter your animal formula composition:
    %
    DMSO +
    +
    %
    Tween-80 +
    %
    Saline
    Recommended: Keep the proportion of DMSO in working solution below 2% if your animal is weak.
    The co-solvents required include: DMSO, . All of co-solvents are available by MedChemExpress (MCE). , Tween 80. All of co-solvents are available by MedChemExpress (MCE).
    Calculation results:
    Working solution concentration: mg/mL
    Method for preparing stock solution: mg drug dissolved in μL  DMSO (Stock solution concentration: mg/mL).
    The concentration of the stock solution you require exceeds the measured solubility. The following solution is for reference only. If necessary, please contact MedChemExpress (MCE).
    Method for preparing in vivo working solution for animal experiments: Take μL DMSO stock solution, add μL . μL , mix evenly, next add μL Tween 80, mix evenly, then add μL Saline.
     If the continuous dosing period exceeds half a month, please choose this protocol carefully.
    Please ensure that the stock solution in the first step is dissolved to a clear state, and add co-solvents in sequence. You can use ultrasonic heating (ultrasonic cleaner, recommended frequency 20-40 kHz), vortexing, etc. to assist dissolution.
    Purity & Documentation

    Purity: 99.95%

    References
    Kinase Assay
    [1]

    For DUB profiling, ML-323 is tested at a single-dose of 10 μM in duplicate. The DUB activities are monitored using Ub-7-amido-4-methylcoumarin (AMC) as a substrate. The increase in fluorescent signal from free AMC is monitored over time, although only the initial linear portion of slope (signal/min) is used for analysis. The activity of enzyme with no compound is treated as 100%. For protease profiling, ML-323 is tested using threefold serial dilutions starting at 20 μM against 70 proteases. Proteases are pre-incubated with the compound for 5-15 min before the addition of the appropriate enzyme substrates. The enzyme activities are measured by reading the fluorescent signal from fluorescently labeled peptides[1].

    MCE has not independently confirmed the accuracy of these methods. They are for reference only.

    Cell Assay
    [1]

    Cell viability is measured by a cell counting kit (CCK) assay using CCK-8 solution. For the colony-forming assay, cells are seeded at a density of 300-500 cells per well in six-well plates and grown overnight. Cells are then treated with ML-323 alone, Cisplatin alone or a combination of Cisplatin and ML-323 (1:1 or 1:4) at the indicated concentrations. Cells treated with an equal volume of DMSO and saline are used as a control. After 48 h of treatment, fresh growth medium is added, and cells are incubated for an additional 5-10 d to allow for colony formation. For UV combination treatment, the cells are treated with ML-323 at the indicated concentrations or an equal volume of DMSO. After 48 h, the medium is removed, and cells are irradiated at 254 nm at the indicated dosage. Fresh growth medium is added, and the cells are incubated for an additional 5-10 d to allow for colony formation. The cells without UV irradiation but treated with ML-323 or an equal volume of DMSO are used as controls and designated as 100%. After the formation of the colonies, cells are fixed with methanol and stained with 0.5% crystal violet. Colonies consisting of >50 cells are scored. The number of colonies is determined from triplicate plates. The dose-response curves are generated using GraphPad Prism and analyzed by using CalcuSyn to calculate the combination index, which is determined for the fraction of cells affected after the addition of fixed ratios of cisplatin and the USP1-UAF1 inhibitor[1].

    MCE has not independently confirmed the accuracy of these methods. They are for reference only.

    References

    Complete Stock Solution Preparation Table

    * Please refer to the solubility information to select the appropriate solvent. Once prepared, please aliquot and store the solution to prevent product inactivation from repeated freeze-thaw cycles.
    Storage method and period of stock solution: -80°C, 1 years; -20°C, 6 months. When stored at -80°C, please use it within 1 years. When stored at -20°C, please use it within 6 months.

    Optional Solvent Concentration Solvent Mass 1 mg 5 mg 10 mg 25 mg
    DMSO 1 mM 2.6009 mL 13.0046 mL 26.0092 mL 65.0229 mL
    5 mM 0.5202 mL 2.6009 mL 5.2018 mL 13.0046 mL
    10 mM 0.2601 mL 1.3005 mL 2.6009 mL 6.5023 mL
    15 mM 0.1734 mL 0.8670 mL 1.7339 mL 4.3349 mL
    20 mM 0.1300 mL 0.6502 mL 1.3005 mL 3.2511 mL
    25 mM 0.1040 mL 0.5202 mL 1.0404 mL 2.6009 mL
    30 mM 0.0867 mL 0.4335 mL 0.8670 mL 2.1674 mL
    40 mM 0.0650 mL 0.3251 mL 0.6502 mL 1.6256 mL
    50 mM 0.0520 mL 0.2601 mL 0.5202 mL 1.3005 mL
    60 mM 0.0433 mL 0.2167 mL 0.4335 mL 1.0837 mL
    80 mM 0.0325 mL 0.1626 mL 0.3251 mL 0.8128 mL
    100 mM 0.0260 mL 0.1300 mL 0.2601 mL 0.6502 mL
