Surovatamig
Based on 1 Customer Validation
Surovatamig (AZD0486; TNB-486) is a fully human anti-CD19/CD3 IgG4 bispecific antibody. Surovatamig triggers T cell activation, releases cytotoxic granules, and induces T cell-dependent cellular cytotoxicity and tumor cell lysis. Surovatamig can reduces release of pro-inflammatory cytokines including IL-2, IFNγ, TNF. Surovatamig can be used for the research of cancer, such as B cell non-Hodgkin lymphoma.
For research use only. We do not sell to patients.
- Purity : 99.89%
- CAS No.: 2892667-02-4
- Molecular Weight:110.46 kDa
-
Storage:
Please store the product under the recommended conditions in the Certificate of Analysis.
Biological Activity
Description
Isotype
half-G4-kappa_VH-h-CH2-CH3
Recommend Isotype Controls
Species Reactivity
Human
IC50 & Target
CD3D & CD3E & CD19
In Vitro
Surovatamig specifically binds to CD19+ human B cell lines with an EC50 range of 1.2-5.2 nM and a cell surface Kd of 1.8 nM on Nalm6 cells[1].
Surovatamig (24 h) activates human CD4+ and CD8+ T cells in the presence of CD19+ RI-1 tumor cells, with EC50 values of 103.6 pM and 121.8 pM, respectively[1].
Surovatamig (5 day) induces proliferation of human CD4+ and CD8+ T cells in the presence of CD19+ RI-1 tumor cells, with EC50 values of 62.9 pM and 46.9 pM, respectively[1].
Surovatamig (0.0001-100 nM;48 h) triggers the release of cytotoxic granules (perforin and granzyme B) from human T cells in the presence of CD19+ RI-1 tumor cells[1].
Surovatamig (24-96 h) induces time-dependent lysis of primary human B cells via T cell redirection, with >90% lysis by 96 h and an EC50 range of 0.93-1.35 nM[1].
Surovatamig (48 h) induces concentration-dependent, CD19-specific lysis of multiple human B-NHL/ALL cell lines via both CD4+ and CD8+ T cell redirection, with EC50 values of 23.5 ± 11.5 pM (Raji) and 0.9 ± 0.2 nM (RI-1)[1].
Surovatamig (48 h) induces potent CD19-specific tumor cell lysis with significantly lower levels of proinflammatory cytokines (IL-2, IFNγ, TNF) and higher cytokine release EC50 values[1].
MedChemExpress (MCE) has not independently confirmed the accuracy of these methods. They are for reference only. Further protocols information, click here.
In Vivo
Surovatamig (1-100 μg/mouse; i.v.; every 4 days; 6 doses) induces dose-dependent tumor growth inhibition in a subcutaneous diffuse large B-cell lymphoma xenograft model, with the 100 μg/mouse dose achieving 88.52% tumor growth inhibition by day 40 post-implantation[1].
Surovatamig (0.4 mg/kg) delivers potent anti-tumor activity while inducing significantly reduced CRS-associated systemic cytokine release in a humanized disseminated DLBCL xenograft model[2].
MedChemExpress (MCE) has not independently confirmed the accuracy of these methods. They are for reference only.
-
Animal Model:CIEA-NOG (NOD.Cg-Prkdcscid IL2rgtm1Sug/JicTac) (female, 4-5 weeks old, disseminated Burkitt lymphoma xenograft via intravenous injection of 1×106 luciferase-expressing Raji cells)[1]
-
Dosage:10 ng/mouse; 100 ng/mouse; 1 μg/mouse; 10 μg/mouse
-
Administration:I.v.; every 5 days; 3 doses
-
Result:Showed dose-dependent tumor reduction relative to negative control after two treatments.
Cleared tumors to a similar extent as positive control at 100 ng, 1 μg, and 10 μg/mouse doses.
Showed tumor growth inhibition at 8 days post-implantation, but inhibition was not sustained by 14 days post-implantation at 10 ng/mouse dose.
Clinical Trial
| NCT Number | Sponsor | Condition | Start Date |
Phase
|
|---|---|---|---|---|
| NCT01329991 | Plexxikon| | 2011-05 | PHASE1 |
Gene ID
Accession
Conjugated
Unconjugated
Reconsititution
The product can be reconstituted/diluted with sterile PBS or saline.
Format
-
half-G4-kappa_VH-h-CH2-CH3
Application
ELISA, FACS, Functional assay
Verified Bioactivity
-

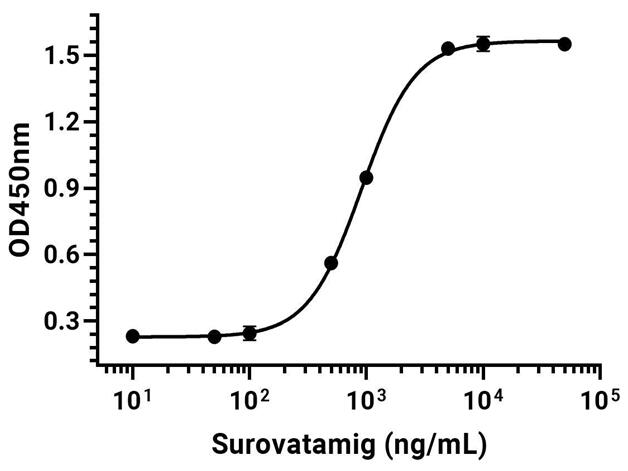

Immobilized CD19 Protein, Human (HEK293, His, HY-P74330) can bind Surovatamig. The EC50 for this effect is 893.5 ng/mL. -

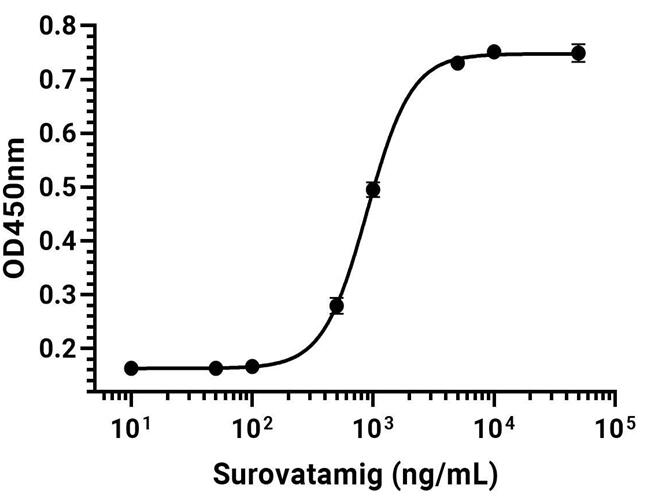

Immobilized CD3D-CD3E Heterodimer Protein, Human (Biotinylated, HEK293, His, HY-P700677) can bind Surovatamig. The EC50 for this effect is 909.9 ng/mL. -

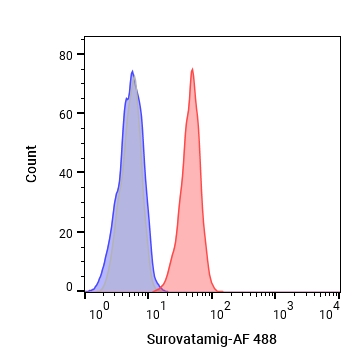

Flow cytometric analysis of 1X106 Juakat cells with Surovatamig (HY-P991028, red). Cells were fixed with 4% paraformaldehyde. Then stained with the primary antibody at 1/200 dilution for an hour at 4℃. AF 488-conjugated AffiniPure Goat Anti-Human IgG H&L (HY-P83776) was used as the secondary antibody at 1/1,000 dilution for 30 minutes at 4℃. Human IgG4 (S228P) kappa (HY-P99003, blue) was used as the isotype control, cells without incubation with primary antibody were used as the unlabeled control (black).
Chemical Information
-
CAS No. 2892667-02-4
-
Appearance Liquid
-
Molecular Weight 110.46 kDa
-
Color Colorless to light yellow
-
SMILES
[Surovatamig]
-
Synonyms
AZD0486; TNB-486
-
Shipping
Shipping with dry ice.
-
Formulation
Please refer to the lot-specific COA for specific buffer information.
-
Storage
Please store the product under the recommended conditions in the Certificate of Analysis.
Protocols
-
Cell Cytotoxicity Assay
Cytotoxicity assays are usually based on the assessment of cell membrane damage, which can also be indirectly detected by measuring cell viability. Detection methods include MTT assay, CKK-8 assay, LDH assay and ATP assay, etc.
-
Mammalian live/dead viability and cytotoxicity staining
Live/dead viability and cytotoxicity staining assays are based on the simultaneous detection of intracellular esterase activity in metabolically active (viable) cells and membrane integrity loss in non-viable cells. In commonly used dual-staining approaches, membrane-permeant fluorogenic substrates are converted by intracellular esterases into fluorescent products in live cells, while impermeant DNA-binding dyes selectively enter cells with compromised plasma membranes and label nucleic acids in dead or dying cells, enabling discrimination between viable and non-viable populations by fluorescence microscopy or flow cytometry.
-
LPS-Induced Endotoxemia/Systemic Inflammation
Lipopolysaccharide (LPS)-induced endotoxemia is a widely used in vivo model of acute systemic inflammation in which LPS, a Gram-negative bacterial endotoxin, activates innate immune signaling primarily through TLR4, leading to rapid and transient induction of pro-inflammatory cytokines such as TNF-α, IL-6, and IL-1β in circulation and tissues. This cytokine surge is commonly used as a measurable readout of systemic inflammatory activation and immune dysregulation, and is typically assessed within hours after intraperitoneal LPS administration in mouse models of endotoxemia. The model captures key features of systemic inflammatory response syndrome, including cytokine release, immune cell activation, and downstream tissue responses, and has been used to evaluate anti-inflammatory interventions such as cytokine modulation, lipid mediators, and immune cell-targeting therapies.
-
Protein Extraction
Protein extraction uses physical, chemical or biological methods, such as ultrasonic disruption, salting out, cell lysis, electrophoresis, etc., to destroy the cell membrane structure and to separate the proteins from different components according to their characteristics.
-
Research Protocol for Inflammation-related Diseases
The NLRP3 inflammasome is a cytosolic innate immune signaling platform that integrates priming signals and danger-signal activation to promote caspase-1 activation, maturation of IL-1β and IL-18, and gasdermin D-mediated pyroptotic cell death. The core experimental logic is to determine whether inflammatory disease phenotypes are driven by increased NLRP3 expression, ASC-containing inflammasome assembly, caspase-1 cleavage, GSDMD cleavage, and extracellular release of IL-1β/IL-18 rather than by nonspecific cell injury alone. The pathway is strongly linked to inflammation-related disease phenotypes because monosodium urate crystals activate NALP3/NLRP3 inflammasome signaling in gout-like crystal inflammation, cholesterol crystals activate NLRP3 inflammasomes in atherogenesis models, and DSS-induced intestinal inflammation has been reported to involve NLRP3 inflammasome activity. However, experimental colitis studies also show context-dependent protective effects of NLRP3 inflammasome co
-
Research Protocol for Cancer Immunology
Cancer immunology studies how the immune system recognizes, suppresses, edits, or fails to eliminate malignant cells through tumor antigen release, antigen presentation, T-cell priming, immune trafficking, tumor-cell killing, and feedback inhibition in the tumor microenvironment. The cancer-immunity cycle links tumor antigenicity, dendritic-cell priming, CD8+ T-cell infiltration, cytotoxic function, and immune-checkpoint regulation to tumor rejection or immune escape. Immune-checkpoint pathways such as PD-1/PD-L1 and CTLA-4 suppress antitumor T-cell activity and can be therapeutically blocked, but many tumors remain resistant because of poor antigen presentation, weak T-cell infiltration, suppressive myeloid cells, regulatory T cells, and tumor-intrinsic immune-exclusion programs. Unresolved questions include which immune-cell states predict response, how tumor-intrinsic pathways exclude immune cells, how myeloid suppression limits checkpoint blockade, and which combination strategies
-
Cell Viability Determination by MTT Colorimetric Assay
The following protocol uses the MTT colorimetric assay as a classic literature-established method for assessing cell viability/metabolic activity in cultured mammalian cells. MTT[3-(4,5-dimethylthiazol-2-yl)-2,5-diphenyltetrazolium bromide] is reduced by metabolically active cells to a colored formazan product; the amount of formazan is quantified spectrophotometrically and provides an indirect measure of metabolically active viable cells. Importantly, MTT reduction reflects cellular oxidoreductase/metabolic activity rather than an absolute direct count of living cells, so changes in cellular metabolism can alter the signal independently of cell number.
Purity & Documentation
-
Data Sheet (262 KB)
-
SDS (251 KB)
- English - EN (251 KB)
- Français - FR (251 KB)
- Deutsch - DE (251 KB)
- Norwegian - NO (251 KB)
- Español - ES (251 KB)
- Swedish - SV (251 KB)
- Italian - IT (251 KB)
- Korean - KR (251 KB)
- Portuguese - PT (251 KB)
-
Inhibitory Antibodies User Guide (603 KB)
References
Calculators
Concentration (start) × Volume (start) = Concentration (final) × Volume (final)
