Nintedanib esylate  (Synonyms: BIBF 1120 esylate)

Cat. No.: HY-11106 Purity: 99.95%
COA Handling Instructions

Nintedanib esylate (BIBF 1120 esylate) is a potent triple angiokinase inhibitor for VEGFR1/2/3, FGFR1/2/3 and PDGFRα/β with IC50s of 34 nM/13 nM/13 nM, 69 nM/37 nM/108 nM and 59 nM/65 nM, respectively.

For research use only. We do not sell to patients.

Nintedanib esylate Chemical Structure

Nintedanib esylate Chemical Structure

CAS No. : 656247-18-6

Size Price Stock Quantity
Free Sample (0.1 - 0.5 mg)   Apply Now
Solid + Solvent
10 mM * 1 mL in DMSO
ready for reconstitution
USD 73 In-stock
Solution
10 mM * 1 mL in DMSO USD 73 In-stock
Solid
10 mg USD 66 In-stock
50 mg USD 96 In-stock
100 mg USD 132 In-stock
200 mg USD 204 In-stock
500 mg USD 408 In-stock
1 g   Get quote
5 g   Get quote

* Please select Quantity before adding items.

This product is a controlled substance and not for sale in your territory.

Customer Review

Based on 45 publication(s) in Google Scholar

Other Forms of Nintedanib esylate:

Top Publications Citing Use of Products

43 Publications Citing Use of MCE Nintedanib esylate

WB
Proliferation Assay

    Nintedanib esylate purchased from MedChemExpress. Usage Cited in: Sci Rep. 2018 Jun 22;8(1):9540.  [Abstract]

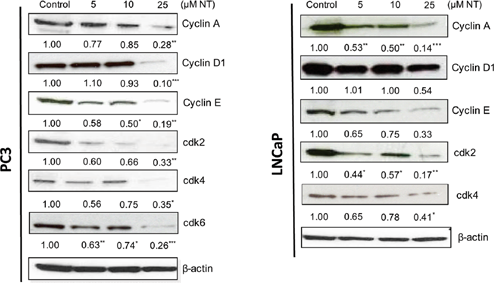

    Western blot based detection of cell cycle associated molecules viz., Cyclins A, D1 and E, and CDKs 2, 4 and 6 in PC3, and LNCaP cells after 72 hours of Nintedanib treatment.

    Nintedanib esylate purchased from MedChemExpress. Usage Cited in: Oncol Rep. 2016 Dec;36(6):3123-3130.  [Abstract]

    The mice are treated with TFTD alone (150 mg/kg, orally twice daily from days 1 to 14, open column), or a combination of TFTD and Nintedanib (closed column). The HT-29 and HCT116 tumors are collected at 24 h following the final administration of the drugs (day 15). The values indicate the mean ± SD (n=6).

    View All PDGFR Isoform Specific Products:

    View All VEGFR Isoform Specific Products:

    View All FGFR Isoform Specific Products:

    • Biological Activity

    • Protocol

    • Purity & Documentation

    • References

    • Customer Review

    Description

    Nintedanib esylate (BIBF 1120 esylate) is a potent triple angiokinase inhibitor for VEGFR1/2/3, FGFR1/2/3 and PDGFRα/β with IC50s of 34 nM/13 nM/13 nM, 69 nM/37 nM/108 nM and 59 nM/65 nM, respectively.

    IC50 & Target[1]

    VEGFR1

    34 nM (IC50)

    VEGFR2

    13 nM (IC50)

    VEGFR3

    13 nM (IC50)

    FGFR1

    69 nM (IC50)

    FGFR2

    37 nM (IC50)

    FGFR3

    108 nM (IC50)

    PDGFRα

    59 nM (IC50)

    PDGFRβ

    65 nM (IC50)

    In Vitro

    Nintedanib (BIBF 1120) binds to the ATP-binding site in the cleft between the amino and carboxy terminal lobes of the kinase domain. Nintedanib (BIBF 1120) inhibits proliferation of PDGF-BB stimulated BRPs with EC50 of 79 nM in cell assays. Nintedanib (BIBF 1120) (100 nM) blocks activation of MAPK after stimulation with 5% serum plus PDGF-BB. Nintedanib (BIBF 1120) prevents PDGF-BB stimulated proliferation with an EC50 of 69 nM in cultures of human vascular smooth muscle cells (HUASMC)[1].

    MedChemExpress (MCE) has not independently confirmed the accuracy of these methods. They are for reference only.

    In Vivo

    Nintedanib (BIBF 1120) (25-100 mg/kg daily p.o.) is highly active in all tumor models, including human tumor xenografts growing in nude mice and a syngeneic rat tumor model. This is evident in the magnetic resonance imaging of tumor perfusion after 3 days, reducing vessel density and vessel integrity after 5 days, and profound growth inhibition[1]. Nintedanib (BIBF 1120) is orally available and displays encouraging efficacy in in vivo tumor models while being well tolerated[2].

    MedChemExpress (MCE) has not independently confirmed the accuracy of these methods. They are for reference only.

    Clinical Trial
    Molecular Weight

    649.76

    Formula

    C33H39N5O7S

    CAS No.
    Appearance

    Solid

    Color

    Light yellow to green yellow

    SMILES

    O=C(C1=CC(NC/2=O)=C(C=C1)C2=C(NC3=CC=C(N(C)C(CN4CCN(C)CC4)=O)C=C3)/C5=CC=CC=C5)OC.CCS(=O)(O)=O

    Shipping

    Room temperature in continental US; may vary elsewhere.

    Storage

    4°C, sealed storage, away from moisture

    *In solvent : -80°C, 6 months; -20°C, 1 month (sealed storage, away from moisture)

    Solvent & Solubility
    In Vitro:

    DMSO : 41.67 mg/mL (64.13 mM; ultrasonic and warming and heat to 60°C; Hygroscopic DMSO has a significant impact on the solubility of product, please use newly opened DMSO)

    H2O : 16.67 mg/mL (25.66 mM; Need ultrasonic)

    Ethanol : 3.08 mg/mL (4.74 mM; Need ultrasonic)

    Preparing
    Stock Solutions
    Concentration Solvent Mass 1 mg 5 mg 10 mg
    1 mM 1.5390 mL 7.6951 mL 15.3903 mL
    5 mM 0.3078 mL 1.5390 mL 3.0781 mL
    View the Complete Stock Solution Preparation Table

    * Please refer to the solubility information to select the appropriate solvent. Once prepared, please aliquot and store the solution to prevent product inactivation from repeated freeze-thaw cycles.
    Storage method and period of stock solution: -80°C, 6 months; -20°C, 1 month (sealed storage, away from moisture). When stored at -80°C, please use it within 6 months. When stored at -20°C, please use it within 1 month.

    * Note: If you choose water as the stock solution, please dilute it to the working solution, then filter and sterilize it with a 0.22 μm filter before use.

    • Molarity Calculator

    • Dilution Calculator

    Mass (g) = Concentration (mol/L) × Volume (L) × Molecular Weight (g/mol)

    Mass
    =
    Concentration
    ×
    Volume
    ×
    Molecular Weight *

    Concentration (start) × Volume (start) = Concentration (final) × Volume (final)

    This equation is commonly abbreviated as: C1V1 = C2V2

    Concentration (start)

    C1

    ×
    Volume (start)

    V1

    =
    Concentration (final)

    C2

    ×
    Volume (final)

    V2

    In Vivo:

    Select the appropriate dissolution method based on your experimental animal and administration route.

    For the following dissolution methods, please ensure to first prepare a clear stock solution using an In Vitro approach and then sequentially add co-solvents:
    To ensure reliable experimental results, the clarified stock solution can be appropriately stored based on storage conditions. As for the working solution for in vivo experiments, it is recommended to prepare freshly and use it on the same day.
    The percentages shown for the solvents indicate their volumetric ratio in the final prepared solution. If precipitation or phase separation occurs during preparation, heat and/or sonication can be used to aid dissolution.

    • Protocol 1

      Add each solvent one by one:  10% DMSO    90% (20% SBE-β-CD in Saline)

      Solubility: ≥ 2.5 mg/mL (3.85 mM); Clear solution

      This protocol yields a clear solution of ≥ 2.5 mg/mL (saturation unknown).

      Taking 1 mL working solution as an example, add 100 μL DMSO stock solution (25.0 mg/mL) to 900 μL 20% SBE-β-CD in Saline, and mix evenly.

      Preparation of 20% SBE-β-CD in Saline (4°C, storage for one week): 2 g SBE-β-CD powder is dissolved in 10 mL Saline, completely dissolve until clear.
    • Protocol 2

      Add each solvent one by one:  10% DMSO    90% Corn Oil

      Solubility: ≥ 2.5 mg/mL (3.85 mM); Clear solution

      This protocol yields a clear solution of ≥ 2.5 mg/mL (saturation unknown). If the continuous dosing period exceeds half a month, please choose this protocol carefully.

      Taking 1 mL working solution as an example, add 100 μL DMSO stock solution (25.0 mg/mL) to 900 μL Corn oil, and mix evenly.

    For the following dissolution methods, please prepare the working solution directly. It is recommended to prepare fresh solutions and use them promptly within a short period of time.
    The percentages shown for the solvents indicate their volumetric ratio in the final prepared solution. If precipitation or phase separation occurs during preparation, heat and/or sonication can be used to aid dissolution.

    • Protocol 1

      Add each solvent one by one:  50% PEG300    50% Saline

      Solubility: 10 mg/mL (15.39 mM); Suspended solution; Need ultrasonic

    • Protocol 2

      Add each solvent one by one:  20% HP-β-CD in Saline

      Solubility: 20 mg/mL (30.78 mM); Clear solution; Need ultrasonic

    In Vivo Dissolution Calculator
    Please enter the basic information of animal experiments:

    Dosage

    mg/kg

    Animal weight
    (per animal)

    g

    Dosing volume
    (per animal)

    μL

    Number of animals

    Recommended: Prepare an additional quantity of animals to account for potential losses during experiments.
    Calculation results:
    Working solution concentration: mg/mL
    This product has good water solubility, please refer to the measured solubility data in water/PBS/Saline for details.
    The concentration of the stock solution you require exceeds the measured solubility. The following solution is for reference only.If necessary, please contact MedChemExpress (MCE).
    Purity & Documentation

    Purity: 99.95%

    References
    Animal Administration
    [1]

    Five-week-old to 6-wk-old athymic NMRI-nu/nu female mice (21-31 g) are used for the assay. After acclimatization, mice are inoculated with 1 to 5×106 (in 100 μL) FaDu, Caki-1, SKOV-3, H460, HT-29, or PAC-120 cells s.c. into the right flank of the animal. After acclimatization, F344 Fischer rats are injected with 5×106 (in 100 μL) GS-9L cells s.c. into the right flank of the animal. For pharmacokinetic analysis, blood is isolated at indicated time points from the retroorbital plexus of mice and plasma is analyzed using high performance liquid chromatography-mass spectrometry methodology[1].

    MCE has not independently confirmed the accuracy of these methods. They are for reference only.

    References

    Complete Stock Solution Preparation Table

    * Please refer to the solubility information to select the appropriate solvent. Once prepared, please aliquot and store the solution to prevent product inactivation from repeated freeze-thaw cycles.
    Storage method and period of stock solution: -80°C, 6 months; -20°C, 1 month (sealed storage, away from moisture). When stored at -80°C, please use it within 6 months. When stored at -20°C, please use it within 1 month.

    Optional Solvent Concentration Solvent Mass 1 mg 5 mg 10 mg 25 mg
    Ethanol / H2O / DMSO 1 mM 1.5390 mL 7.6951 mL 15.3903 mL 38.4757 mL
    H2O / DMSO 5 mM 0.3078 mL 1.5390 mL 3.0781 mL 7.6951 mL
    10 mM 0.1539 mL 0.7695 mL 1.5390 mL 3.8476 mL
    15 mM 0.1026 mL 0.5130 mL 1.0260 mL 2.5650 mL
    20 mM 0.0770 mL 0.3848 mL 0.7695 mL 1.9238 mL
    25 mM 0.0616 mL 0.3078 mL 0.6156 mL 1.5390 mL
    DMSO 30 mM 0.0513 mL 0.2565 mL 0.5130 mL 1.2825 mL
    40 mM 0.0385 mL 0.1924 mL 0.3848 mL 0.9619 mL
    50 mM 0.0308 mL 0.1539 mL 0.3078 mL 0.7695 mL
    60 mM 0.0257 mL 0.1283 mL 0.2565 mL 0.6413 mL

    * Note: If you choose water as the stock solution, please dilute it to the working solution, then filter and sterilize it with a 0.22 μm filter before use.
