  3. TAK-632

TAK-632 is a potent pan-RAF inhibitor with IC50 of 1.4, 2.4 and 8.3 nM for CRAF, BRAFV600E, BRAFWT, respectively.

For research use only. We do not sell to patients.

TAK-632 Chemical Structure

TAK-632 Chemical Structure

CAS No. : 1228591-30-7

Size Price Stock Quantity
Free Sample (0.1 - 0.5 mg)   Apply Now
Solid + Solvent
10 mM * 1 mL in DMSO
ready for reconstitution
USD 61 In-stock
Solution
10 mM * 1 mL in DMSO USD 61 In-stock
Solid
10 mg USD 55 In-stock
50 mg USD 165 In-stock
100 mg USD 297 In-stock
200 mg   Get quote
500 mg   Get quote

* Please select Quantity before adding items.

This product is a controlled substance and not for sale in your territory.

Customer Review

Based on 6 publication(s) in Google Scholar

Top Publications Citing Use of Products

    TAK-632 purchased from MedChemExpress. Usage Cited in: Br J Pharmacol. 2019 Jun;176(12):2095-2108.  [Abstract]

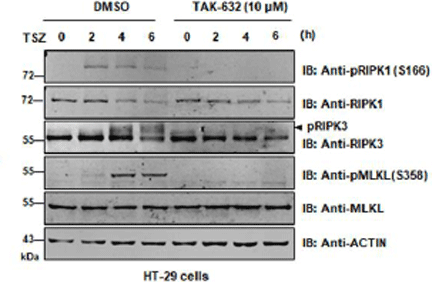

    HT-29 cells are pretreated with TAK-632 (10 μM) followed by stimulation with TSZ at the indicated time points. Cells are lysed and immunoblotted with the indicated antibodies.

    TAK-632 purchased from MedChemExpress. Usage Cited in: Br J Pharmacol. 2019 Jun;176(12):2095-2108.  [Abstract]

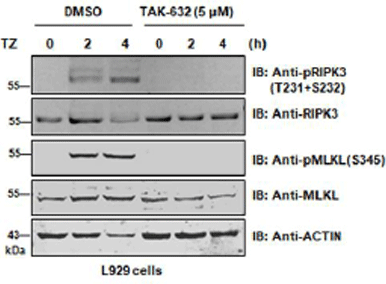

    L929 cells are pretreated with TAK-632 (5 μM) followed by stimulated with mTNF-α (20 ng) plus z-VAD-FMK (20 μM) (TZ) at the indicated time points. Cells are lysed and immunoblotted with the indicated antibodies.

    TAK-632 purchased from MedChemExpress. Usage Cited in: Br J Pharmacol. 2019 Jun;176(12):2095-2108.  [Abstract]

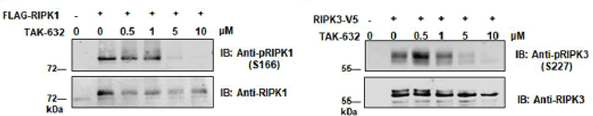

    HEK293T cells are transfected with FLAG-RIPK1 or RIPK3-V5. After 12 h, the cells are treated with TAK-632 as the indicated concentrations for 6 h. Cell lysates are then analyzed by SDS-PAGE and immunoblotted with the indicated antibodies. All western data are representative of five independent experiments.

    View All Raf Isoform Specific Products:

    View All Aurora Kinase Isoform Specific Products:

    • Biological Activity

    • Protocol

    • Purity & Documentation

    • References

    • Customer Review

    Description

    TAK-632 is a potent pan-RAF inhibitor with IC50 of 1.4, 2.4 and 8.3 nM for CRAF, BRAFV600E, BRAFWT, respectively.

    IC50 & Target

    IC50: 1.4 nM (C-RAF), 2.4 nM (BRAFV600E), 8.3 nM (BRAFWT),66 nM (Aurora B), 160 nM (VEGFR)[1]

    In Vitro

    TAK-632 inhibits PDGFRβ, FGFR3, GSK3β, CDK2, P38α, PDGFRα, TIE2, and CDK1 with a range of IC50 values from 120-790 nM. CHK1, IKKβ, and MEK1 are inhibited over an IC50 range of 1400-1700 nM. With 1 h of preincubation time, TAK-632 inhibits BRAF and CRAF in an ATP competitive manner (at low ATP concentrations BRAF IC50: 15 nM; CRAF: 8.1 nM). The respective biochemical activity of TAK-632 against BRAF and CRAF reduces to IC50 values of 58 nM and 62 nM at high ATP concentrations.TAK-632 demonstrates strong inhibition of pMEK and pERK in HMVII cells with IC50 values of 49 nM and 50 nM, respectively[1]. TAK-632 shows strong antiproliferative effects both in A375 and SK-MEL-2 cells (GI50 of 40-190 nM in A375 cells and GI50 of 190-250 nM in SK-MEL-2 cells)[2].

    MedChemExpress (MCE) has not independently confirmed the accuracy of these methods. They are for reference only.

    In Vivo

    TAK-632 demonstrates dramatically improved solubility (740 μg/mL) in pH 6.8 phosphate buffer and exhibits significant oral absorption (at a dose of 25 mg/kg, AUC, 32.47 μg h/mL; F, 51.7%) in rats. In a dog PK study, 10 mg/kg administration of TAK-632 also shows superior oral bioavailability (F: 108%).Oral single administration of TAK-632 inhibits pERK in tumors at 8 h after its administration over a dose range of 1.9-24.1 mg/kg. In particular, 9.7-24.1 mg/kg dosing with TAK-632 strongly inhibits pERK levels to 11% of the control. TAK-632 exhibits dose-dependent antitumor efficacy without severe body weight reduction over a dose range of 3.9-24.1 mg/kg. Significant tumor regression is observed at 9.7 mg/kg and 24.1 mg/kg (T/C=−2.1% and −12.1%, respectively)[1]. TAK-632 exhibits potent antitumor efficacy when orally administered at 60 mg/kg once daily (T/C=37%, P<0.001) or at 120 mg/kg once daily (T/C=29%, P<0.001) for 21 days without severe toxicity in NRAS-mutant melanoma using a SK-MEL-2 xenograft model[2].

    MedChemExpress (MCE) has not independently confirmed the accuracy of these methods. They are for reference only.

    Molecular Weight

    554.52

    Formula

    C27H18F4N4O3S

    CAS No.
    Appearance

    Solid

    Color

    White to off-white

    SMILES

    O=C(NC1=CC(OC2=CC=C3N=C(NC(C4CC4)=O)SC3=C2C#N)=CC=C1F)CC5=CC=CC(C(F)(F)F)=C5

    Shipping

    Room temperature in continental US; may vary elsewhere.

    Storage
    Powder -20°C 3 years
    4°C 2 years
    In solvent -80°C 2 years
    -20°C 1 year
    Solvent & Solubility
    In Vitro:

    DMSO : 100 mg/mL (180.34 mM; Need ultrasonic; Hygroscopic DMSO has a significant impact on the solubility of product, please use newly opened DMSO)

    Preparing
    Stock Solutions
    Concentration Solvent Mass 1 mg 5 mg 10 mg
    1 mM 1.8034 mL 9.0168 mL 18.0336 mL
    5 mM 0.3607 mL 1.8034 mL 3.6067 mL
    View the Complete Stock Solution Preparation Table

    * Please refer to the solubility information to select the appropriate solvent. Once prepared, please aliquot and store the solution to prevent product inactivation from repeated freeze-thaw cycles.
    Storage method and period of stock solution: -80°C, 2 years; -20°C, 1 year. When stored at -80°C, please use it within 2 years. When stored at -20°C, please use it within 1 year.

    • Molarity Calculator

    • Dilution Calculator

    Mass (g) = Concentration (mol/L) × Volume (L) × Molecular Weight (g/mol)

    Mass
    =
    Concentration
    ×
    Volume
    ×
    Molecular Weight *

    Concentration (start) × Volume (start) = Concentration (final) × Volume (final)

    This equation is commonly abbreviated as: C1V1 = C2V2

    Concentration (start)

    C1

    ×
    Volume (start)

    V1

    =
    Concentration (final)

    C2

    ×
    Volume (final)

    V2

    In Vivo:

    Select the appropriate dissolution method based on your experimental animal and administration route.

    For the following dissolution methods, please ensure to first prepare a clear stock solution using an In Vitro approach and then sequentially add co-solvents:
    To ensure reliable experimental results, the clarified stock solution can be appropriately stored based on storage conditions. As for the working solution for in vivo experiments, it is recommended to prepare freshly and use it on the same day.
    The percentages shown for the solvents indicate their volumetric ratio in the final prepared solution. If precipitation or phase separation occurs during preparation, heat and/or sonication can be used to aid dissolution.

    • Protocol 1

      Add each solvent one by one:  10% DMSO    40% PEG300    5% Tween-80    45% Saline

      Solubility: 2.5 mg/mL (4.51 mM); Suspended solution; Need ultrasonic

      This protocol yields a suspended solution of 2.5 mg/mL. Suspended solution can be used for oral and intraperitoneal injection.

      Taking 1 mL working solution as an example, add 100 μL DMSO stock solution (25.0 mg/mL) to 400 μL PEG300, and mix evenly; then add 50 μL Tween-80 and mix evenly; then add 450 μL Saline to adjust the volume to 1 mL.

      Preparation of Saline: Dissolve 0.9 g sodium chloride in ddH₂O and dilute to 100 mL to obtain a clear Saline solution.
    • Protocol 2

      Add each solvent one by one:  10% DMSO    90% Corn Oil

      Solubility: ≥ 2.5 mg/mL (4.51 mM); Clear solution

      This protocol yields a clear solution of ≥ 2.5 mg/mL (saturation unknown). If the continuous dosing period exceeds half a month, please choose this protocol carefully.

      Taking 1 mL working solution as an example, add 100 μL DMSO stock solution (25.0 mg/mL) to 900 μL Corn oil, and mix evenly.

    In Vivo Dissolution Calculator
    Please enter the basic information of animal experiments:

    Dosage

    mg/kg

    Animal weight
    (per animal)

    g

    Dosing volume
    (per animal)

    μL

    Number of animals

    Recommended: Prepare an additional quantity of animals to account for potential losses during experiments.
    Please enter your animal formula composition:
    %
    DMSO +
    +
    %
    Tween-80 +
    %
    Saline
    Recommended: Keep the proportion of DMSO in working solution below 2% if your animal is weak.
    The co-solvents required include: DMSO, . All of co-solvents are available by MedChemExpress (MCE). , Tween 80. All of co-solvents are available by MedChemExpress (MCE).
    Calculation results:
    Working solution concentration: mg/mL
    Method for preparing stock solution: mg drug dissolved in μL  DMSO (Stock solution concentration: mg/mL).
    The concentration of the stock solution you require exceeds the measured solubility. The following solution is for reference only. If necessary, please contact MedChemExpress (MCE).
    Method for preparing in vivo working solution for animal experiments: Take μL DMSO stock solution, add μL . μL , mix evenly, next add μL Tween 80, mix evenly, then add μL Saline.
     If the continuous dosing period exceeds half a month, please choose this protocol carefully.
    Please ensure that the stock solution in the first step is dissolved to a clear state, and add co-solvents in sequence. You can use ultrasonic heating (ultrasonic cleaner, recommended frequency 20-40 kHz), vortexing, etc. to assist dissolution.
    Purity & Documentation
    References
    Kinase Assay
    [2]

    Immunoprecipitated BRAF or CRAF is incubated with recombinant inactive MEK (K97R) at 30°C for 30 minutes in kinase reaction buffer containing ATP/Mg2+. RAS/RAF wild-type (A431, CsFb, and HeLa), KRAS-mutant (A549, HCT-116, and MIA PaCa-2), and NRAS-mutant melanoma (GAK, HMV-II, and SK-MEL-2) cells are treated with TAK-632 (0, 0.32, 1.6, 8, 40, 200, 1000 and 5000 nM) at the indicated concentrations for 2 hours. Cell lysates are analyzed by Western blot analysis[2].

    MCE has not independently confirmed the accuracy of these methods. They are for reference only.

    Cell Assay
    [2]

    Cell viability is assessed (3 replicates) using the Sulforhodamine B assay or by the CellTiter-Glo luminescent cell viability assay. The concentrations of TAK-632 that produced 50% growth inhibition (GI50) are calculated using PCP software. The combination index (CI) is calculated using CalcuSyn software. To investigate the antiproliferative activity of TAK-632, we performed proliferation assays in various cell lines harboring mutated BRAF, NRAS, or KRAS. HMV-II, SK-MEL-2, or A375 cells are cotreated with TAK-632 and TAK-733 at the indicated concentrations for 72 hours. Cell viability is measured. The CI value at EC50 is calculated. A375 cells stably expressing NRASQ61K or ΔN-BRAF are cotreated with TAK-632 and TAK-733 at the indicated concentrations for 72 hours. Cell viability is measured. The CI value at EC50 is calculated[2].

    MCE has not independently confirmed the accuracy of these methods. They are for reference only.

    Animal Administration
    [2]

    Mice[2]
    The xenograft-implanted nude mice are used. Mice bearing SK-MEL-2 xenografts are treated once daily for 21 consecutive days with vehicle or TAK-632 at the indicated concentrations (10 mice per each treatment group). Day 0 indicates the beginning of treatment. Tumors are measured twice a week. Mice bearing SK-MEL-2 xenografts are treated once daily (QD) for 3 days with vehicle, TAK-632 at 60 mg/kg (60 mpk), or TAK-632 at 120 mg/kg (120 mpk). Tumor xenografts are obtained at indicated time points after the final treatment and analyzed by Western blot analysis. Individual blots with dividing lines are combined from a single electrophoresis gel. Bars represent densitometric analysis of phospho-ERK, normalized to vehicle-treated control (mean±SD).

    MCE has not independently confirmed the accuracy of these methods. They are for reference only.

    References

    Complete Stock Solution Preparation Table

    * Please refer to the solubility information to select the appropriate solvent. Once prepared, please aliquot and store the solution to prevent product inactivation from repeated freeze-thaw cycles.
    Storage method and period of stock solution: -80°C, 2 years; -20°C, 1 year. When stored at -80°C, please use it within 2 years. When stored at -20°C, please use it within 1 year.

    Optional Solvent Concentration Solvent Mass 1 mg 5 mg 10 mg 25 mg
    DMSO 1 mM 1.8034 mL 9.0168 mL 18.0336 mL 45.0840 mL
    5 mM 0.3607 mL 1.8034 mL 3.6067 mL 9.0168 mL
    10 mM 0.1803 mL 0.9017 mL 1.8034 mL 4.5084 mL
    15 mM 0.1202 mL 0.6011 mL 1.2022 mL 3.0056 mL
    20 mM 0.0902 mL 0.4508 mL 0.9017 mL 2.2542 mL
    25 mM 0.0721 mL 0.3607 mL 0.7213 mL 1.8034 mL
    30 mM 0.0601 mL 0.3006 mL 0.6011 mL 1.5028 mL
    40 mM 0.0451 mL 0.2254 mL 0.4508 mL 1.1271 mL
    50 mM 0.0361 mL 0.1803 mL 0.3607 mL 0.9017 mL
    60 mM 0.0301 mL 0.1503 mL 0.3006 mL 0.7514 mL
    80 mM 0.0225 mL 0.1127 mL 0.2254 mL 0.5636 mL
    100 mM 0.0180 mL 0.0902 mL 0.1803 mL 0.4508 mL
