AZD-7648

Name: AZD-7648
Brand: MedChemExpress
SKU: HY-111783
Rating: 5.0 (48 reviews)

Cat. No.: HY-111783 Purity: 99.86%: Data Sheet
COA

SDS
Handling Instructions
FAQs
Technical Support

AZD-7648 is a potent, orally active, selective DNA-PK inhibitor with an IC₅₀ of 0.6 nM. AZD-7648 induces apoptosis and shows antitumor activity.

For research use only. We do not sell to patients.

CAS No. : 2230820-11-6

Size	Stock	Quantity

Free Sample (0.1 - 0.2 mg)	Apply Now
Solid + Solvent (Highly Recommended)
10 mM * 1 mL in DMSO ready for reconstitution	In-stock	Estimated Time of Arrival: December 31
Solution
10 mM * 1 mL in DMSO	In-stock	Estimated Time of Arrival: December 31
Solid
5 mg	In-stock	Estimated Time of Arrival: December 31
10 mg	In-stock	Estimated Time of Arrival: December 31
25 mg	In-stock	Estimated Time of Arrival: December 31
50 mg	In-stock	Estimated Time of Arrival: December 31
100 mg	In-stock	Estimated Time of Arrival: December 31
250 mg	In-stock	Estimated Time of Arrival: December 31
500 mg	Get quote
1 g	Get quote

or Bulk Inquiry

* Please select Quantity before adding items.

This product is a controlled substance and not for sale in your territory.

Customer Review

Based on 48 publication(s) in Google Scholar

Other Forms of AZD-7648:

AZD-7648 (GMP) Get quote

48 Publications Citing Use of MCE AZD-7648

Flow Cytometry

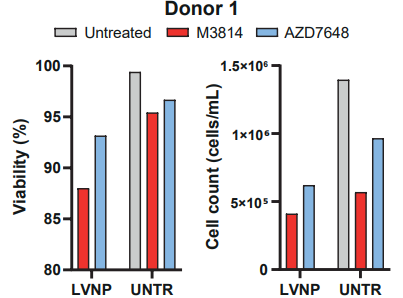

Cell Proliferation/Viability Assay

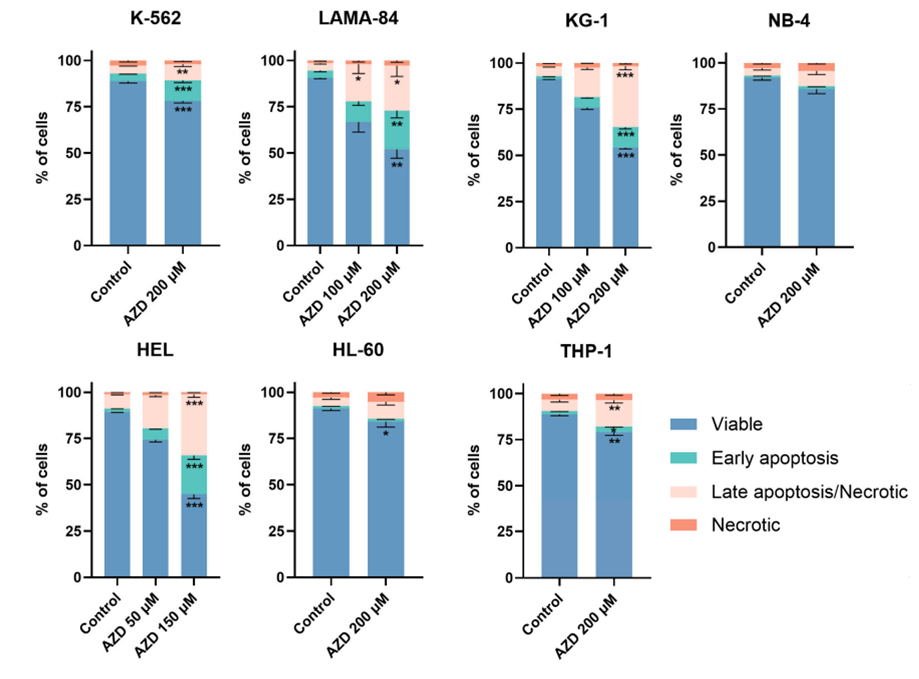

Apoptosis Analysis

Cell Imaging/Staining

: AZD-7648 purchased from MedChemExpress. Usage Cited in: Nucleic Acids Res. 2025 Aug 11;53(15):gkaf767. [Abstract]; AZD7648 (1 µM; 48 h) showed less cytotoxicity in HSPCs relative to M3814 (2 µM; 48 h).

: AZD-7648 purchased from MedChemExpress. Usage Cited in: Theranostics. 2023 Aug 28;13(14):4745-4761. [Abstract]; Cell growth response at Day 14, shown as % relative growth as compared to control of H1299-7 cells treated with 0, 5 or 10 MBq/mL LuTate alone, or in combination with 0.5 μM or 1 μM of AZD-7648.

: AZD-7648 purchased from MedChemExpress. Usage Cited in: Int J Mol Sci. 2023 Oct 18;24(20):15331.; Log dose–response viability curve of AZD-7648 after 24 or 48 (KG-1*) hours of treatment.

: AZD-7648 purchased from MedChemExpress. Usage Cited in: Int J Mol Sci. 2023 Oct 18;24(20):15331.; Analysis of cell death induced by AZD-7648 (AZD，50-200 μM) in CML and AML cell lines after 24 or 48 (KG-1) hours of treatment.The type of cell death was identified using annexin V/propidium iodide staining and analyzed using flow cytometry. Data are expressed as a percentage (%) of viable, early apoptosis, late apoptosis/necrotic, and necrotic cells and represent mean ± SEM of 5 independent experiments. Statistical analyses were performed by comparison with control, using one-way ANOVA and Dunnett’s multiple comparisons test, Kruskal–Wallis and Dunn’s multiple comparisons test, unpaired t-test, or Mann–Whitney test.

: AZD-7648 purchased from MedChemExpress. Usage Cited in: Int J Mol Sci. 2023 Oct 18;24(20):15331.; Analysis of cell death induced by AZD-7648 (AZD, 50-200 μM) in CML and AML cell lines after 24 or 48 (KG-1) hours of treatment. Cell morphology was observed by light microscopy (amplification: 1000×), and the most representative image was selected.

: AZD-7648 purchased from MedChemExpress. Usage Cited in: Nat Commun. 2022 Sep 8;13(1):5295. [Abstract]; HEK 293T DSB-Spectrum_V3 cells were transfected with Cas9 and an sgRNA targeting either AAVS1 or BFP, followed by treatment with the DNA-PKcs inhibitors M3841 (2 µM) or AZD7648 (2 µM). At 72h after Cas9 transfection cells were analyzed by flow cytometry (n=4; mean ± SEM; One-way ANOVA, post-hoc Dunnett's).

Featured Recommendations

•Related Screening Libraries:

•Related Small Molecules:

•Related Proteins:

View All ATM/ATR Isoform Specific Products:

View All Isoforms

ATM ATR TRRAP

View All PI3K Isoform Specific Products:

View All Isoforms

PI3Kα PI3Kβ PI3Kγ PI3Kδ PI3KC2α PI3KC2β PI3KC2γ Vps34 PI3K PI3KC3 p120γ

Biological Activity
Purity & Documentation
References
Customer Review

Description

AZD-7648 is a potent, orally active, selective DNA-PK inhibitor with an IC₅₀ of 0.6 nM. AZD-7648 induces apoptosis and shows antitumor activity^[1].

IC₅₀ & Target^[1]

PI3Kγ

1.37 μM (IC₅₀)

ATM

17.93 μM (IC₅₀)

DNA-PKcs

91.3 nM (IC₅₀)

Cellular Effect

Cell Line	Type	Value	Description	References
A549	IC₅₀	0.091 μM Compound: Example 16; AZD7648	Inhibition of DNA-PK in human A549 cells assessed as reduction in irradiation-induced autophosphorylation at S2056 residue preincubated for 1 hr followed by 8 Gy irradiation and measured after 1 hr by ELISA Inhibition of DNA-PK in human A549 cells assessed as reduction in irradiation-induced autophosphorylation at S2056 residue preincubated for 1 hr followed by 8 Gy irradiation and measured after 1 hr by ELISA	[PMID: 31851518]
B16-F10	IC₅₀	11.4 μM Compound: AZD-7648	Synergistic antiproliferative activity against mouse B16-F10 cells assessed as reduction in cell viability incubated for 48 hrs in presence of doxorubicin by CCK-8 assay Synergistic antiproliferative activity against mouse B16-F10 cells assessed as reduction in cell viability incubated for 48 hrs in presence of doxorubicin by CCK-8 assay	[PMID: 38587857]
B16-F10	IC₅₀	33.6 μM Compound: AZD-7648	Antiproliferative activity against mouse B16-F10 cells assessed as reduction in cell viability incubated for 48 hrs by CCK-8 assay Antiproliferative activity against mouse B16-F10 cells assessed as reduction in cell viability incubated for 48 hrs by CCK-8 assay	[PMID: 38587857]
CHO	IC₅₀	> 198 μM Compound: Example 16; AZD7648	Inhibition of human ERG stably expressed in CHO cells at -90 mV holding potential by electrophysiological assay Inhibition of human ERG stably expressed in CHO cells at -90 mV holding potential by electrophysiological assay	[PMID: 31851518]
CT26	IC₅₀	18.8 μM Compound: AZD-7648	Antiproliferative activity against mouse CT26 cells assessed as reduction in cell viability incubated for 48 hrs by CCK-8 assay Antiproliferative activity against mouse CT26 cells assessed as reduction in cell viability incubated for 48 hrs by CCK-8 assay	[PMID: 38587857]
CT26	IC₅₀	6.74 μM Compound: AZD-7648	Synergistic antiproliferative activity against mouse CT26 cells assessed as reduction in cell viability incubated for 48 hrs in presence of doxorubicin by CCK-8 assay Synergistic antiproliferative activity against mouse CT26 cells assessed as reduction in cell viability incubated for 48 hrs in presence of doxorubicin by CCK-8 assay	[PMID: 38587857]
HCT-116	IC₅₀	19.5 μM Compound: AZD-7648	Antiproliferative activity against human HCT-116 cells assessed as inhibition of cell growth incubated for 48 hrs in presence of 100 nM doxorubicin by MTT assay Antiproliferative activity against human HCT-116 cells assessed as inhibition of cell growth incubated for 48 hrs in presence of 100 nM doxorubicin by MTT assay	[PMID: 35468512]
HCT-116	IC₅₀	35.3 μM Compound: AZD-7648	Antiproliferative activity against human HCT-116 cells assessed as inhibition of cell growth incubated for 48 hrs by MTT assay Antiproliferative activity against human HCT-116 cells assessed as inhibition of cell growth incubated for 48 hrs by MTT assay	[PMID: 35468512]
HCT-116	IC₅₀	38.08 nM Compound: 4; AZD7648	Inhibition of colony formation in human HCT-116 cells preincubated with compound for 1 hr followed by exposure to 2 Gy gamma irradiation and measured after 7 days by crystal violet staining based chemiluminescence assay Inhibition of colony formation in human HCT-116 cells preincubated with compound for 1 hr followed by exposure to 2 Gy gamma irradiation and measured after 7 days by crystal violet staining based chemiluminescence assay	[PMID: 38117951]
HT-29	IC₅₀	17.9 μM Compound: Example 16; AZD7648	Inhibition of ATM in human HT-29 cells assessed as reduction in irradiation-induced autophosphorylation at Ser1981 residue preincubated for 1 hr followed by 6 Gy irradiation and measured after 1 hr by Hoechst staining-based imaging analysis Inhibition of ATM in human HT-29 cells assessed as reduction in irradiation-induced autophosphorylation at Ser1981 residue preincubated for 1 hr followed by 6 Gy irradiation and measured after 1 hr by Hoechst staining-based imaging analysis	[PMID: 31851518]
HT-29	IC₅₀	> 29 μM Compound: Example 16; AZD7648	Inhibition of ATR in human HT-29 cells assessed as reduction in 4NQO-induced CHK1 phosphorylation at S345 residue preincubated for 1 hr followed by 4NQO addition and measured after 1 hr by Hoechst staining-based imaging analysis Inhibition of ATR in human HT-29 cells assessed as reduction in 4NQO-induced CHK1 phosphorylation at S345 residue preincubated for 1 hr followed by 4NQO addition and measured after 1 hr by Hoechst staining-based imaging analysis	[PMID: 31851518]
HeLa	IC₅₀	0.6 nM Compound: Example 16; AZD7648	Inhibition of human HeLa cell-derived full length DNA-PK catalytic subunit using fluorescein-EPPLSQEAFADLWKK as substrate preincubated for 30 mins followed by substrate addition and measured after 40 mins TR-FRET assay Inhibition of human HeLa cell-derived full length DNA-PK catalytic subunit using fluorescein-EPPLSQEAFADLWKK as substrate preincubated for 30 mins followed by substrate addition and measured after 40 mins TR-FRET assay	[PMID: 31851518]
Jurkat	IC₅₀	0.09 μM Compound: AZD-7648	Synergistic antiproliferative activity against human Jurkat cells assessed as reduction in cell viability incubated for 48 hrs in presence of doxorubicin by CCK-8 assay Synergistic antiproliferative activity against human Jurkat cells assessed as reduction in cell viability incubated for 48 hrs in presence of doxorubicin by CCK-8 assay	[PMID: 38587857]
Jurkat	IC₅₀	12.3 μM Compound: AZD-7648	Antiproliferative activity against human Jurkat cells assessed as reduction in cell viability incubated for 48 hrs by CCK-8 assay Antiproliferative activity against human Jurkat cells assessed as reduction in cell viability incubated for 48 hrs by CCK-8 assay	[PMID: 38587857]
MDA-MB-231	IC₅₀	> 30 μM Compound: Example 16; AZD7648	Inhibition of mTOR/PI3Kalpha in human MDA-MB-231 cells assessed as reduction in AKT phosphorylation at S473 residue measured after 2 hrs by Hoechst staining-based imaging analysis Inhibition of mTOR/PI3Kalpha in human MDA-MB-231 cells assessed as reduction in AKT phosphorylation at S473 residue measured after 2 hrs by Hoechst staining-based imaging analysis	[PMID: 31851518]
MDA-MB-468	IC₅₀	> 30 μM Compound: Example 16; AZD7648	Inhibition of PI3Kbeta in human MDA-MB-468 cells assessed as reduction in AKT phosphorylation at T208 residue measured after 2 hrs by QuantaBlu substrate based fluorescence assay Inhibition of PI3Kbeta in human MDA-MB-468 cells assessed as reduction in AKT phosphorylation at T208 residue measured after 2 hrs by QuantaBlu substrate based fluorescence assay	[PMID: 31851518]

In Vitro

AZD7648 (0-30 μM) is a potent radiosensitizer^[1].
AZD7648 (3 μM) increases sensitivity to Doxorubicin (HY-15142A)^[1].
AZD7648 (0.6 μM) enhances the activity of PARP inhibitor Olaparib (HY-10162)^[1].

MedChemExpress (MCE) has not independently confirmed the accuracy of these methods. They are for reference only.

Cell Cycle Analysis^[1]

Cell Line:	IR (ionizing radiation)-treated A549 cells or A549 cells
Concentration:	0-30 μM
Incubation Time:	48 h
Result:	Arrested cell cycle at G2/M phase.

Western Blot Analysis^[1]

Cell Line:	IR (ionizing radiation)-treated A549 cells or OAW42 cells treated with Doxorubicin
Concentration:	0.03, 0.1, 0.3, 1, 3, 10 and 30 μM for A549; 3 μM for OAW42
Incubation Time:	1 h for A549; 0.5, 2, 4, 8 and 16 h for OAW42
Result:	Potently inhibited DNA-PKcs autophosphorylation at Ser2056. Downregulated pDNA-PKcs Ser2056, γH2AX Ser139 and pRPA32 Ser4/Ser8 phosphorylation at early time points (at 30 min, 2 h and 4 h). Resulted in increased levels of γH2AX and the apoptosis marker cleaved PARP1 compared with doxorubicin treatment alone at later time points (8 and 16 h).

In Vivo

AZD-7648 (100 mg/kg; p.o.; once daily for 5 days) induces tumour growth inhibition and tumour regression^[1].

MedChemExpress (MCE) has not independently confirmed the accuracy of these methods. They are for reference only.

Animal Model:	Nude mice, A549 xenografts and NCI-H1299 xenografts^[1]
Dosage:	100 mg/kg
Administration:	Oral administration, once daily for 5 days
Result:	Induced tumour growth inhibition in combination with IR in A549 xenografts and induced tumour regression in combination with IR in NCI-H1299 xenografts.

Molecular Weight

380.40

Formula

C₁₈H₂₀N₈O₂

CAS No.

2230820-11-6

Appearance

Solid

Color

White to yellow

SMILES

CC1=CC2=NC=NN2C=C1NC3=NC=C(N(C)C(N4C5CCOCC5)=O)C4=N3

Shipping

Room temperature in continental US; may vary elsewhere.

Storage

Powder	-20°C	3 years
	4°C	2 years
In solvent	-80°C	6 months
	-20°C	1 month

Solvent & Solubility

In Vitro:

DMSO : 5.83 mg/mL (15.33 mM; ultrasonic and warming and heat to 60°C; Hygroscopic DMSO has a significant impact on the solubility of product, please use newly opened DMSO)

Preparing
Stock Solutions

Concentration Solvent Mass	1 mg	5 mg	10 mg

1 mM	2.6288 mL	13.1441 mL	26.2881 mL
5 mM	0.5258 mL	2.6288 mL	5.2576 mL
10 mM	0.2629 mL	1.3144 mL	2.6288 mL

View the Complete Stock Solution Preparation Table

* Please refer to the solubility information to select the appropriate solvent. Once prepared, please aliquot and store the solution to prevent product inactivation from repeated freeze-thaw cycles.
Storage method and period of stock solution: -80°C, 6 months; -20°C, 1 month. When stored at -80°C, please use it within 6 months. When stored at -20°C, please use it within 1 month.

Molarity Calculator
Dilution Calculator

Mass (g) = Concentration (mol/L) × Volume (L) × Molecular Weight (g/mol)

Concentration _(start) × Volume _(start) = Concentration _(final) × Volume _(final)

This equation is commonly abbreviated as: C₁V₁ = C₂V₂

Concentration _(start)

Volume _(start)

Concentration _(final)

Volume _(final)

In Vivo:

For the following dissolution methods, please prepare the working solution directly. It is recommended to prepare fresh solutions and use them promptly within a short period of time.
The percentages shown for the solvents indicate their volumetric ratio in the final prepared solution. If precipitation or phase separation occurs during preparation, heat and/or sonication can be used to aid dissolution.

Protocol 1

Add each solvent one by one: 0.5% HPMC/0.1% Tween-80 in Saline water
Solubility: 10 mg/mL (26.29 mM); Suspended solution; Need ultrasonic

In Vivo Dissolution Calculator

Please enter the basic information of animal experiments:

Dosage

mg/kg

Animal weight
(per animal)

Dosing volume
(per animal)

μL

Number of animals

Recommended: Prepare an additional quantity of animals to account for potential losses during experiments.

Calculation results:

Working solution concentration: mg/mL

Purity & Documentation

Purity: 99.86%

Select Batch:

Data Sheet (279 KB) SDS (396 KB)

COA (252 KB) HNMR (176 KB) RP-HPLC (257 KB)

Handling Instructions (2659 KB)

References

[1]. Fok JHL, et al. AZD7648 is a potent and selective DNA-PK inhibitor that enhances radiation, chemotherapy and olaparib activity. Nat Commun. 2019 Nov 7;10(1):5065. [Content Brief]

Complete Stock Solution Preparation Table

Optional Solvent	Concentration Solvent Mass	1 mg	5 mg	10 mg	25 mg

DMSO	1 mM	2.6288 mL	13.1441 mL	26.2881 mL	65.7203 mL
	5 mM	0.5258 mL	2.6288 mL	5.2576 mL	13.1441 mL
	10 mM	0.2629 mL	1.3144 mL	2.6288 mL	6.5720 mL
	15 mM	0.1753 mL	0.8763 mL	1.7525 mL	4.3814 mL
