LAG-3 Protein, Marmoset (HEK293, His)

Cat. No.: HY-P78656
COA Handling Instructions

LAG-3 (lymphocyte activation gene 3) protein is expressed on antigen-activated T cells and transmits inhibitory signals by binding to ligands such as FGL1. FGL1 is the main ligand responsible for the suppressive function of LAG3 T cells. LAG-3 Protein, Marmoset (HEK293, His) is the recombinant Marmoset-derived LAG-3 protein, expressed by HEK293 , with C-10*His labeled tag. The total length of LAG-3 Protein, Marmoset (HEK293, His) is 432 a.a., with molecular weight of ~57 kDa.

For research use only. We do not sell to patients.

Protein Expression Service

Size Price Stock Quantity
Free Sample   Apply now
5 μg $50 In-stock
10 μg $86 In-stock
50 μg $240 In-stock
100 μg   Get quote

* Please select Quantity before adding items.

Top Publications Citing Use of Products
  • Biological Activity

  • Technical Parameters

  • Properties

  • Documentation

Description

LAG-3 (lymphocyte activation gene 3) protein is expressed on antigen-activated T cells and transmits inhibitory signals by binding to ligands such as FGL1. FGL1 is the main ligand responsible for the suppressive function of LAG3 T cells. LAG-3 Protein, Marmoset (HEK293, His) is the recombinant Marmoset-derived LAG-3 protein, expressed by HEK293 , with C-10*His labeled tag. The total length of LAG-3 Protein, Marmoset (HEK293, His) is 432 a.a., with molecular weight of ~57 kDa.

Background

LAG-3 (Lymphocyte activation gene 3) protein is an inhibitory receptor expressed on antigen-activated T-cells, delivering inhibitory signals upon binding to ligands such as FGL1. Serving as a major ligand of LAG3, FGL1 is responsible for LAG3's T-cell inhibitory function. Following T-cell receptor (TCR) engagement, LAG3 associates with CD3-TCR in the immunological synapse, directly inhibiting T-cell activation. LAG3 may synergistically inhibit antigen-specific T-cell activation with PDCD1/PD-1, possibly acting as a coreceptor for PD-1. It negatively regulates the proliferation, activation, effector function, and homeostasis of both CD8(+) and CD4(+) T-cells. Constitutively expressed on a subset of regulatory T-cells (Tregs), LAG3 contributes to their suppressive function, mediating immune tolerance. Additionally, LAG3 acts as a negative regulator of plasmacytoid dendritic cell (pDCs) activation and binds to MHC class II (MHC-II), possibly functioning as a ligand for MHC-II on antigen-presenting cells, thereby promoting APC activation/maturation and driving Th1 immune responses.

Biological Activity

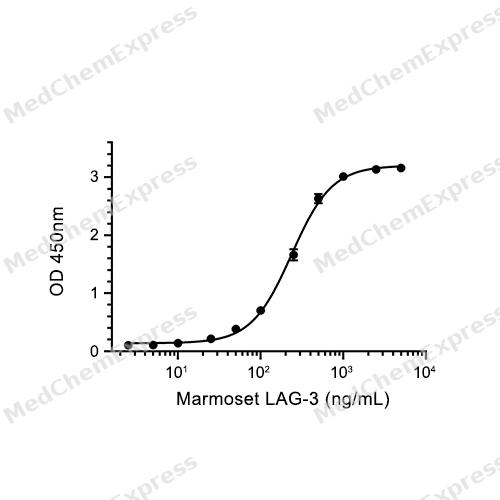

Immobilized Madarex LAG-3 MAb Human IgG1 at 2 μg/mL (100 μL/well) can bind Marmoset LAG-3 His with a linear range of 10-237 ng/mL.

  • Immobilized Madarex LAG-3 MAb, Human IgG1 at 2 μg/mL (100 μL/well) can bind Marmoset LAG-3, The ED50 for this effect is 236.8 ng/mL.
Species

Marmoset

Source

HEK293

Tag

C-10*His

Accession

XP_002752325.1 (A18-H449)

Gene ID

100415501  [NCBI]

Molecular Construction
N-term
LAG-3 (A18-H449)
Accession # XP_002752325.1
10*His
C-term
Synonyms
LAG3; CD223; FDC
AA Sequence

APVKPPQPGAEVSEVWAQEGAPAQLPCSPTIPLQDLSLLRRGGVTWQHQPDSGPPAPVPGHPPAPGPRAAAPSSSRPGPRRYTVLSVAPGGLRSGRLPLQPRVQLEERGRQRGDFSLWLRPARRADAGEYRAAVHLRDRTLSCHLRLRVGQASMTASPAGSLRTSDWVILNCSFSRPDRPASVQWFRGGGQGRVPVQESPHHHLAESFLFLPQVSLMDSGPWGCTLTYRDGFSVSIVYNLTVLGLEPPTPLTVYAGAGSRVELPCRLPPGVGTQPFLTAKWAPPGGGPDLLVPGDNGNFTLQLEDVSQAQAGTYTCHICLQGQQLSATVTLAVITVTPKSFGSPGSLGKLLCEVTPASGQERFVWSPLDAPSQRSFPGPWLEAQDAQLLSQPWQCQLYQGERLLGAAVYFTALSSPGAQRSGRAPGALHAGH

Molecular Weight

Approximately 57 kDa

Purity

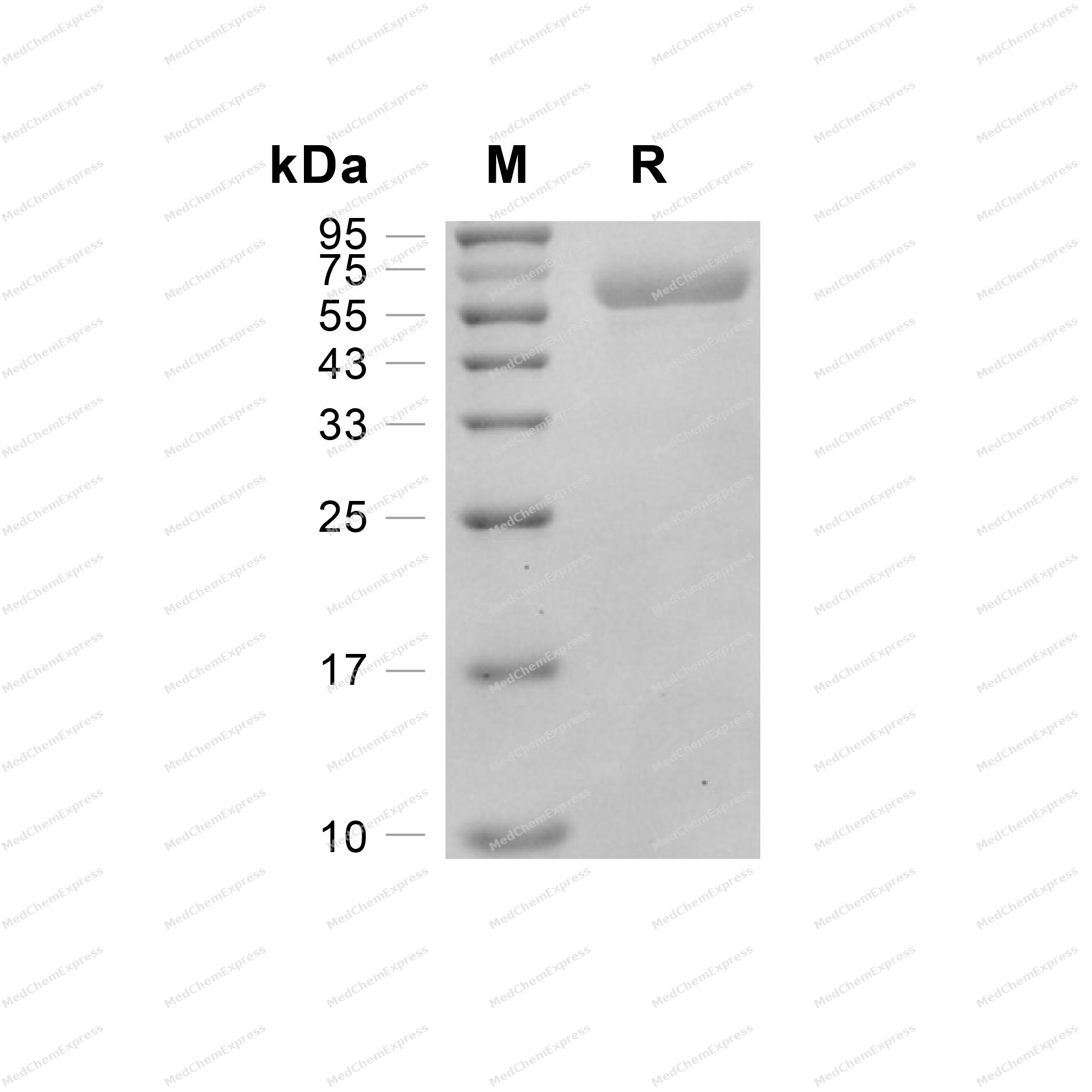

  • Greater than 95% as determined by reducing SDS-PAGE.
Appearance

Lyophilized powder

Formulation

Lyophilized a 0.22 μm filtered solution of PBS, pH 7.4.

Endotoxin Level

<1 EU/μg, determined by LAL method.

Reconstitution

It is not recommended to reconstitute to a concentration less than 100 μg/mL in ddH2O. For long term storage it is recommended to add a carrier protein (0.1% BSA, 5% HSA, 10% FBS or 5% Trehalose).

Storage & Stability

Stored at -20°C for 2 years. After reconstitution, it is stable at 4°C for 1 week or -20°C for longer (with carrier protein). It is recommended to freeze aliquots at -20°C or -80°C for extended storage.

Shipping

Room temperature in continental US; may vary elsewhere.

Documentation
Help & FAQs
  • Do most proteins show cross-species activity?

    Species cross-reactivity must be investigated individually for each product. Many human cytokines will produce a nice response in mouse cell lines, and many mouse proteins will show activity on human cells. Other proteins may have a lower specific activity when used in the opposite species.

  • Reconstitution Calculator

  • Dilution Calculator

  • Specific Activity Calculator

The reconstitution calculator equation

Volume (to add to vial) = Mass (in vial) ÷ Desired Reconstitution Concentration

Volume (to add to vial) = Mass (in vial) ÷ Desired Reconstitution Concentration
= ÷

The dilution calculator equation

Concentration (start) × Volume (start) = Concentration (final) × Volume (final)

This equation is commonly abbreviated as: C1V1 = C2V2

Concentration (start) × Volume (start) = Concentration (final) × Volume (final)
× = ×
C1   V1   C2   V2

The specific activity calculator equation

Specific Activity (Unit/mg) = 106 ÷ Biological Activity (ED50)

Specific Activity (Unit/mg) = 106 ÷ Biological Activity (ED50)
Unit/mg = 106 ÷ ng/mL
