1. Recombinant Proteins
  2. Immune Checkpoint Proteins CD Antigens
  3. Inhibitory Checkpoint Molecules T Cell CD Proteins Macrophage CD Proteins
  4. PD-1
  5. PD-1 Protein, Rat (HEK293, His)

Programmed cell death protein 1 (Pdcd1) is an immune-inhibitory receptor which delivers inhibitory signals upon binding to ligands CD274/PDCD1L1 and CD273/PDCD1LG2, playing a critical role in induction and maintenance of immune tolerance to self. Pdcd1plays a role in anti-tumor immunity and is involved in safeguarding against autoimmunity, but Pdcd1-mediated inhibitory pathway is also exploited by tumors to attenuate anti-tumor immunity. PD-1 Protein, Rat (HEK293, His) is the recombinant rat-derived PD-1 protein, expressed by HEK293 , with C-His labeled tag.

For research use only. We do not sell to patients.

Surface Plasmon Resonance (SPR) Assay Service   Protein Expression Service

Size Price Stock Quantity
Free Sample   Apply now
Free Sample   Apply now
5 μg In-stock
10 μg In-stock
50 μg In-stock
100 μg In-stock
> 100 μg   Get quote

* Please select Quantity before adding items.

Top Publications Citing Use of Products
  • Biological Activity

  • Technical Parameters

  • Properties

  • Documentation

Description

Programmed cell death protein 1 (Pdcd1) is an immune-inhibitory receptor which delivers inhibitory signals upon binding to ligands CD274/PDCD1L1 and CD273/PDCD1LG2, playing a critical role in induction and maintenance of immune tolerance to self. Pdcd1plays a role in anti-tumor immunity and is involved in safeguarding against autoimmunity, but Pdcd1-mediated inhibitory pathway is also exploited by tumors to attenuate anti-tumor immunity. PD-1 Protein, Rat (HEK293, His) is the recombinant rat-derived PD-1 protein, expressed by HEK293 , with C-His labeled tag.

Background

Programmed cell death 1 (Pdcd1) is an immune-inhibitory receptor expressed in activated T cells which delivers inhibitory signals upon binding to ligands CD274/PDCD1L1 and CD273/PDCD1LG2. Pdcd1is involved in the regulation of T-cell functions, including those of effector CD8+ T cells, PDCD1 protein can also promote the differentiation of CD4+ T cells into T regulatory cells, playing a critical role in induction and maintenance of immune tolerance to self. Pdcd1is expressed in many types of tumors including melanomas, and has demonstrated to play a role in anti-tumor immunity. Moreover, Pdcd1is involved in safeguarding against autoimmunity, however, it can also contribute to the inhibition of effective anti-tumor and anti-microbial immunity as the Pdcd1-mediated inhibitory pathway is exploited by tumors to attenuate anti-tumor immunity and escape destruction by the immune system, thereby facilitating tumor survival[1][2].

Biological Activity

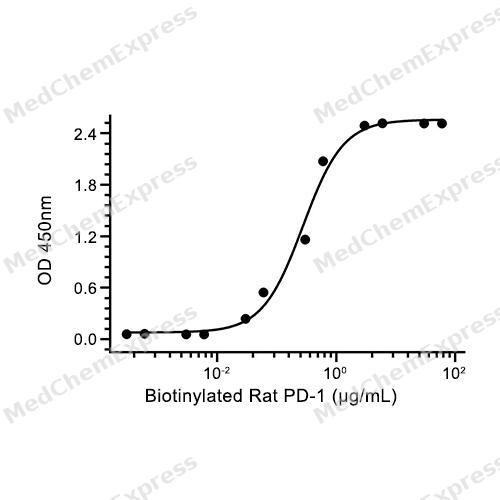

Immobilized Recombinant Rat PD-L1 at 1 μg/mL (100 μL/well) can bind Recombinant Rat PD-1. The ED50 for this effect is 0.2756 μg/mL.

  • Immobilized Recombinant Rat PD-L1 at 1 μg/mL (100 μL/well) can bind Recombinant Rat PD-1. The ED50 for this effect is 0.2756 μg/mL.
Species

Rat

Source

HEK293

Tag

C-6*His

Accession

D3ZIN8/NP_001100397.1 (L25-Q167)

Gene ID
Molecular Construction
N-term
PD-1 (L25-Q167)
Accession # D3ZIN8/NP_001100397.1
His
C-term
Protein Length

Partial

Synonyms
CD279; hPD-1; PDCD1; Programmed cell death 1; SLEB2
AA Sequence

LEVLNKPWRPLTFSPTWLTVSEGANATFTCSFSNWSEDLKLNWYRLSPSNQTEKQAAFCNGYSQPVRDARFQIVQLPNGHDFHMNILDARRNDSGIYLCGAISLPPKAQIKESPGAELVVTERILETPTRYPRPSPKPEGQFQ

Molecular Weight

Approximately 30-40 kDa due to the glycosylation

Purity
  • ≥ 95%, as determined by reducing SDS-PAGE.
Appearance

Lyophilized powder.

Formulation

Lyophilized from a 0.2 μm filtered solution of PBS, pH 7.4. Normally 5 % - 8 % trehalose, mannitol and 0.01% Tween 80 are added as protectants before lyophilization.

Endotoxin Level

<1 EU/μg, determined by LAL method.

Reconstitution

It is not recommended to reconstitute to a concentration less than 100 μg/mL in ddH2O. For long term storage it is recommended to add a carrier protein (0.1% BSA, 5% HSA, 10% FBS or 5% Trehalose).

Storage & Stability

Stored at -20°C for 2 years from date of receipt. After reconstitution, it is stable at 4°C for 1 week or -20°C for longer (with carrier protein). It is recommended to freeze aliquots at -20°C or -80°C for extended storage.

Shipping

Room temperature in continental US; may vary elsewhere.

Documentation
Help & FAQs
  • Do most proteins show cross-species activity?

    Species cross-reactivity must be investigated individually for each product. Many human cytokines will produce a nice response in mouse cell lines, and many mouse proteins will show activity on human cells. Other proteins may have a lower specific activity when used in the opposite species.

  • Reconstitution Calculator

  • Dilution Calculator

  • Specific Activity Calculator

The reconstitution calculator equation

Volume (to add to vial) = Mass (in vial) ÷ Desired Reconstitution Concentration

Volume (to add to vial) = Mass (in vial) ÷ Desired Reconstitution Concentration
= ÷

The dilution calculator equation

Concentration (start) × Volume (start) = Concentration (final) × Volume (final)

This equation is commonly abbreviated as: C1V1 = C2V2

Concentration (start) × Volume (start) = Concentration (final) × Volume (final)
× = ×
C1   V1   C2   V2

The specific activity calculator equation

Specific Activity (Unit/mg) = 106 ÷ Biological Activity (ED50)

Specific Activity (Unit/mg) = 106 ÷ Biological Activity (ED50)
Unit/mg = 106 ÷ ng/mL
