PD-L1 Protein, Mouse (HEK293, Fc)

Customer Review

Based on 1 Customer Validation

PD-L1 protein serves as a ligand for the inhibitory receptor PDCD1/PD-1 and is critical for maintaining immune tolerance. This interaction modulates T cell activation, limits effector responses and may stimulate IL10-producing T cell subsets. PD-L1 Protein, Mouse (HEK293, Fc) is the recombinant mouse-derived PD-L1 protein, expressed by HEK293 , with C-hFc labeled tag.

For research use only. We do not sell to patients.
  • Species: Mouse
  • Source: HEK293
  • Storage:
    Stored at -20°C for 2 years from date of receipt. After reconstitution, it is stable at 4°C for 1 week or -20°C for longer (with carrier protein). It is recommended to freeze aliquots at -20°C or -80°C for extended storage.
  • Experimental Validation Results for PD-L1 Protein, Mouse (HEK293, Fc)
  • Experimental Validation Results for PD-L1 Protein, Mouse (HEK293, Fc)
  • PD-L1 Protein, Mouse (HEK293, Fc) Product Image
Size
Price
Stock
Quantity
Amount: USD 0.00
Please select quantity
or
or

* Please select Quantity before adding items.

To place orders, for customer services and technical support, please contact: MedChemExpress USA

Tel: 609-228-6898 E-mail: [email protected] [email protected]

Service
Data Download

To place orders, for customer services and technical support, please contact:

609-228-6898
[email protected] [email protected]
Find Your Local Distributor Your local distributor: Hycultec GmbHHycultec
  • Biological Activity
  • Technical Parameters
  • Product Properties
  • Documentation
  • Help & FAQs
Top Publications Citing

Use of MCE Products

Biological Activity

Description

PD-L1 protein serves as a ligand for the inhibitory receptor PDCD1/PD-1 and is critical for maintaining immune tolerance. This interaction modulates T cell activation, limits effector responses and may stimulate IL10-producing T cell subsets. PD-L1 Protein, Mouse (HEK293, Fc) is the recombinant mouse-derived PD-L1 protein, expressed by HEK293 , with C-hFc labeled tag.

Background

PD-L1 protein plays a crucial role in maintaining immune tolerance to self by acting as a ligand for the inhibitory receptor PDCD1/PD-1. This interaction modulates the activation threshold of T-cells, limiting their effector response and potentially stimulating T-cell subsets that produce interleukin-10 (IL10). However, tumors exploit the PDCD1-mediated inhibitory pathway to attenuate anti-tumor immunity and evade destruction by the immune system, thereby promoting tumor survival. The interaction between PD-L1 and PDCD1/PD-1 inhibits the function of cytotoxic T lymphocytes (CTLs), but blocking this pathway can reverse the exhausted T-cell phenotype and normalize the anti-tumor response, offering a promising strategy for cancer immunotherapy.

Verified Bioactivity

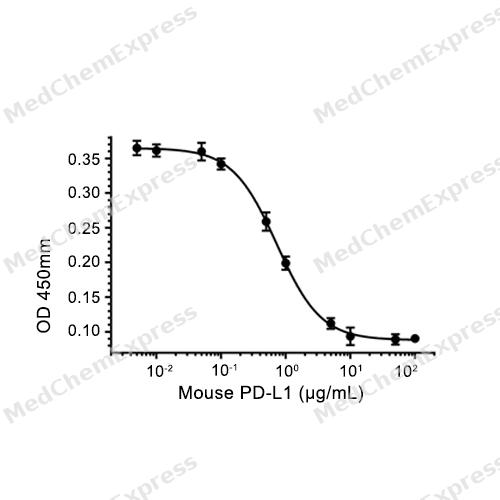

1.Measured by its ability to inhibit anti-CD3-induced proliferation of stimulated CTLL-2 mouse cytotoxic T cells. The ED50 this effect is 0.7284 μg/mL, corresponding to a specific activity is 1372.87 units/mg.
2.Measured by its binding ability in a functional ELISA.Immobilized PD1-His at 2 μg/mL (100 μL/well) can bind PD-L1 Protein, Mouse (HEK293, Fc), the EC50 is 200-750 ng/mL, the EC50 is ≤530 ng/mL.

MCE Validation Data

  • Purity - SDS-PAGE

    Purity - SDS-PAGE

    ≥ 95%, as determined by reducing SDS-PAGE.

  • Bioactivity - Cell-Based Assay

    Bioactivity - Cell-Based Assay

    Measured by its ability to inhibit anti-CD3-induced proliferation of stimulated CTLL-2 mouse cytotoxic T cells. The ED50 this effect is 0.7284 μg/mL, corresponding to a specific activity is 1372.87 units/mg.

Technical Parameters

  • Species Mouse
  • Source HEK293
  • Tag C-hFc
  • Accession

    Q9EP73 (F19-T238)

  • Gene ID
    60533  [NCBI]
  • Molecular Construction
    • N-term
    • PD-L1 (F19-T238)
      Accession # Q9EP73
    • hFc
    • C-term
  • Protein Length

    Extracellular Domain

  • Synonyms

    CD274; B7 Homolog 1; Prev. PDCD1LG1; B7-H; PD-L1; PDCD1 Ligand 1; B7H1; PDCD1L1; PDL1; HPD-L1; Programmed Cell Death 1 Ligand 1; Programmed Death Ligand 1; CD274 Antigen; ADMIO5; CD274 Molecule; B7-H1

  • AA Sequence

    FTITAPKDLYVVEYGSNVTMECRFPVERELDLLALVVYWEKEDEQVIQFVAGEEDLKPQHSNFRGRASLPKDQLLKGNAALQITDVKLQDAGVYCCIISYGGADYKRITLKVNAPYRKINQRISVDPATSEHELICQAEGYPEAEVIWTNSDHQPVSGKRSVTTSRTEGMLLNVTSSLRVNATANDVFYCTFWRSQPGQNHTAELIIPELPATHPPQNRT

  • Molecular Weight

    Approximately 60-90 kDa, based on SDS-PAGE under reducing conditions, due to the glycosylation.

  • Glycosylation

    Yes

  • Purity

    ≥ 95%, as determined by reducing SDS-PAGE.

Product Properties

Appearance

Lyophilized powder

Formulation

Lyophilized from a 0.22 μm filtered solution of 20 mM PB, 150 mM NaCl, pH 7.4.

Endotoxin Level

<1 EU/μg, determined by LAL method.

Reconstitution

It is not recommended to reconstitute to a concentration less than 100 μg/mL in ddH2O. For long term storage it is recommended to add a carrier protein (0.1% BSA, 5% HSA, 10% FBS or 5% Trehalose).

Storage & Stability

Stored at -20°C for 2 years from date of receipt. After reconstitution, it is stable at 4°C for 1 week or -20°C for longer (with carrier protein). It is recommended to freeze aliquots at -20°C or -80°C for extended storage.

Shipping

Room temperature in continental US; may vary elsewhere.

Calculators

Reconstitution Calculator

Volume (to add to vial) = Mass (in vial) ÷ Desired Reconstitution Concentration

Volume (to add to vial) Volume (to add to vial)
=
Mass (in vial) Mass (in vial)
÷
Desired Reconstitution Concentration Desired Reconstitution Concentration
Dilution Calculator

Concentration (start) × Volume (start) = Concentration (final) × Volume (final)

Concentration (start) Concentration (start)
×
Volume (start) Volume (start)
=
Concentration (final) Concentration (final)
×
Volume (final) Volume (final)
The Specific Activity Calculator Equation
  • Specific Activity (Unit/mg)
  • Biological Activity (ED50)

Specific Activity (Unit/mg) = 106 ÷ Biological Activity (ED50)

Specific Activity (Unit/mg) Specific Activity (Unit/mg)
Unit/mg
= 106 ÷
Biological Activity (ED50) Biological Activity (ED50)
106 ÷
ng/mL
