1. Protein Tyrosine Kinase/RTK Apoptosis
  2. FAK Pyk2 IGF-1R Insulin Receptor Apoptosis
  3. NVP-TAE 226

NVP-TAE 226 (TAE226) is a potent and ATP-competitive dual FAK and IGF-1R inhibitor with IC50s of 5.5 nM and 140 nM, respectively. NVP-TAE 226 (TAE226) also effectively inhibits Pyk2 and insulin receptor (InsR) with IC50s of 3.5 nM and 44 nM, respectively.

For research use only. We do not sell to patients.

NVP-TAE 226 Chemical Structure

NVP-TAE 226 Chemical Structure

CAS No. : 761437-28-9

Size Price Stock Quantity
Free Sample (0.1 - 0.5 mg)   Apply Now
Solid + Solvent
10 mM * 1 mL in DMSO
ready for reconstitution
USD 176 In-stock
Solution
10 mM * 1 mL in DMSO USD 176 In-stock
Solid
5 mg USD 160 In-stock
10 mg USD 238 In-stock
50 mg USD 898 In-stock
100 mg USD 1558 In-stock
200 mg   Get quote
500 mg   Get quote

* Please select Quantity before adding items.

This product is a controlled substance and not for sale in your territory.

Customer Review

Based on 11 publication(s) in Google Scholar

Top Publications Citing Use of Products

    NVP-TAE 226 purchased from MedChemExpress. Usage Cited in: Patent. US20170285005A1.

    TAE226 reduces FAK activation and stretch-induced MMP-10 and MMP-12 expression in cultured podocytes.

    NVP-TAE 226 purchased from MedChemExpress. Usage Cited in: Patent. US20150175695A1.

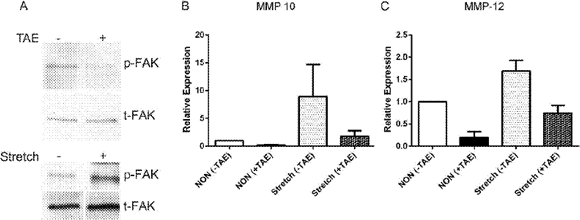

    The small molecule inhibitor for FAK, TAE226, reduces FAK activation and stretch-induced MMP-10 and MMP-12 expression in cultured podocytes. A) Podocytes are cultured on placental laminin in the presence or absence of TAE226 overnight. Extracts are prepared and analyzed by western blot for expression of pFAK397 and total FAK. FAK activation is also analyzed by western blot of podocyte extracts from stretched and non-stretched cells, demonstrating that biomechanical stretching directly activates
    • Biological Activity

    • Protocol

    • Purity & Documentation

    • References

    • Customer Review

    Description

    NVP-TAE 226 (TAE226) is a potent and ATP-competitive dual FAK and IGF-1R inhibitor with IC50s of 5.5 nM and 140 nM, respectively. NVP-TAE 226 (TAE226) also effectively inhibits Pyk2 and insulin receptor (InsR) with IC50s of 3.5 nM and 44 nM, respectively[1][2].

    IC50 & Target

    IC50: 5.5 nM (FAK), 3.5 nM (Pyk2), 140 nM (IGF-IR), 40 nM (InsR), 0.16 μM (c-Met), 0.36 μM (KDR), 0.48 μM (Flt3)[1]

    In Vitro

    NVP-TAE 226 (TAE226), a potent ATP-competitive inhibitor of several tyrosine protein kinases, in particular FAK and IGF-IR kinases. In a cell-based kinase assays, FAK, IGF-IR kinase, and IR kinase are inhibited with an IC50 range of 100 to 300 nM compared with the other kinases tested, which are >10-fold less sensitive. In culture, NVP-TAE 226 inhibits extracellular matrix-induced autophosphorylation of FAK (Tyr395). NVP-TAE 226 also inhibits IGF-I-induced phosphorylation of IGF-IR and activity of its downstream target genes such as MAPK and Akt. NVP-TAE 226 retards tumor cell growth as assessed by a cell viability assay and attenuates G2-M cell cycle progression associated with a decrease in cyclin B1 and phosphorylated cdc2 (Tyr15) protein expression. NVP-TAE 226 treatment inhibits tumor cell invasion by at least 50% compared with the control in an in vitro Matrigel invasion assay. Interestingly, TAE226 treatment of tumor cells containing wild-type p53 mainly exhibits G2-M arrest, whereas tumor cells bearing mutant p53 underwent apoptosis[1].

    MedChemExpress (MCE) has not independently confirmed the accuracy of these methods. They are for reference only.

    In Vivo

    Treatment with NVP-TAE 226 (TAE226) at 50 or 75 mg/kg extends the median survival of U87 xenograft animals by 6 and 7 days, respectively (P=0.084 and P=0.042, respectively, compared with vehicle-treated animals). However, NVP-TAE 226 treatment of LN229-engrafted animals significantly prolongs their median survival by 19 days (P<0.004 for both dosages, compared with vehicle-treated animals)[1].

    MedChemExpress (MCE) has not independently confirmed the accuracy of these methods. They are for reference only.

    Molecular Weight

    468.94

    Formula

    C23H25ClN6O3

    CAS No.
    Appearance

    Solid

    Color

    White to khaki

    SMILES

    O=C(C1=C(C=CC=C1)NC2=NC(NC3=C(C=C(C=C3)N4CCOCC4)OC)=NC=C2Cl)NC

    Shipping

    Room temperature in continental US; may vary elsewhere.

    Storage
    Powder -20°C 3 years
    4°C 2 years
    In solvent -80°C 2 years
    -20°C 1 year
    Solvent & Solubility
    In Vitro:

    DMSO : 11.11 mg/mL (23.69 mM; ultrasonic and warming and heat to 60°C; Hygroscopic DMSO has a significant impact on the solubility of product, please use newly opened DMSO)

    Preparing
    Stock Solutions
    Concentration Solvent Mass 1 mg 5 mg 10 mg
    1 mM 2.1325 mL 10.6623 mL 21.3247 mL
    5 mM 0.4265 mL 2.1325 mL 4.2649 mL
    View the Complete Stock Solution Preparation Table

    * Please refer to the solubility information to select the appropriate solvent. Once prepared, please aliquot and store the solution to prevent product inactivation from repeated freeze-thaw cycles.
    Storage method and period of stock solution: -80°C, 2 years; -20°C, 1 year. When stored at -80°C, please use it within 2 years. When stored at -20°C, please use it within 1 year.

    • Molarity Calculator

    • Dilution Calculator

    Mass (g) = Concentration (mol/L) × Volume (L) × Molecular Weight (g/mol)

    Mass
    =
    Concentration
    ×
    Volume
    ×
    Molecular Weight *

    Concentration (start) × Volume (start) = Concentration (final) × Volume (final)

    This equation is commonly abbreviated as: C1V1 = C2V2

    Concentration (start)

    C1

    ×
    Volume (start)

    V1

    =
    Concentration (final)

    C2

    ×
    Volume (final)

    V2

    In Vivo:

    Select the appropriate dissolution method based on your experimental animal and administration route.

    For the following dissolution methods, please ensure to first prepare a clear stock solution using an In Vitro approach and then sequentially add co-solvents:
    To ensure reliable experimental results, the clarified stock solution can be appropriately stored based on storage conditions. As for the working solution for in vivo experiments, it is recommended to prepare freshly and use it on the same day.
    The percentages shown for the solvents indicate their volumetric ratio in the final prepared solution. If precipitation or phase separation occurs during preparation, heat and/or sonication can be used to aid dissolution.

    • Protocol 1

      Add each solvent one by one:  10% DMSO    40% PEG300    5% Tween-80    45% Saline

      Solubility: 1.11 mg/mL (2.37 mM); Suspended solution; Need ultrasonic

      This protocol yields a suspended solution of 1.11 mg/mL. Suspended solution can be used for oral and intraperitoneal injection.

      Taking 1 mL working solution as an example, add 100 μL DMSO stock solution (11.1 mg/mL) to 400 μL PEG300, and mix evenly; then add 50 μL Tween-80 and mix evenly; then add 450 μL Saline to adjust the volume to 1 mL.

      Preparation of Saline: Dissolve 0.9 g sodium chloride in ddH₂O and dilute to 100 mL to obtain a clear Saline solution.
    • Protocol 2

      Add each solvent one by one:  10% DMSO    90% Corn Oil

      Solubility: 1.11 mg/mL (2.37 mM); Clear solution; Need ultrasonic

      This protocol yields a clear solution of 1.11 mg/mL. If the continuous dosing period exceeds half a month, please choose this protocol carefully.

      Taking 1 mL working solution as an example, add 100 μL DMSO stock solution (11.1 mg/mL) to 900 μL Corn oil, and mix evenly.

    In Vivo Dissolution Calculator
    Please enter the basic information of animal experiments:

    Dosage

    mg/kg

    Animal weight
    (per animal)

    g

    Dosing volume
    (per animal)

    μL

    Number of animals

    Recommended: Prepare an additional quantity of animals to account for potential losses during experiments.
    Please enter your animal formula composition:
    %
    DMSO +
    +
    %
    Tween-80 +
    %
    Saline
    Recommended: Keep the proportion of DMSO in working solution below 2% if your animal is weak.
    The co-solvents required include: DMSO, . All of co-solvents are available by MedChemExpress (MCE). , Tween 80. All of co-solvents are available by MedChemExpress (MCE).
    Calculation results:
    Working solution concentration: mg/mL
    Method for preparing stock solution: mg drug dissolved in μL  DMSO (Stock solution concentration: mg/mL).
    The concentration of the stock solution you require exceeds the measured solubility. The following solution is for reference only. If necessary, please contact MedChemExpress (MCE).
    Method for preparing in vivo working solution for animal experiments: Take μL DMSO stock solution, add μL . μL , mix evenly, next add μL Tween 80, mix evenly, then add μL Saline.
     If the continuous dosing period exceeds half a month, please choose this protocol carefully.
    Please ensure that the stock solution in the first step is dissolved to a clear state, and add co-solvents in sequence. You can use ultrasonic heating (ultrasonic cleaner, recommended frequency 20-40 kHz), vortexing, etc. to assist dissolution.
    Purity & Documentation

    Purity: 99.92%

    References
    Cell Assay
    [1]

    Glioma cell cultures are harvested with 0.05% trypsin and seeded in triplicate at 2×104 in 24-well culture plates for 24 h before drug treatment. Culture medium is used for mock treatment. Cells are harvested at the indicated day after treatment, and viable cells are counted using the Vi-cell viability analyzer. The antiproliferative activity of NVP-TAE 226 (ranging from 0.25 to 1 μM) on cells growing in culture is determined using a tetrazolium-based colorimetric MTT assay[1].

    MCE has not independently confirmed the accuracy of these methods. They are for reference only.

    Animal Administration
    [1]

    Mice[1]
    Male nude mice used for this study are 6 to 8 weeks old. In DMEM/F12 serum-free media (5 μL), 5×105 of U87 cells and 1×106 of LN229 cells per mouse are implanted intracranially through a guide-screw system. Four days after injection of the tumor cells, mice are randomized into three groups for each cell line (n=6). Mice in group 1 are treated with 50 mg/kg NVP-TAE 226 in 200 μL of 0.5% methylcellulose, via an oral gavage. The mice in group 2 receive 75 mg/kg NVP-TAE 226 in 200 μL of 0.5% methylcellulose. The mice in group 3 the same vehicle used for administration of NVP-TAE 226 (control). Treatment frequency is once a day for 5 days and off for 2 days, for a duration of 4 weeks. Mice are monitored daily. Mice are euthanized when they are moribund, and the whole brain is extracted for rapid freezing in liquid nitrogen and storage at -70°C.

    MCE has not independently confirmed the accuracy of these methods. They are for reference only.

    References

    Complete Stock Solution Preparation Table

    * Please refer to the solubility information to select the appropriate solvent. Once prepared, please aliquot and store the solution to prevent product inactivation from repeated freeze-thaw cycles.
    Storage method and period of stock solution: -80°C, 2 years; -20°C, 1 year. When stored at -80°C, please use it within 2 years. When stored at -20°C, please use it within 1 year.

    Optional Solvent Concentration Solvent Mass 1 mg 5 mg 10 mg 25 mg
    DMSO 1 mM 2.1325 mL 10.6623 mL 21.3247 mL 53.3117 mL
    5 mM 0.4265 mL 2.1325 mL 4.2649 mL 10.6623 mL
    10 mM 0.2132 mL 1.0662 mL 2.1325 mL 5.3312 mL
    15 mM 0.1422 mL 0.7108 mL 1.4216 mL 3.5541 mL
    20 mM 0.1066 mL 0.5331 mL 1.0662 mL 2.6656 mL
