CY7-SE (Synonyms: Sulfo-Cyanine7 Succinimidyl Ester)

Cat. No.: HY-D0824: FAQs
Data Sheet SDS COA Handling Instructions

Molarity Calculator

CY7-SE is a CY dye. CY, short for Cyanine, is a compound consisting of two nitrogen atoms connected by an odd number of methyl units. Cyanine compounds have the characteristics of long wavelength, adjustable absorption and emission, high extinction coefficient, good water solubility and relatively simple synthesis. CY dyes are of en used for the labeling of proteins, antibodies and small molecular compounds. For the labeling of protein antibodies, the combination can be completed through a simple mixing reaction. Below, we introduce the labeling method of protein antibody labeling, which has certain reference significance.

For research use only. We do not sell to patients.

CY7-SE Chemical Structure

CAS No. : 477908-53-5

Size	Price	Stock
5 mg	USD 280	Ask For Quote & Lead Time

* Please select Quantity before adding items.

This product is a controlled substance and not for sale in your territory.

Other In-stock Forms of CY7-SE:

Other Forms of CY7-SE:

CY7-SE triethylamine In-stock

3 Publications Citing Use of MCE CY7-SE

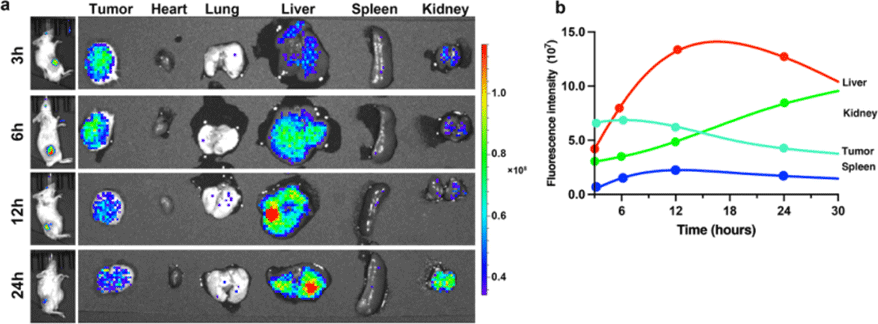

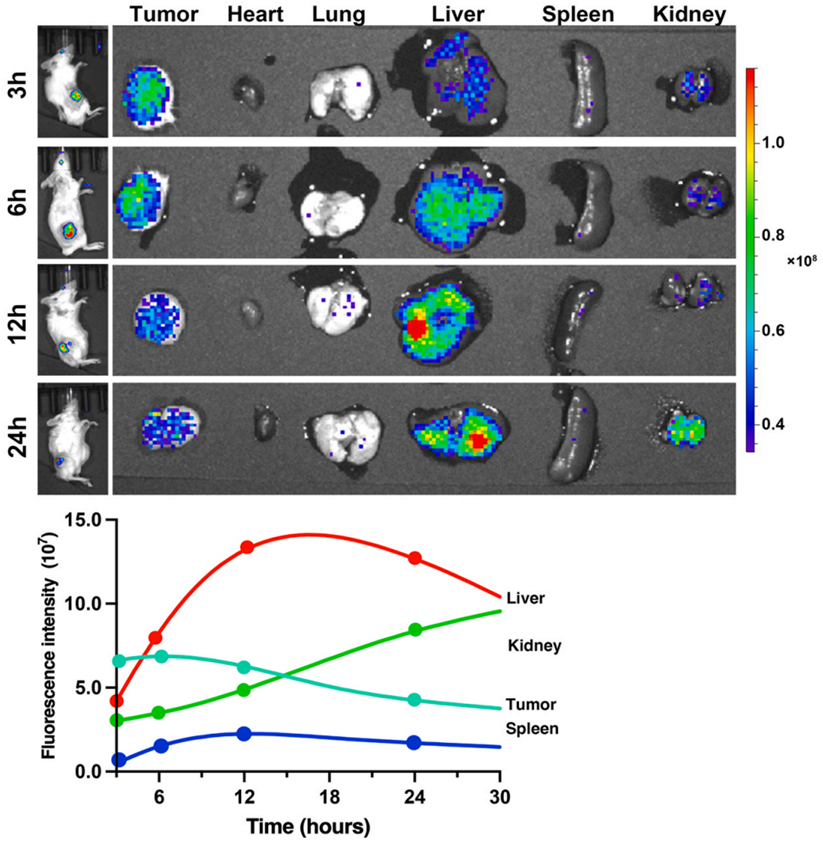

: CY7-SE purchased from MedChemExpress. Usage Cited in: Nano Today. 47 (2022) 101675; Bio-distribution of the Cy7 SE-labeled PFD Liposome at indicated time points after tail vein injection. Tumors and major organs are dissected, and fluorescence intensities in the major drug metabolizing organs are quantified.

Featured Recommendations

•Related Small Molecules:

•Related Proteins:

Biological Activity
Purity & Documentation
References
Customer Review

Description

CY7-SE is a CY dye. CY, short for Cyanine, is a compound consisting of two nitrogen atoms connected by an odd number of methyl units. Cyanine compounds have the characteristics of long wavelength, adjustable absorption and emission, high extinction coefficient, good water solubility and relatively simple synthesis^[1]. CY dyes are of en used for the labeling of proteins, antibodies and small molecular compounds. For the labeling of protein antibodies, the combination can be completed through a simple mixing reaction. Below, we introduce the labeling method of protein antibody labeling, which has certain reference significance^[2].

In Vitro

Protocol
1.Protein Preparetion
1) In order to obtain the best labeling effect, please prepare the protein (antibody) concentration as 2 mg/mL.
2) The pH value of protein solution shall be 8.5±0.5. If the pH is lower than 8.0, 1 M sodium bicarbonate shall be used for adjustment.
3) If the protein concentration is lower than 2 mg/mL, the labeling efficiency will be greatly reduced. In order to obtain the best labeling efficiency, it is recommended that the final protein concentration range is 2-10 mg/mL.
4) The protein must be in the buffer without primary amine (such as Tris or glycine) and ammonium ion, otherwise the labeling efficiency will be affected.
2.Dye Preparation (Example for CY3-NHS ester)
Add anhydrous DMSO into the vial of CY3-NHS ester to make a 10 mM stock solution. Mix well by pipetting or vortex.
3.Calculation of dye dosage
The amount of CY3-NHS ester required for reaction depends on the amount of protein to be labeled, and the optimal molar ratio of CY3-NHS ester to protein is about 10.
Example: assuming the required marker protein is 500 μL 2 mg/mL IgG (MW=150,000), use 100 μL DMSO dissolve 1 mg CY3-NHS ester, the required CY3-NHS ester volume is 5.05 μL, and the detailed calculation process is as follows:
1) mmol (IgG) = mg/mL (IgG) ×mL (IgG) / MW (IgG) =2 mg/mL × 0.5 mL / 150,000 mg/mmol= 6.7×10-6 mmol
2) mmol (CY3-NHS ester) = mmol (IgG) × 10 = 6.7×10-6 mmol×10 = 6.7 × 10-5 mmol
3) μL (CY3-NHS ester) = mmol (CY3-NHS ester) ×MW (CY3-NHS ester) / mg/μL (CY3-NHS ester) = 6.7 ×10-5 mmol ×753.88 mg/mmol / 0.01 mg/μL = 5.05 μL (CY3-NHS ester)
4.Run conjugation reaction
1) A good volume of freshly prepared 10 mg/mL CY3-NHS ester is slowly added to 0.5 mL protein sample
In solution, gently shake to mix, then centrifuge briefly to collect the sample at the bottom of the reaction tube. Don'tmix well to prevent protein samples from denaturation and inactivation.
2) The reaction tubules were placed in a dark place and incubated gently at room temperature for 60 minutes at intervals.For 10-15 minutes, gently reverse the reaction tubules several times to fully mix the two reactants and raise the bar efficiency.
5.Purify the conjugation
The following protocol is an example of dye-protein conjugate purification by using a SepHadex G-25 column.
1) Prepare SepHadex G-25 column according to the manufacture instruction.
2) Load the reaction mixture (From "Run conjugation reaction") to the top of the SepHadex G-25 column.
3) Add PBS (pH 7.2-7.4) as soon as the sample runs just below the top resin surface.
4) Add more PBS (pH 7.2-7.4) to the desired sample to complete the column purification. Combine the fractions that contain the desired dye-protein conjugate.

MedChemExpress (MCE) has not independently confirmed the accuracy of these methods. They are for reference only.

Molecular Weight

779.92

Formula

C₃₉H₄₅N₃O₁₀S₂

CAS No.

477908-53-5

Appearance

Solid

Color

Light brown to black

Emission (Em)

770

Excitation (Ex)

740

SMILES

CC(/C(N1CCCCCC(ON2C(CCC2=O)=O)=O)=C\C=C\C=C\C=C\C3=[N+](CC)C(C=CC(S(=O)([O-])=O)=C4)=C4C3(C)C)(C)C5=C1C=CC(S(=O)(O)=O)=C5

Shipping

Room temperature in continental US; may vary elsewhere.

Storage

-20°C, sealed storage, away from moisture and light

*In solvent : -80°C, 6 months; -20°C, 1 month (sealed storage, away from moisture and light)

Solvent & Solubility

In Vitro:

DMSO : 125 mg/mL (160.27 mM; Need ultrasonic; Hygroscopic DMSO has a significant impact on the solubility of product, please use newly opened DMSO)

Preparing
Stock Solutions

Concentration Solvent Mass	1 mg	5 mg	10 mg

1 mM	1.2822 mL	6.4109 mL	12.8218 mL
5 mM	0.2564 mL	1.2822 mL	2.5644 mL
10 mM	0.1282 mL	0.6411 mL	1.2822 mL

View the Complete Stock Solution Preparation Table

* Please refer to the solubility information to select the appropriate solvent. Once prepared, please aliquot and store the solution to prevent product inactivation from repeated freeze-thaw cycles.
Storage method and period of stock solution: -80°C, 6 months; -20°C, 1 month (sealed storage, away from moisture and light). When stored at -80°C, please use it within 6 months. When stored at -20°C, please use it within 1 month.

Molarity Calculator
Dilution Calculator

Mass (g) = Concentration (mol/L) × Volume (L) × Molecular Weight (g/mol)

Concentration _(start) × Volume _(start) = Concentration _(final) × Volume _(final)

This equation is commonly abbreviated as: C₁V₁ = C₂V₂

In Vivo:

Select the appropriate dissolution method based on your experimental animal and administration route.

For the following dissolution methods, please ensure to first prepare a clear stock solution using an In Vitro approach and then sequentially add co-solvents:
To ensure reliable experimental results, the clarified stock solution can be appropriately stored based on storage conditions. As for the working solution for in vivo experiments, it is recommended to prepare freshly and use it on the same day.
The percentages shown for the solvents indicate their volumetric ratio in the final prepared solution. If precipitation or phase separation occurs during preparation, heat and/or sonication can be used to aid dissolution.

Protocol 1

Add each solvent one by one: 10% DMSO 40% PEG300 5% Tween-80 45% Saline
Solubility: ≥ 2.5 mg/mL (3.21 mM); Clear solution

This protocol yields a clear solution of ≥ 2.5 mg/mL (saturation unknown).
Taking 1 mL working solution as an example, add 100 μL DMSO stock solution (25.0 mg/mL) to 400 μL PEG300, and mix evenly; then add 50 μL Tween-80 and mix evenly; then add 450 μL Saline to adjust the volume to 1 mL.
Preparation of Saline: Dissolve 0.9 g sodium chloride in ddH₂O and dilute to 100 mL to obtain a clear Saline solution.
Protocol 2

Add each solvent one by one: 10% DMSO 90% (20% SBE-β-CD in Saline)
Solubility: ≥ 2.5 mg/mL (3.21 mM); Clear solution

This protocol yields a clear solution of ≥ 2.5 mg/mL (saturation unknown).
Taking 1 mL working solution as an example, add 100 μL DMSO stock solution (25.0 mg/mL) to 900 μL 20% SBE-β-CD in Saline, and mix evenly.
Preparation of 20% SBE-β-CD in Saline (4°C, storage for one week): 2 g SBE-β-CD powder is dissolved in 10 mL Saline, completely dissolve until clear.

In Vivo Dissolution Calculator

Please enter the basic information of animal experiments:

Dosage

mg/kg

Animal weight
(per animal)

Dosing volume
(per animal)

μL

Number of animals

Recommended: Prepare an additional quantity of animals to account for potential losses during experiments.

Please enter your animal formula composition:

DMSO +

Tween-80 +

Saline

Recommended: Keep the proportion of DMSO in working solution below 2% if your animal is weak.

The co-solvents required include: DMSO, . All of co-solvents are available by MedChemExpress (MCE). , Tween 80. All of co-solvents are available by MedChemExpress (MCE).

Calculation results:

Working solution concentration: mg/mL

Method for preparing stock solution: mg drug dissolved in μL DMSO (Stock solution concentration: mg/mL).

*In solvent : -80°C, 6 months; -20°C, 1 month (sealed storage, away from moisture and light)

The concentration of the stock solution you require exceeds the measured solubility. The following solution is for reference only. If necessary, please contact MedChemExpress (MCE).

Method for preparing in vivo working solution for animal experiments: Take μL DMSO stock solution, add μL . μL , mix evenly, next add μL Tween 80, mix evenly, then add μL Saline.

If the continuous dosing period exceeds half a month, please choose this protocol carefully.

Please ensure that the stock solution in the first step is dissolved to a clear state, and add co-solvents in sequence. You can use ultrasonic heating (ultrasonic cleaner, recommended frequency 20-40 kHz), vortexing, etc. to assist dissolution.

Purity & Documentation

Purity: ≥98.0%

Select Batch:

Data Sheet (280 KB) SDS (393 KB)

COA (254 KB) HNMR (298 KB) MS (171 KB)

Handling Instructions (2659 KB)

References

[1]. Ptaszek M. Rational design of fluorophores for in vivo applications. Prog Mol Biol Transl Sci. 2013;113:59-108. [Content Brief]

[2]. Shindy, H. A. (2017). Fundamentals in the chemistry of cyanine dyes: A review. Dyes and Pigments, 145, 505–513. doi:10.1016/j.dyepig.2017.06.029

Complete Stock Solution Preparation Table

Optional Solvent	Concentration Solvent Mass	1 mg	5 mg	10 mg	25 mg

DMSO	1 mM	1.2822 mL	6.4109 mL	12.8218 mL	32.0546 mL
	5 mM	0.2564 mL	1.2822 mL	2.5644 mL	6.4109 mL
	10 mM	0.1282 mL	0.6411 mL	1.2822 mL	3.2055 mL
	15 mM	0.0855 mL	0.4274 mL	0.8548 mL	2.1370 mL
	20 mM	0.0641 mL	0.3205 mL	0.6411 mL	1.6027 mL
	25 mM	0.0513 mL	0.2564 mL	0.5129 mL	1.2822 mL
	30 mM	0.0427 mL	0.2137 mL	0.4274 mL	1.0685 mL
	40 mM	0.0321 mL	0.1603 mL	0.3205 mL	0.8014 mL
	50 mM	0.0256 mL	0.1282 mL	0.2564 mL	0.6411 mL
	60 mM	0.0214 mL	0.1068 mL	0.2137 mL	0.5342 mL
	80 mM	0.0160 mL	0.0801 mL	0.1603 mL	0.4007 mL
	100 mM	0.0128 mL	0.0641 mL	0.1282 mL	0.3205 mL
