1. GPCR/G Protein
  2. Adenylate Cyclase
  3. SQ22536

SQ22536 is an effective adenylate cyclase (AC) inhibitor.

For research use only. We do not sell to patients.

SQ22536 Chemical Structure

SQ22536 Chemical Structure

CAS No. : 17318-31-9

Size Price Stock Quantity
Solid + Solvent
10 mM * 1 mL in DMSO
ready for reconstitution
USD 66 In-stock
Solution
10 mM * 1 mL in DMSO USD 66 In-stock
Solid
5 mg USD 60 In-stock
10 mg USD 90 In-stock
25 mg USD 200 In-stock
50 mg USD 350 In-stock
100 mg USD 600 In-stock
200 mg USD 900 In-stock
500 mg   Get quote
1 g   Get quote

* Please select Quantity before adding items.

This product is a controlled substance and not for sale in your territory.

Customer Review

Based on 26 publication(s) in Google Scholar

Top Publications Citing Use of Products

    SQ22536 purchased from MedChemExpress. Usage Cited in: Front Oncol. 2020 Mar 31;10:404.  [Abstract]

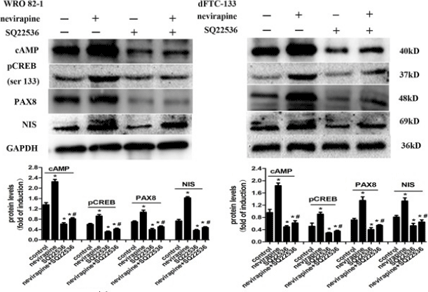

    The expressions of cAMP, pCREB, PAX8, and NIS in WRO 82-1 and dFTC-133 cells treated with or without 200 μM Nevirapine and SQ22536 (10 μM) for 72 h are determined by western blot and analyzed quantitatively.

    SQ22536 purchased from MedChemExpress. Usage Cited in: Cell Death Dis. 2020 May 26;11(5):394.  [Abstract]

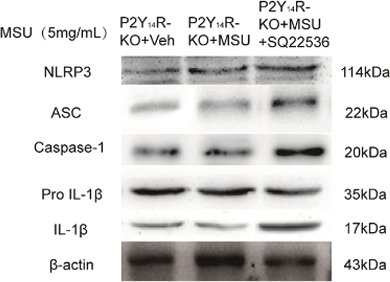

    Western blotting shows that the activation of synovial NLRP3 inflammasome signaling is markedly provoked by decreased cAMP in SQ22536-treated P2Y14R-KO rats.

    SQ22536 purchased from MedChemExpress. Usage Cited in: Cell Death Dis. 2020 May 26;11(5):394.  [Abstract]

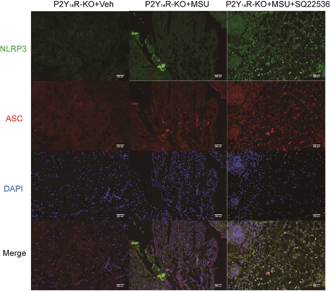

    SQ22536 treatment enhances the colocalization intensity of synovial NLRP3 and ASC in MSU-stimulated P2Y14R-KO rats in immunofluorescence staining.

    SQ22536 purchased from MedChemExpress. Usage Cited in: J Cell Biochem. 2019 Jan;120(1):321-331.  [Abstract]

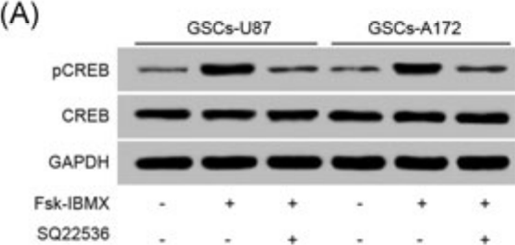

    The combination of Fsk and IBMX (Fsk-IBMX) inhibits the expression of cAMP related protein. The results of Western blot in glioma stem cells (GSCs).
    • Biological Activity

    • Protocol

    • Purity & Documentation

    • References

    • Customer Review

    Description

    SQ22536 is an effective adenylate cyclase (AC) inhibitor.

    IC50 & Target

    adenylate cyclase (AC)[1]

    In Vitro

    SQ22536 (SQ22,536) effectively inhibits the effect of forskolin with respective IC50 values of 5 μM.
    Preincubation with graded concentrations of SQ22536 reveals that both SQ22536 effectively inhibits PACAP-induced reporter gene activation with approximate IC50 value of 5 μM.
    SQ22536 more potently inhibits forskolin-induced Elk activation (IC50=10 μM) than 8-Br-cAMP-induced Elk activation (IC50=170 μM).
    Most notably, there are substantial differences in the reported potencies of SQ22536 to inhibit the activities of recombinant AC5 and AC6, with respective IC50 values of 2 μM and 360 μM. At a greater concentration (500 μM), SQ22536 significantly inhibits neurite elongation due to either forskolin or 8-Br-cAMP[1].

    MedChemExpress (MCE) has not independently confirmed the accuracy of these methods. They are for reference only.

    Molecular Weight

    205.22

    Formula

    C9H11N5O

    CAS No.
    Appearance

    Solid

    Color

    White to off-white

    SMILES

    NC1=C2N=CN(C3OCCC3)C2=NC=N1

    Shipping

    Room temperature in continental US; may vary elsewhere.

    Storage
    Powder -20°C 3 years
    4°C 2 years
    In solvent -80°C 2 years
    -20°C 1 year
    Solvent & Solubility
    In Vitro:

    DMSO : 100 mg/mL (487.28 mM; Need ultrasonic; Hygroscopic DMSO has a significant impact on the solubility of product, please use newly opened DMSO)

    H2O : 55 mg/mL (268.01 mM; Need ultrasonic)

    Preparing
    Stock Solutions
    Concentration Solvent Mass 1 mg 5 mg 10 mg
    1 mM 4.8728 mL 24.3641 mL 48.7282 mL
    5 mM 0.9746 mL 4.8728 mL 9.7456 mL
    View the Complete Stock Solution Preparation Table

    * Please refer to the solubility information to select the appropriate solvent. Once prepared, please aliquot and store the solution to prevent product inactivation from repeated freeze-thaw cycles.
    Storage method and period of stock solution: -80°C, 2 years; -20°C, 1 year. When stored at -80°C, please use it within 2 years. When stored at -20°C, please use it within 1 year.

    * Note: If you choose water as the stock solution, please dilute it to the working solution, then filter and sterilize it with a 0.22 μm filter before use.

    • Molarity Calculator

    • Dilution Calculator

    Mass (g) = Concentration (mol/L) × Volume (L) × Molecular Weight (g/mol)

    Mass
    =
    Concentration
    ×
    Volume
    ×
    Molecular Weight *

    Concentration (start) × Volume (start) = Concentration (final) × Volume (final)

    This equation is commonly abbreviated as: C1V1 = C2V2

    Concentration (start)

    C1

    ×
    Volume (start)

    V1

    =
    Concentration (final)

    C2

    ×
    Volume (final)

    V2

    In Vivo:

    Select the appropriate dissolution method based on your experimental animal and administration route.

    For the following dissolution methods, please ensure to first prepare a clear stock solution using an In Vitro approach and then sequentially add co-solvents:
    To ensure reliable experimental results, the clarified stock solution can be appropriately stored based on storage conditions. As for the working solution for in vivo experiments, it is recommended to prepare freshly and use it on the same day.
    The percentages shown for the solvents indicate their volumetric ratio in the final prepared solution. If precipitation or phase separation occurs during preparation, heat and/or sonication can be used to aid dissolution.

    • Protocol 1

      Add each solvent one by one:  10% DMSO    40% PEG300    5% Tween-80    45% Saline

      Solubility: ≥ 2.5 mg/mL (12.18 mM); Clear solution

      This protocol yields a clear solution of ≥ 2.5 mg/mL (saturation unknown).

      Taking 1 mL working solution as an example, add 100 μL DMSO stock solution (25.0 mg/mL) to 400 μL PEG300, and mix evenly; then add 50 μL Tween-80 and mix evenly; then add 450 μL Saline to adjust the volume to 1 mL.

      Preparation of Saline: Dissolve 0.9 g sodium chloride in ddH₂O and dilute to 100 mL to obtain a clear Saline solution.
    • Protocol 2

      Add each solvent one by one:  10% DMSO    90% (20% SBE-β-CD in Saline)

      Solubility: ≥ 2.5 mg/mL (12.18 mM); Clear solution

      This protocol yields a clear solution of ≥ 2.5 mg/mL (saturation unknown).

      Taking 1 mL working solution as an example, add 100 μL DMSO stock solution (25.0 mg/mL) to 900 μL 20% SBE-β-CD in Saline, and mix evenly.

      Preparation of 20% SBE-β-CD in Saline (4°C, storage for one week): 2 g SBE-β-CD powder is dissolved in 10 mL Saline, completely dissolve until clear.

    For the following dissolution methods, please prepare the working solution directly. It is recommended to prepare fresh solutions and use them promptly within a short period of time.
    The percentages shown for the solvents indicate their volumetric ratio in the final prepared solution. If precipitation or phase separation occurs during preparation, heat and/or sonication can be used to aid dissolution.

    • Protocol 1

      Add each solvent one by one:  PBS

      Solubility: 25 mg/mL (121.82 mM); Clear solution; Need ultrasonic

    In Vivo Dissolution Calculator
    Please enter the basic information of animal experiments:

    Dosage

    mg/kg

    Animal weight
    (per animal)

    g

    Dosing volume
    (per animal)

    μL

    Number of animals

    Recommended: Prepare an additional quantity of animals to account for potential losses during experiments.
    Calculation results:
    Working solution concentration: mg/mL
    This product has good water solubility, please refer to the measured solubility data in water/PBS/Saline for details.
    The concentration of the stock solution you require exceeds the measured solubility. The following solution is for reference only.If necessary, please contact MedChemExpress (MCE).
    Purity & Documentation
    References
    Cell Assay
    [1]

    HEK293 CRE-luc2P GloResponse luciferase reporter cells are transduced with retroviral vectors expressing rat PAC1hop receptors. Individual cell lines are obtained by limiting dilution cloning, and a clonal PAC1-expressing line is propagated and used for CRE luciferase assays. In brief, HEK293 CRE-luc2P cells are plated in 96-well plates (10,000 cells in 80 μL media per well) in assay media (DMEM supplemented with 1% fetal bovine serum). One day after plating, cells are treated with AC inhibitors (10 μL in assay media/well) for 30 minutes, followed by agonists (10 μL in assay media/well), and are incubated for 4 hours. Luciferase activity is determined after the addition of 100 μL/well Bright-Glo Luciferase Assay Reagent. Luminescence (RLU) is measured in a Victor3 microtiter plate reader after 2 minutes of agitation at room temperature. Cyclic AMP is measured in NS-1 cells. In brief, NS-1 cells are seeded and grown overnight in 96-well plates. The next day, cells are pretreated for 20 minutes in media containing the phosphodiesterase inhibitor 3-isobutyl-1-methylxanthine (0.5 mM) with or without SQ22536. After pretreatment with inhibitors, cells are stimulated with agonists, added as 10× solutions, for an additional 20 minutes. Intracellular cAMP is then assayed using the cAMP Biotrak enzyme immunoassay kit for measurement of nonacetylated cAMP[1].

    MCE has not independently confirmed the accuracy of these methods. They are for reference only.

    References

    Complete Stock Solution Preparation Table

    * Please refer to the solubility information to select the appropriate solvent. Once prepared, please aliquot and store the solution to prevent product inactivation from repeated freeze-thaw cycles.
    Storage method and period of stock solution: -80°C, 2 years; -20°C, 1 year. When stored at -80°C, please use it within 2 years. When stored at -20°C, please use it within 1 year.

    Optional Solvent Concentration Solvent Mass 1 mg 5 mg 10 mg 25 mg
    H2O / DMSO 1 mM 4.8728 mL 24.3641 mL 48.7282 mL 121.8205 mL
    5 mM 0.9746 mL 4.8728 mL 9.7456 mL 24.3641 mL
    10 mM 0.4873 mL 2.4364 mL 4.8728 mL 12.1820 mL
    15 mM 0.3249 mL 1.6243 mL 3.2485 mL 8.1214 mL
    20 mM 0.2436 mL 1.2182 mL 2.4364 mL 6.0910 mL
    25 mM 0.1949 mL 0.9746 mL 1.9491 mL 4.8728 mL
    30 mM 0.1624 mL 0.8121 mL 1.6243 mL 4.0607 mL
    40 mM 0.1218 mL 0.6091 mL 1.2182 mL 3.0455 mL
    50 mM 0.0975 mL 0.4873 mL 0.9746 mL 2.4364 mL
    60 mM 0.0812 mL 0.4061 mL 0.8121 mL 2.0303 mL
    80 mM 0.0609 mL 0.3046 mL 0.6091 mL 1.5228 mL
    100 mM 0.0487 mL 0.2436 mL 0.4873 mL 1.2182 mL

    * Note: If you choose water as the stock solution, please dilute it to the working solution, then filter and sterilize it with a 0.22 μm filter before use.

    • No file chosen (Maximum size is: 1024 Kb)
    • If you have published this work, please enter the PubMed ID.
    • Your name will appear on the site.

    SQ22536 Related Classifications

    Help & FAQs
    • Do most proteins show cross-species activity?

      Species cross-reactivity must be investigated individually for each product. Many human cytokines will produce a nice response in mouse cell lines, and many mouse proteins will show activity on human cells. Other proteins may have a lower specific activity when used in the opposite species.
