Mag-Fluo-4 AM
Based on 3 publication(s) in Google Scholar
Mag-Fluo-4 AM, an analog of Fluo-4 AM (HY-101896), is an intracellular Mg2+ (Kd = 4.7 mM) indicator and a Ca2+ (Kd = 22 μM) indicator. Mag-Fluo-4 AM suitable for monitoring high concentrations and rapidly changing Ca2+ signals, and changes in intracellular Mg2+ homeostasis (Ex/Em = 496/525 nm).
For research use only. We do not sell to patients.
- Purity: 96%
- CAS No.: 1097709-31-3
- Formula: C37H33F2NO18
- Molecular Weight:817.65
-
Storage:
-20°C, protect from light
* In solvent : -80°C, 6 months; -20°C, 1 month (protect from light)
Publications Citing Use of MedChemExpress (MCE) Mag-Fluo-4 AM
More-
Cell Imaging/Staining
-
Flow Cytometry
Biological Activity
Guide (The following is our recommended protocol. This protocol only provides guidance and should be modified according to your specific needs).
1. Preparation of Mag-Fluo-4 AM working solution
1.1 Preparation of stock solution
Dissolve Mag-Fluo-4 AM in anhydrous DMSO to prepare a 10 mM stock solution.
Note: It is recommended to aliquot the Mag-Fluo-4 AM stock solution and store at -20°C or -80°C, protected from light.
1.2 Preparation of working solution
Dilute the stock solution with pre-warmed HBSS to prepare a 1-10 μM Mag-Fluo-4 AM working solution.
Note: Please adjust the concentration of the Mag-Fluo-4 AM working solution according to actual conditions and prepare fresh before use.
2. Cell staining (suspension cells)
2.1 Collect cells by centrifugation, wash twice with PBS for 5 minutes each time. Adjust the cell density to 1×106/mL
2.2 Add 1 mL Mag-Fluo-4 AM working solution and incubate at room temperature for 5-30 minutes.
2.3 Centrifuge at 400 g for 3-4 minutes and discard the supernatant.
2.4 Wash the cells twice with PBS for 5 minutes each time.
2.5 Resuspend the cells in 1 mL HBSS, then observe using a fluorescence microscope or flow cytometer.
3. Cell staining (adherent cells)
3.1 Culture adherent cells on sterile coverslips.
3.2 Remove the coverslips from the culture medium and aspirate excess medium.
3.3 Add 100 μL staining working solution, gently shake to ensure complete coverage of the cells, and incubate for 5-30 minutes.
3.4 Remove the staining working solution and wash with culture medium 2-3 times for 5 minutes each time, then observe using a fluorescence microscope.
MedChemExpress (MCE) has not independently confirmed the accuracy of these methods. They are for reference only.
515
475
Chemical Information
-
CAS No. 1097709-31-3
-
Appearance Solid
-
Molecular Weight 817.65
-
Formula C37H33F2NO18
-
Color Yellow to orange
-
SMILES
O=C1C(F)=CC2=C(C3=CC=C(N(CC(OCOC(C)=O)=O)CC(OCOC(C)=O)=O)C(OCC(OCOC(C)=O)=O)=C3)C4=C(C=C(OCOC(C)=O)C(F)=C4)OC2=C1
-
Shipping
Room temperature in continental US; may vary elsewhere.
-
Storage
-20°C, protect from light
* In solvent : -80°C, 6 months; -20°C, 1 month (protect from light)
Publications (3)
-
Journal Impact Factor
-
Most Recent
-
Nat Microbiol
Mycobacterium tuberculosis-derived linoleic acid increases regulatory T cell function to promote bacterial survival within macrophages. [Abstract]2025 Nov;10(11):2949-2965. PMID: 41073667 -
Toxicology
Cadmium induced mouse spermatogonia apoptosis via mitochondrial calcium overload mediated by IP3R-MCU signal pathway. [Abstract]2023 Mar 1:486:153448. PMID: 36731763
Mag-Fluo-4 AM purchased from MedChemExpress. Usage Cited in: Toxicology. 2023 Mar 1:486:153448. [Abstract]

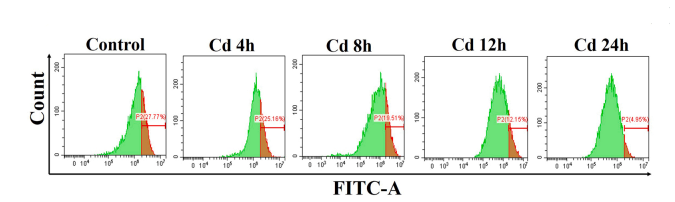

[Ca2+]er was determined by the Flow cytometry method using Mag-fluo-4 AM as a calcium indicator.
-
Mag-Fluo-4 AM purchased from MedChemExpress. Usage Cited in: bioRxiv. 2025 Dec 8.

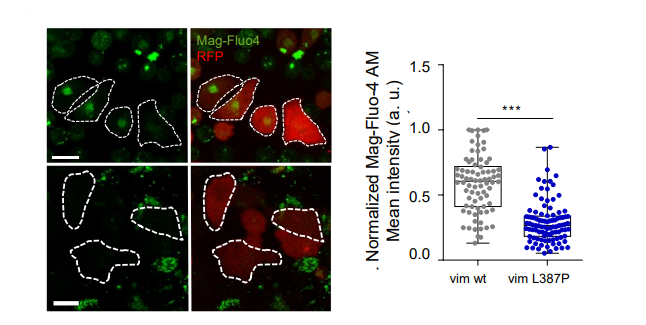

SW13/cl.2 cells transfected with RFP//vimentin wt or L387P were cultured in calcium- and magnesium-free HBSS medium containing 1 μM Mag-Fluo-4 AM for 10 minutes, and then excited with a 488 nm laser to detect Mag-Fluo-4 AM fluorescence.
Purity & Documentation
-
Data Sheet (277 KB)
-
SDS (252 KB)
- English - EN (252 KB)
- Français - FR (252 KB)
- Deutsch - DE (252 KB)
- Norwegian - NO (252 KB)
- Español - ES (252 KB)
- Swedish - SV (252 KB)
- Italian - IT (252 KB)
- Korean - KR (252 KB)
- Portuguese - PT (252 KB)
-
Handling Instructions (2659 KB)
References
[1]. Rossi AM, et al. Reliable measurement of free Ca2+ concentrations in the ER lumen using Mag-Fluo-4. Cell Calcium. 2020 May;87:102188. [Content Brief]
[2]. Gee KR, et al. Chemical and physiological characterization of fluo-4 Ca(2+)-indicator dyes. Cell Calcium. 2000 Feb;27(2):97-106. [Content Brief]
Calculators
Concentration (start) × Volume (start) = Concentration (final) × Volume (final)
